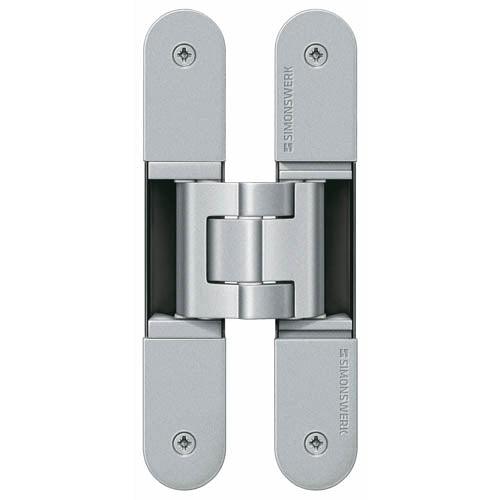

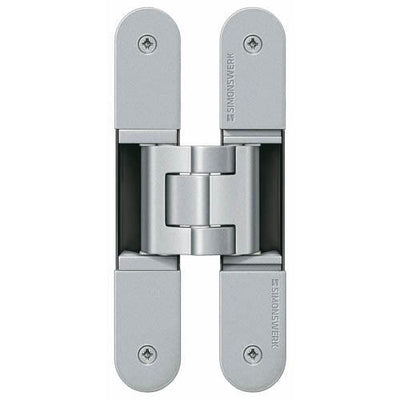

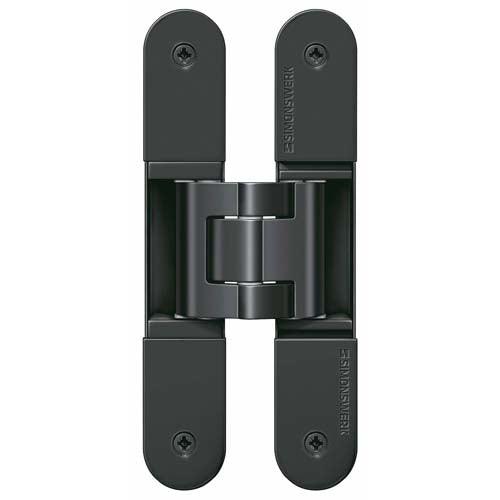

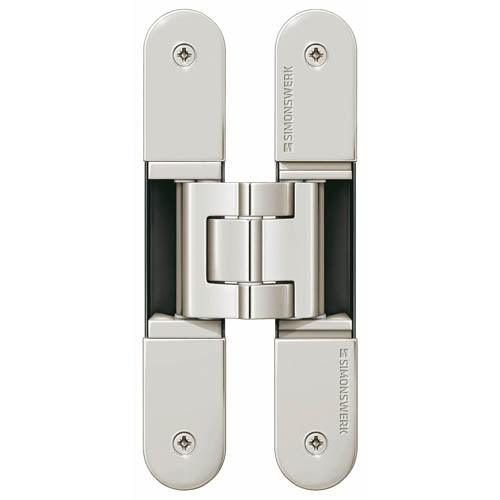

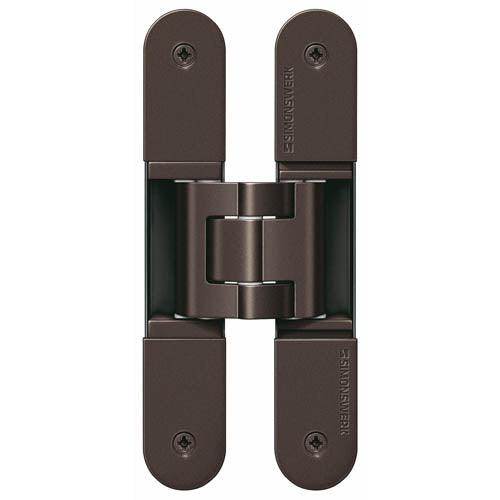

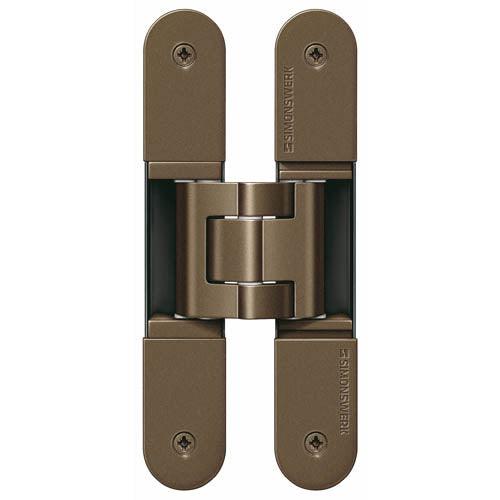

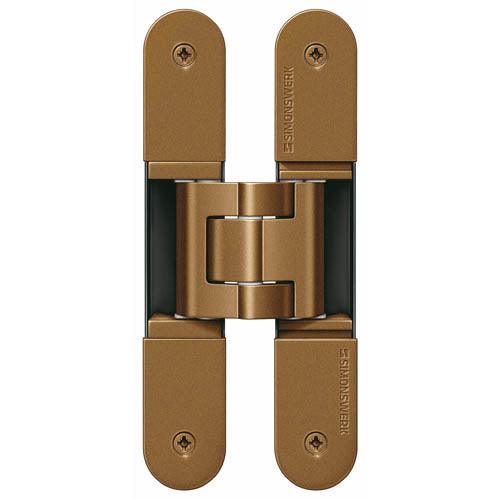

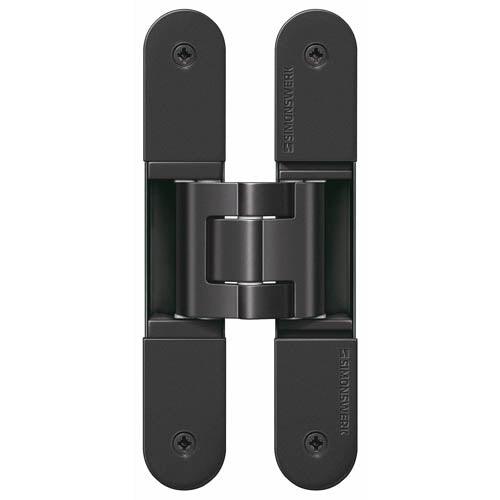

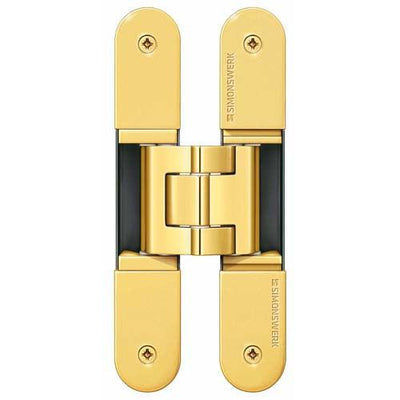

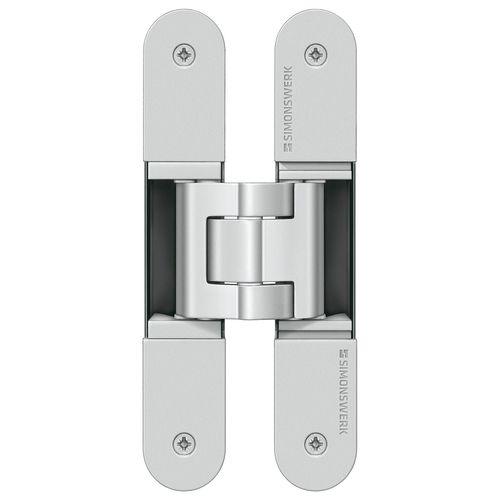

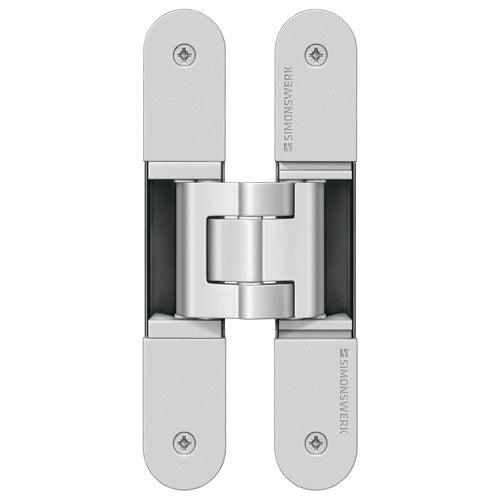

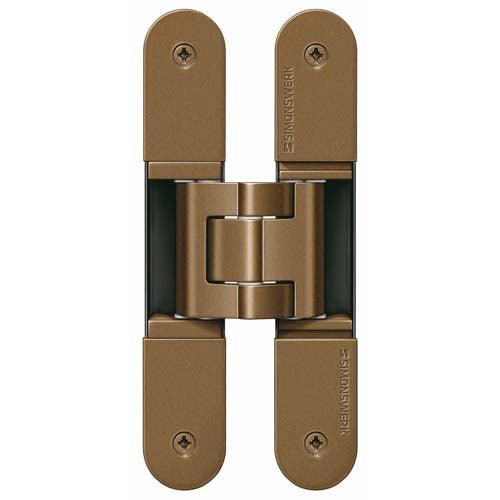

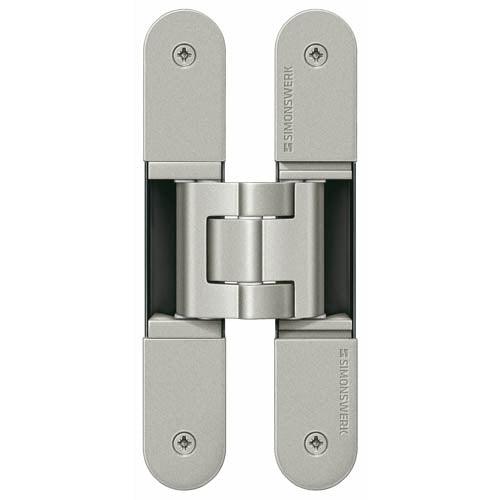

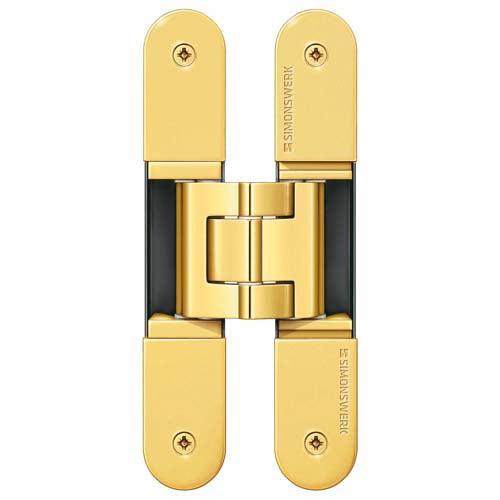

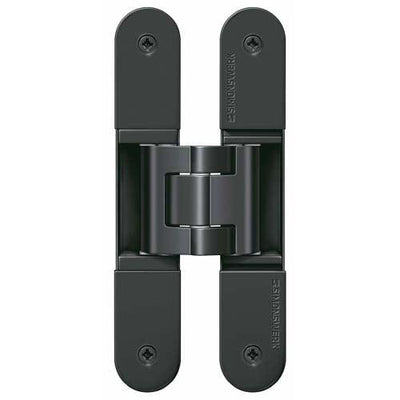

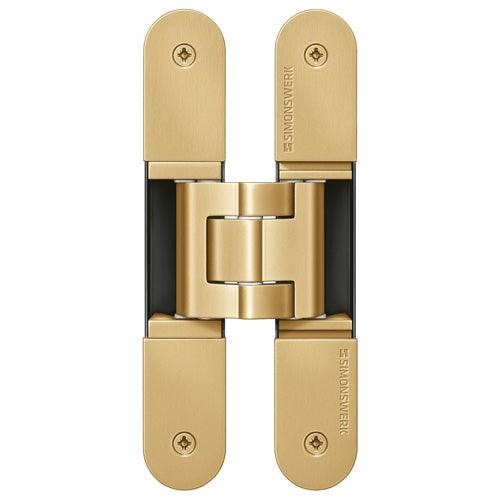

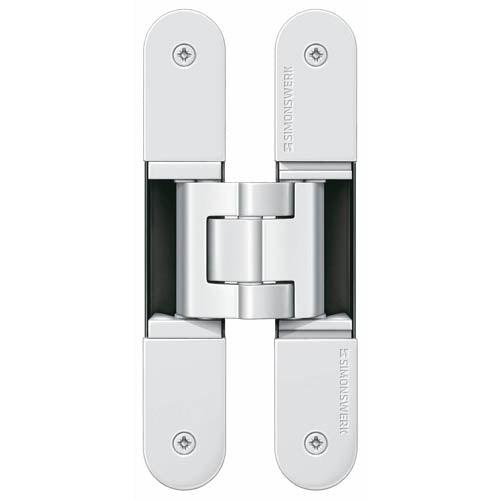

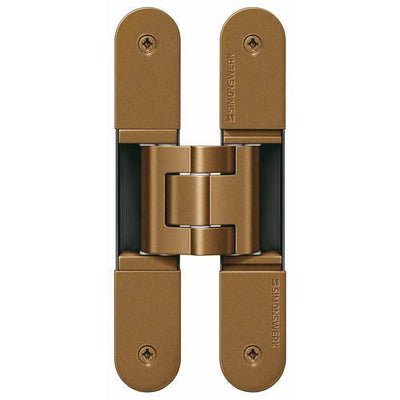

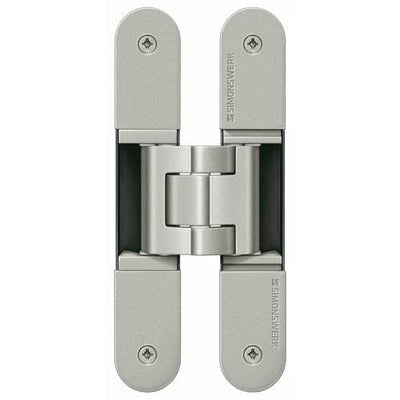

Completely concealed hinge system
-
Maintenance-free slide bearings
-
For wood, steel or aluminum door panels and frames
-
Finger protection due to a small gap between door and frame
-
For flush residential and commercial doors
-
Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
-
UL listed for 20 minute fire door
| Load capacity | 176.0 lbs | 80.0 kg |
| Overall length | 6.299 " | 160.0 mm |
| Width (door part) | 1.102 " | 28.0 mm |
| Width (frame part) | 1.102 " | 28.0 mm |
| Router bit diameter | 3/4 " | 24.0 mm |
| Opening angle | 180° | 180° |
| Door leaf material | wood, hollow metal |
| Door edge | flush |
| Type of frame | hollow metal frames, casing wood frames, commercial wood frames, aluminum frame |
