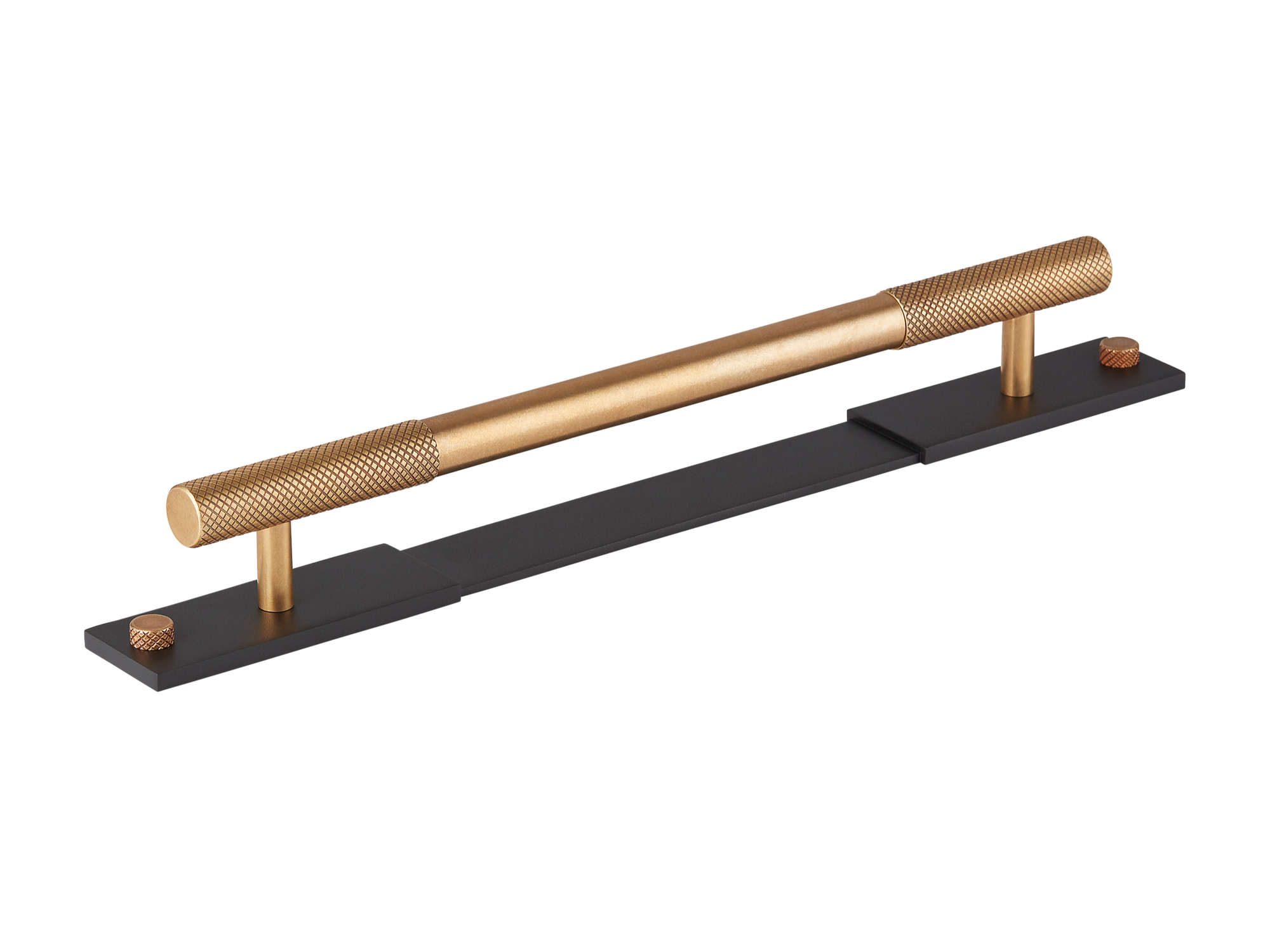

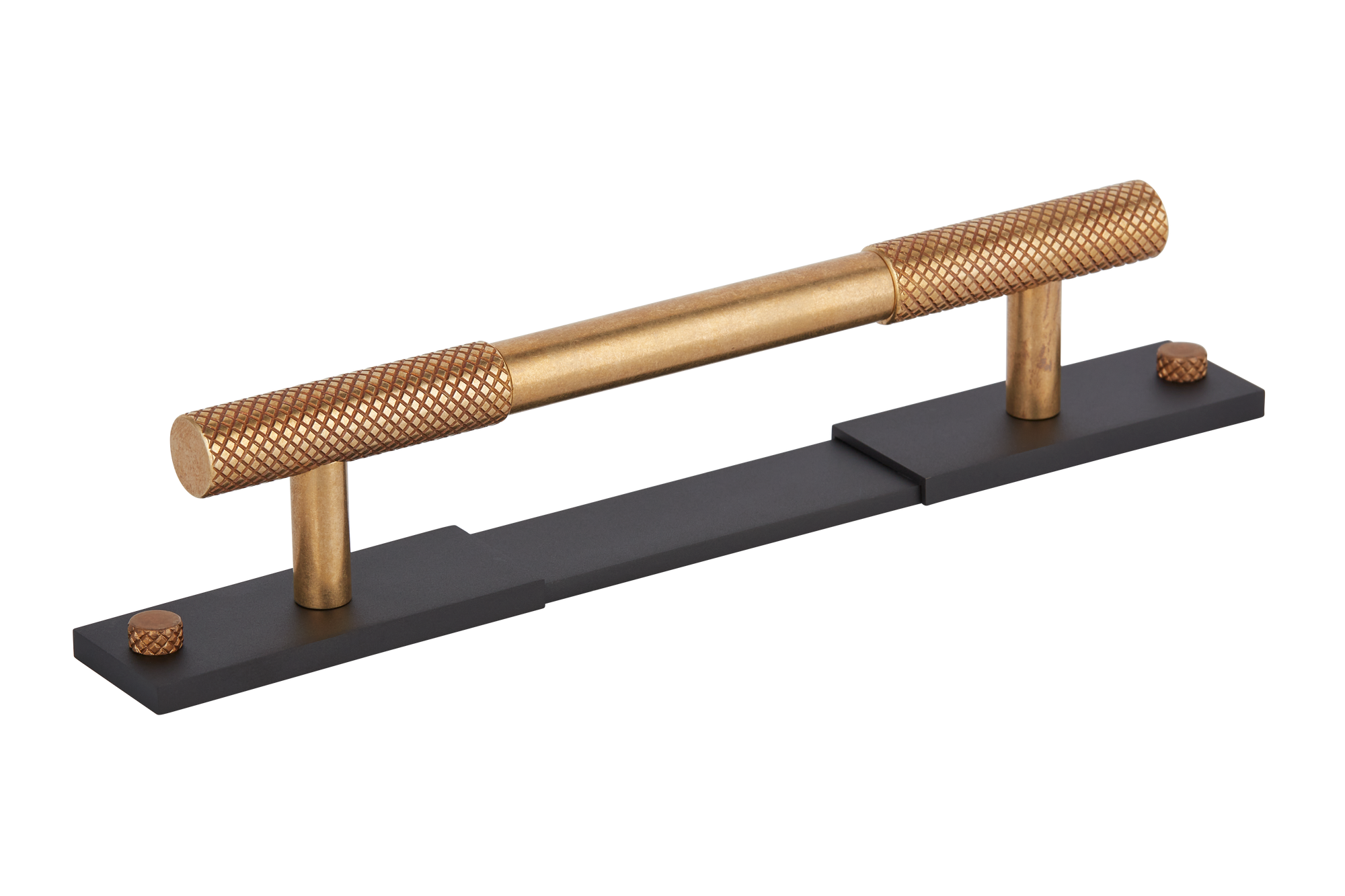

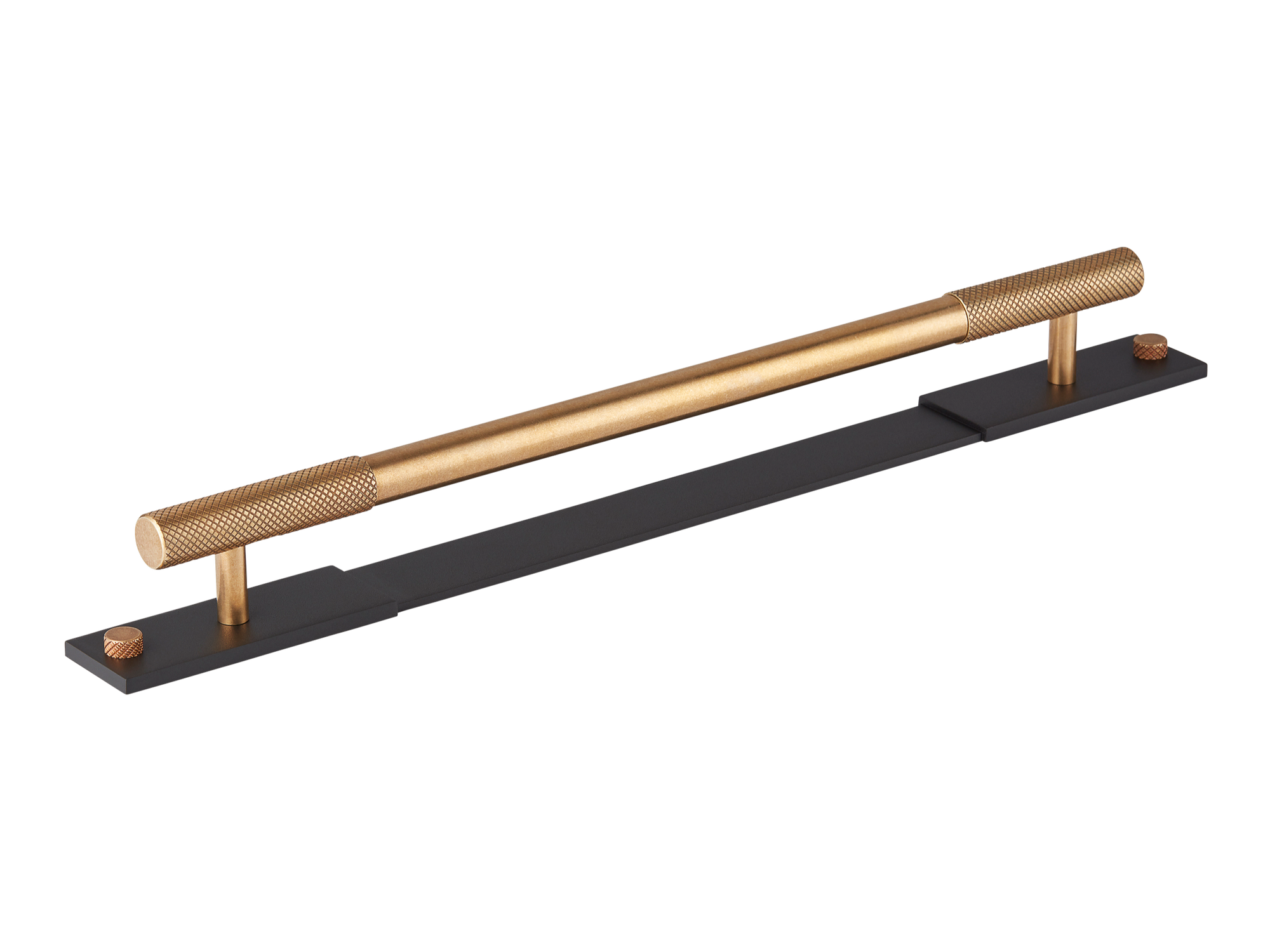

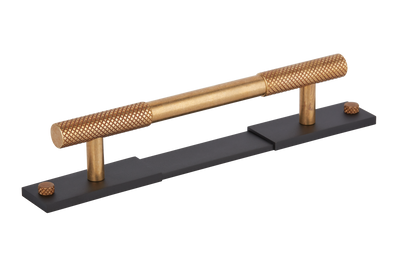

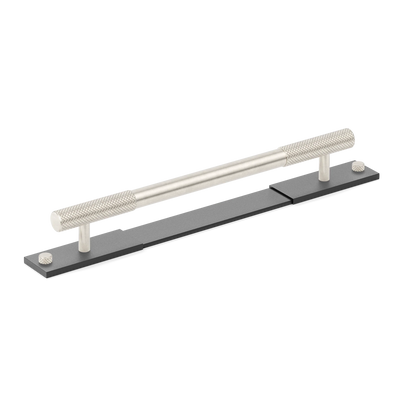

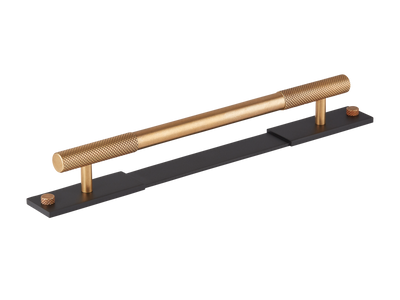

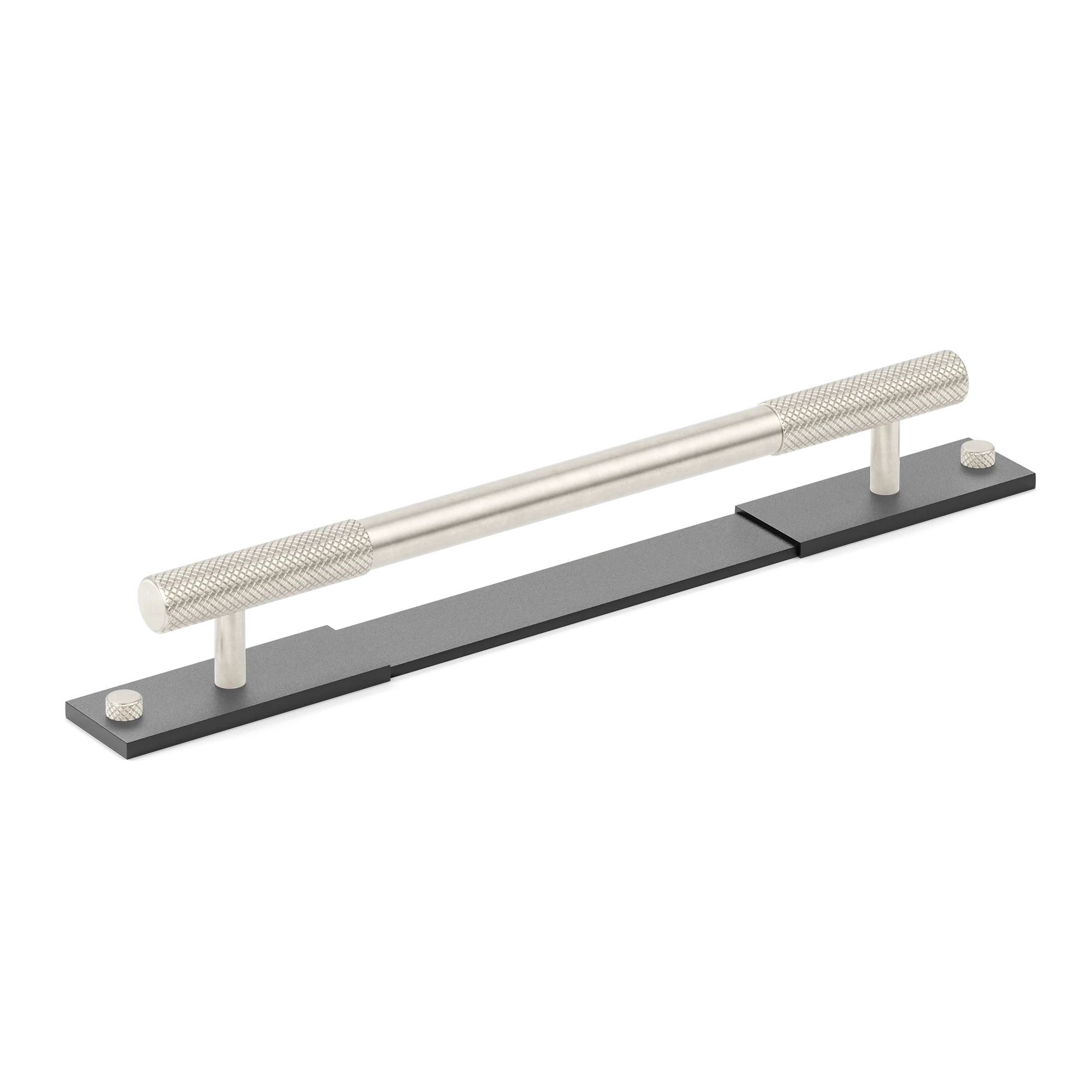

The Armac Martin MIX Diamond Knurled Cabinet Handle & Backplate - Mixed Finish is an industrial and modern piece in solid brass, made in England by Armac Martin. It comes in 4 sizes, so the whole room can be matched in one finish.
Pick your size and finish above, then choose Add to Cart, or use Add to Quote to price a whole kitchen or house. A hardware specialist reviews every order before it ships. Designers, builders and architects get trade pricing through our free Pro program. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Specifications
| Code | Centres (C) | Bar Diameter | Projection (P) | Length (L) | Plate Length (L) | Plate Thickness (T) | Plate Width (PW) |
|---|---|---|---|---|---|---|---|
| MIX1/PULL/128 | 128mm (5-1/16") | 11mm (7/16") | 39mm (1-9/16") | 170mm (6-11/16") | 198mm (7-13/16") | 39mm (1-9/16") | 25mm (1") |
| MIX1/160 | 160mm (6-5/16") | 11mm (7/16") | 39mm (1-9/16") | 202mm (7-15/16") | 230mm (9-1/16") | 39mm (1-9/16") | 25mm (1") |
| MIX1/224 | 224mm (8-13/16") | 14mm (9/16") | 42mm (1-5/8") | 274mm (10-13/16") | 310mm (12-3/16") | 42mm (1-5/8") | 32mm (1-1/4") |
| MIX1/288 | 288mm (11-5/16") | 14mm (9/16") | 42mm (1-5/8") | 338mm (13-5/16") | 374mm (14-3/4") | 42mm (1-5/8") | 32mm (1-1/4") |
Part numbers
Show all 4 MIX Diamond Knurled Cabinet Handle & Backplate - Mixed Finish part numbers
| 128mm | MIX1/PULL/128/MIXED FINISH |
| 160mm | MIX1/160/MIXED FINISH |
| 224mm | MIX1/224/MIXED FINISH |
| 288mm | MIX1/288/MIXED FINISH |
Brand: Armac Martin. Collection: MIX.
