Emtek Arts and Crafts Deadbolt

Name: Emtek Arts and Crafts Deadbolt
Brand: Emtek

Emtek part number:

Each. Made to order by Emtek.

Keying (optional)

Key this deadbolt alike with the other Emtek locks on my order, so one key opens them all

Made to order. Lead time is typically 5 to 7 business days.
A hardware specialist reviews every order within 1 business day, before it's placed with Emtek. If anything doesn't look right, we contact you first.
Emtek hardware is made to order for your doors. Unused items in the original packaging can be returned within 30 days of delivery with a 25% restocking fee. Return shipping is paid by the customer. Installed or used items can't be returned. Need a change? Call us before we place your order with Emtek.
Questions? Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Doing a whole house? Send us your plans or door schedule and we'll build the complete list.

Specifications

Includes	Complete deadbolt with bolt and strike plate
Functions	Single cylinder: key outside, thumbturn inside. Double cylinder: key both sides. Single sided: thumbturn inside only, no key.
Door prep	Standard 2-1/8" bore
Backset	2-3/8" or 2-3/4", chosen above
Door thickness	1-3/4" standard. Other thicknesses are confirmed on a quote.
Faceplate	Square corners standard. Round corners on request.
Keyway	Schlage C standard. Weiser WR5 available.
Keyed alike	Available on request for Emtek locks on the same order

Documents

Emtek deadbolt specifications (PDF)

About this deadbolt

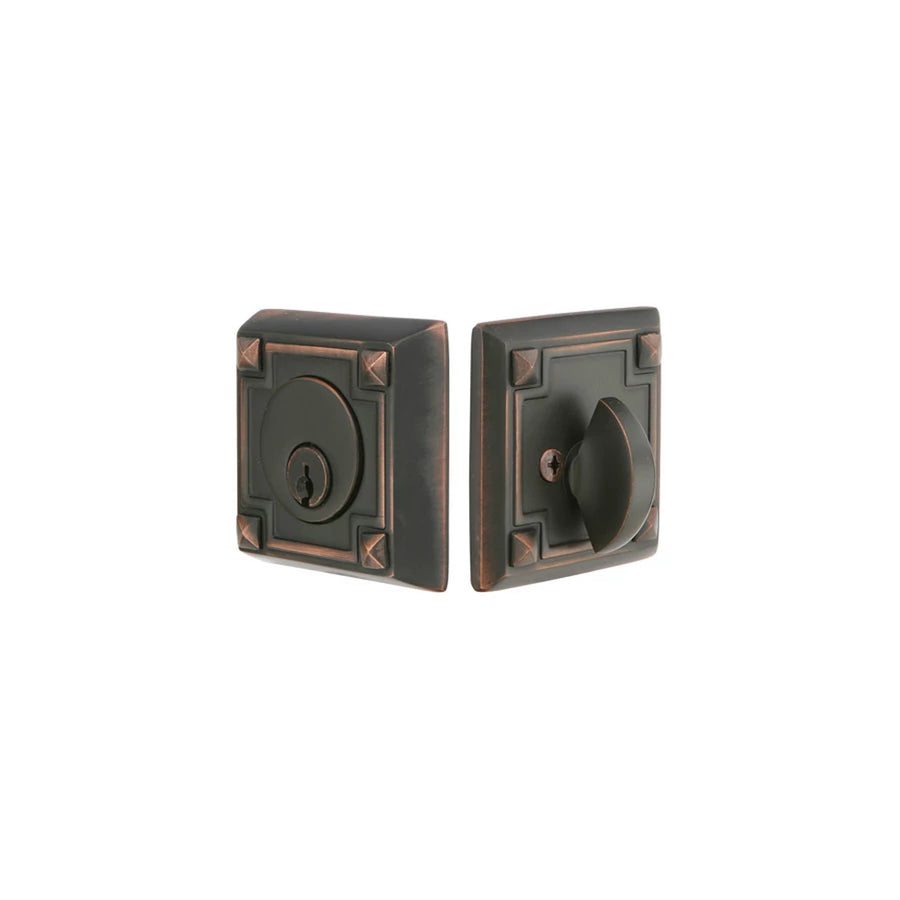

The Emtek Arts and Crafts Deadbolt is a solid brass deadbolt styled to match Emtek's Arts and Crafts door hardware, so the front door matches the rest of the house.

Which function do I need?

Single cylinder: key outside, thumbturn inside. The usual choice for a front or side door.
Double cylinder: key on both sides. Check your local code before using one on an exit door.
Single sided: thumbturn inside only, no key. For doors you only lock from inside.

Details

Material: Solid brass
Finishes: Satin Nickel, Unlacquered Brass, Oil Rubbed Bronze, Flat Black
Includes: complete deadbolt with bolt and strike plate
Door prep: standard 2-1/8" bore, 2-3/8" or 2-3/4" backset, 1-3/4" door standard
Free keying: keyed alike with your other Emtek locks on the same order, or matched to your key code

Part numbers

Finish	Single cylinder	Double cylinder	Single sided
Satin Nickel	8454US15	8354US15	8554US15
Unlacquered Brass	8454US3NL	8354US3NL	8554US3NL
Oil Rubbed Bronze	8454US10B	8354US10B	8554US10B
Flat Black	8454US19	8354US19	8554US19

Weiser keyway versions start with a W, for example W8454US15.

Doing a whole house? Send us your plans or door schedule and we'll build the complete list, including matching knob and lever sets and entry sets. Designers, builders and architects can request trade pricing through our free Pro program. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
