The Emtek Elan is a solid brass lever in Emtek's Contemporary style. Choose from 2 rosettes and 7 finishes to match the rest of your hardware.
Pick your finish, rosette and function above, then choose Request a Quote. We reply within 1 business day. Door hardware has a lot of details that have to match your doors, so a hardware specialist confirms the fit and final price with you before anything is ordered.
Which function do I need?
- Passage: no lock. Hallways, closets, pantries, laundry and kids' rooms.
- Privacy: a push-button lock on the inside with an emergency release on the outside. Bedrooms and bathrooms.
- Dummy: no latch and no bore hole. Surface mounted for closet pairs, the inactive side of French doors and pantry pairs.
Most homes need more than one. Tell us how many of each and we'll build the list.
What your specialist will confirm with you
- Door handing: stand on the side the door swings away from and look at the hinges. Hinges on the left means left handed, on the right means right handed. We'll double-check it with you.
- Backset: the standard latch is 2-3/8". 2-3/4" is available if your doors are bored for it.
- Door thickness: standard sets fit doors 1-1/4" to 2" thick with a standard 2-1/8" bore. Tell us if your doors are thicker.
- Latch plate: square or round corner, to match how your doors are prepped.
- Concealed screws: an upgrade that hides the mounting screws for a cleaner look, about $47 more per set. It fits doors 1-3/8" to 1-3/4" thick.
Specifications
| Material | Solid brass |
| Finishes | Satin Nickel, Polished Chrome, Unlacquered Brass, Polished Brass, French Antique, Pewter, Oil Rubbed Bronze |
| Rosettes | Quincy Rosette, Wilshire Rosette. Also available with Disk Rosette, Modern Rectangular Rosette, Modern Rosette, Neos Rosette, Square Rosette and Stretto 1-1/2" x 5" on request. |
| Functions | Passage, Privacy, Dummy |
| Includes | Complete set with latch and strike plate |
| Price | Per set. Passage sets from $198.40. Your quote confirms the final price. |
| Lead time | Typically 5 to 7 business days. |
Part numbers
Every Emtek Elan lever part number by rosette, finish and function. Levers are handed, so each set has a left hand (LH) and right hand (RH) number. Concealed-screw versions, where Emtek offers them, start with a C, for example C8131ENUS15.
Show all 70 Elan part numbers
| Finish | Passage | Privacy | Dummy |
|---|---|---|---|
| Quincy Rosette | |||

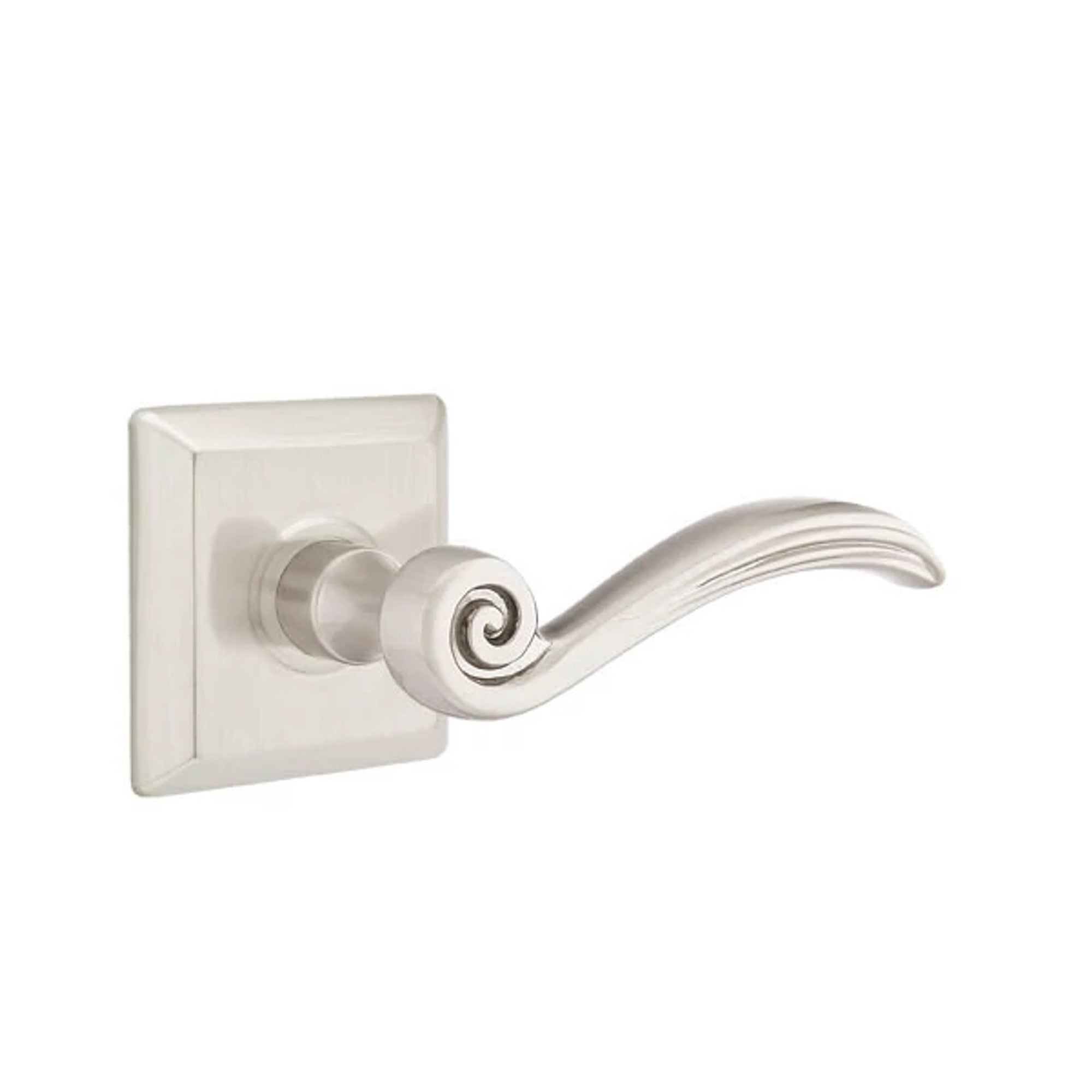

| Satin Nickel | 8131ENLHUS15 8131ENRHUS15 |
8231ENLHUS15 8231ENRHUS15 |
8531ENUS15 |

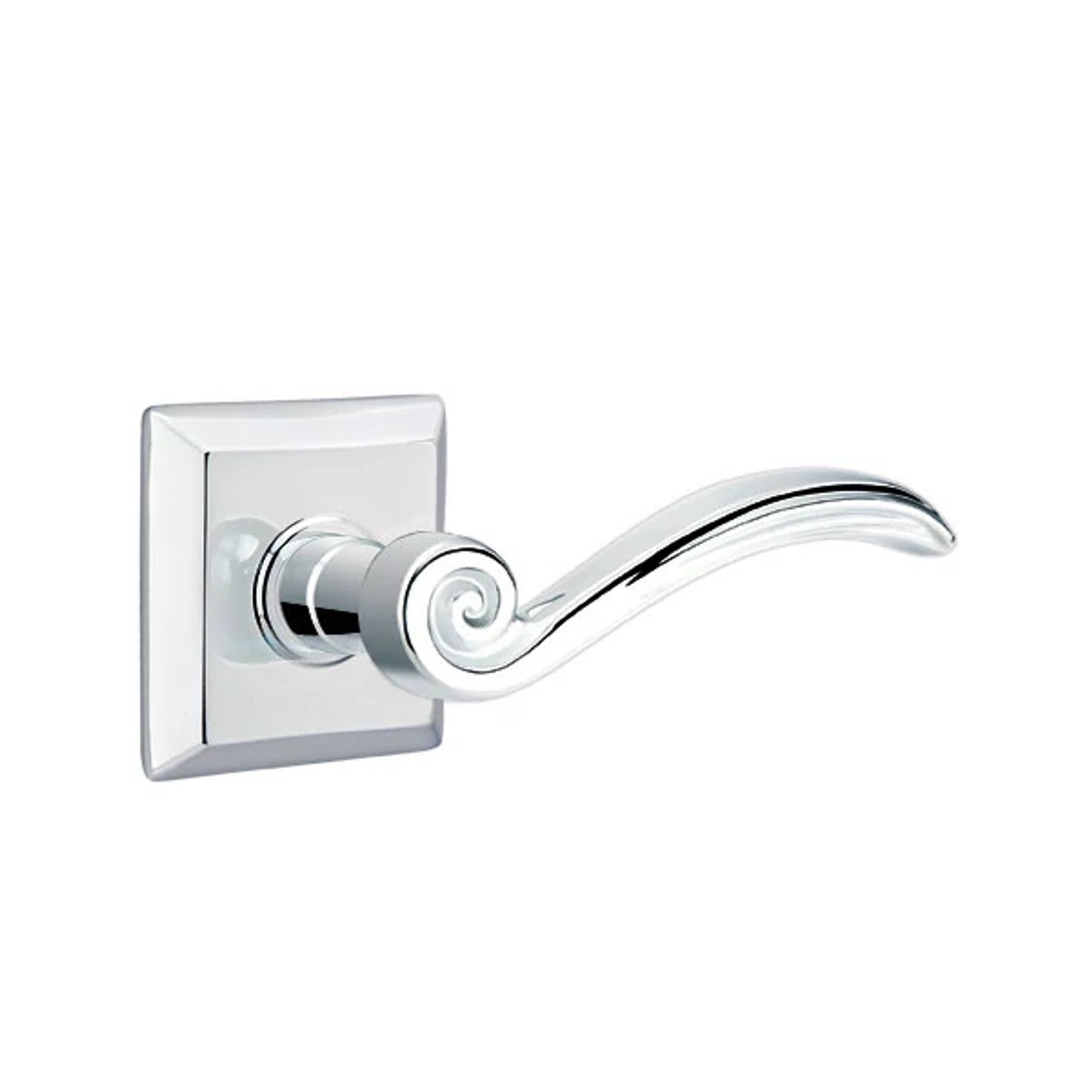

| Polished Chrome | 8131ENLHUS26 8131ENRHUS26 |
8231ENLHUS26 8231ENRHUS26 |
8531ENUS26 |
| Unlacquered Brass | 8131ENLHUS3NL 8131ENRHUS3NL |
8231ENLHUS3NL 8231ENRHUS3NL |
8531ENUS3NL |
| Polished Brass | 8131ENLHUS3 8131ENRHUS3 |
8231ENLHUS3 8231ENRHUS3 |
8531ENUS3 |

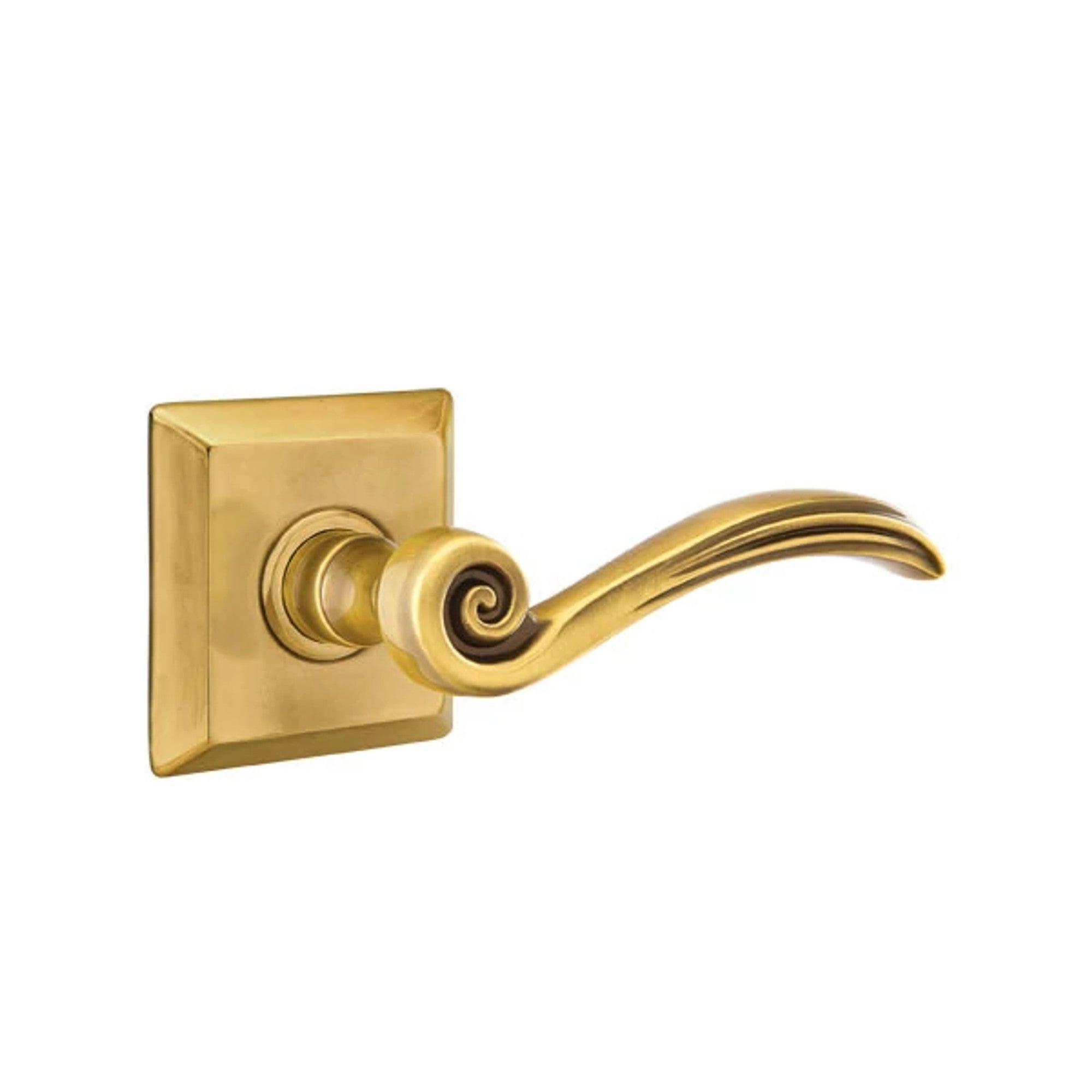

| French Antique | 8131ENLHUS7 8131ENRHUS7 |
8231ENLHUS7 8231ENRHUS7 |
8531ENUS7 |

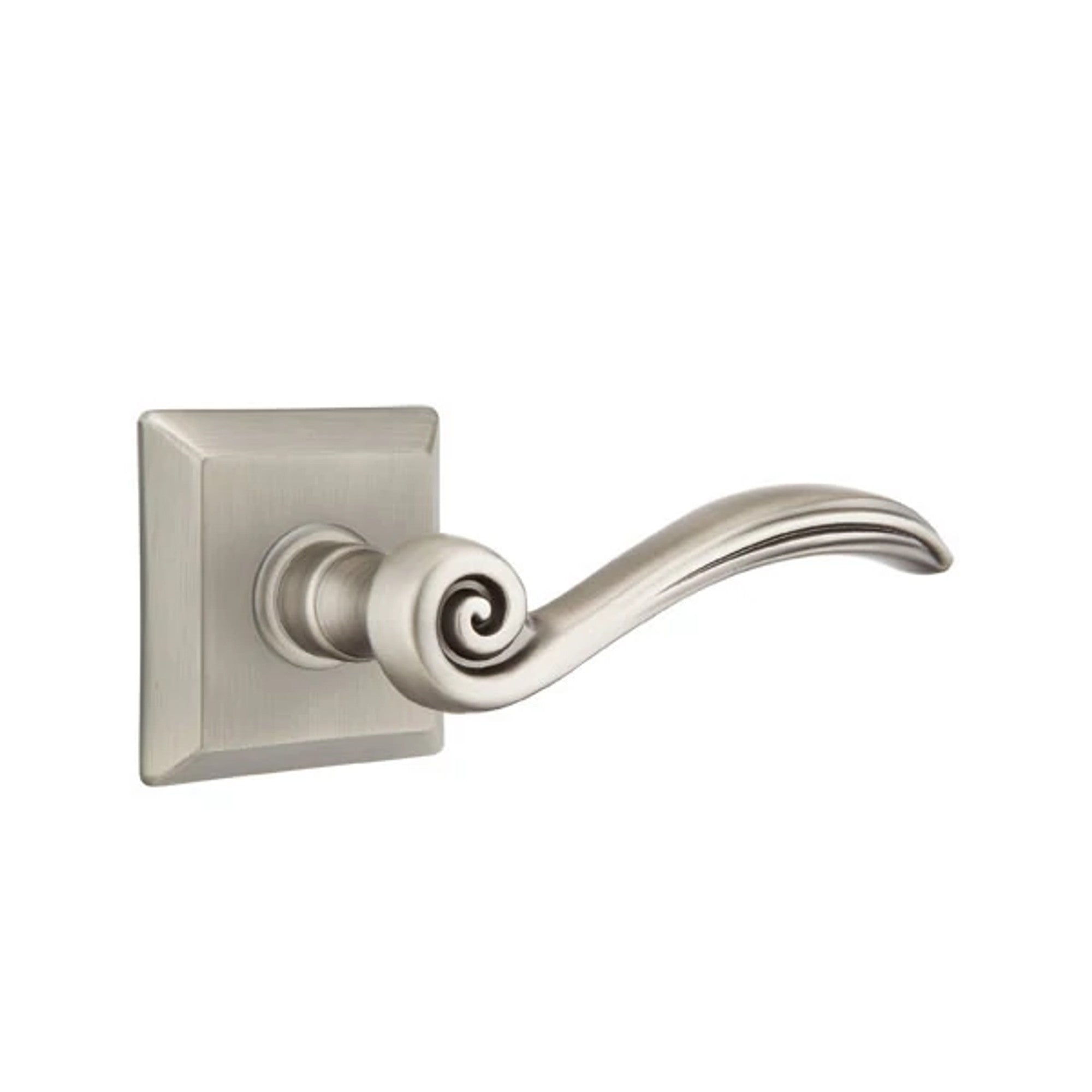

| Pewter | 8131ENLHUS15A 8131ENRHUS15A |
8231ENLHUS15A 8231ENRHUS15A |
8531ENUS15A |

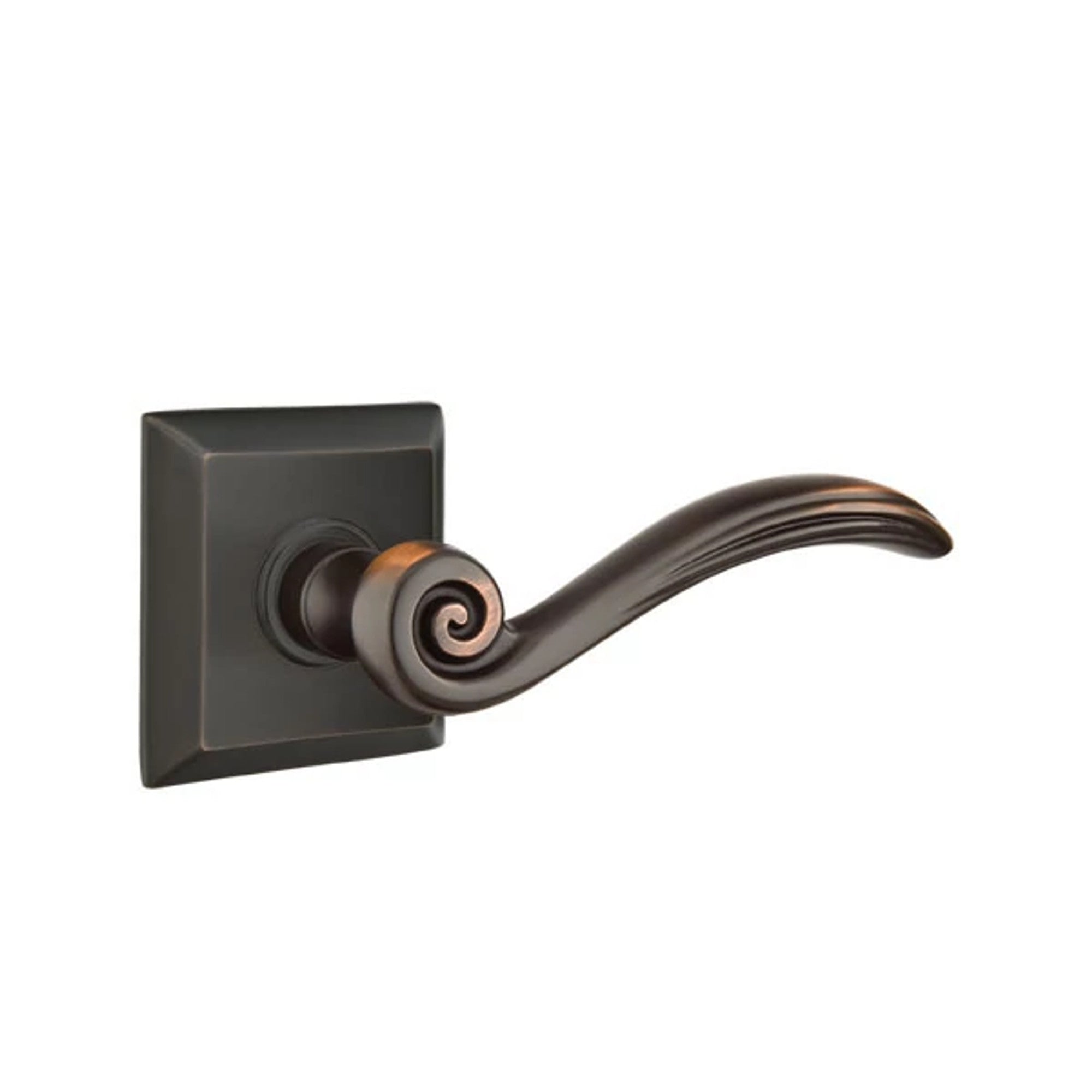

| Oil Rubbed Bronze | 8131ENLHUS10B 8131ENRHUS10B |
8231ENLHUS10B 8231ENRHUS10B |
8531ENUS10B |
| Wilshire Rosette | |||

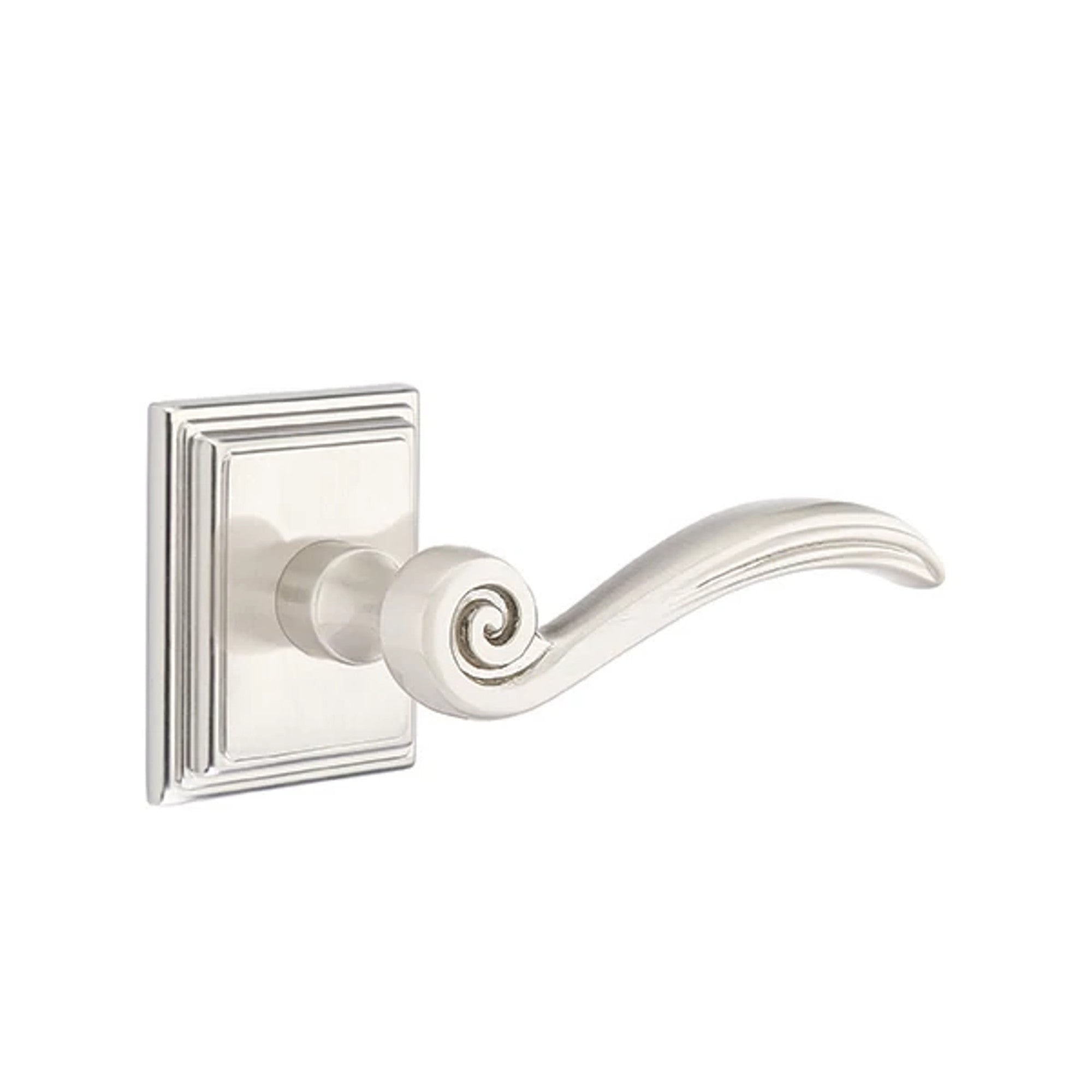

| Satin Nickel | 8161ENLHUS15 8161ENRHUS15 |
8261ENLHUS15 8261ENRHUS15 |
8561ENUS15 |

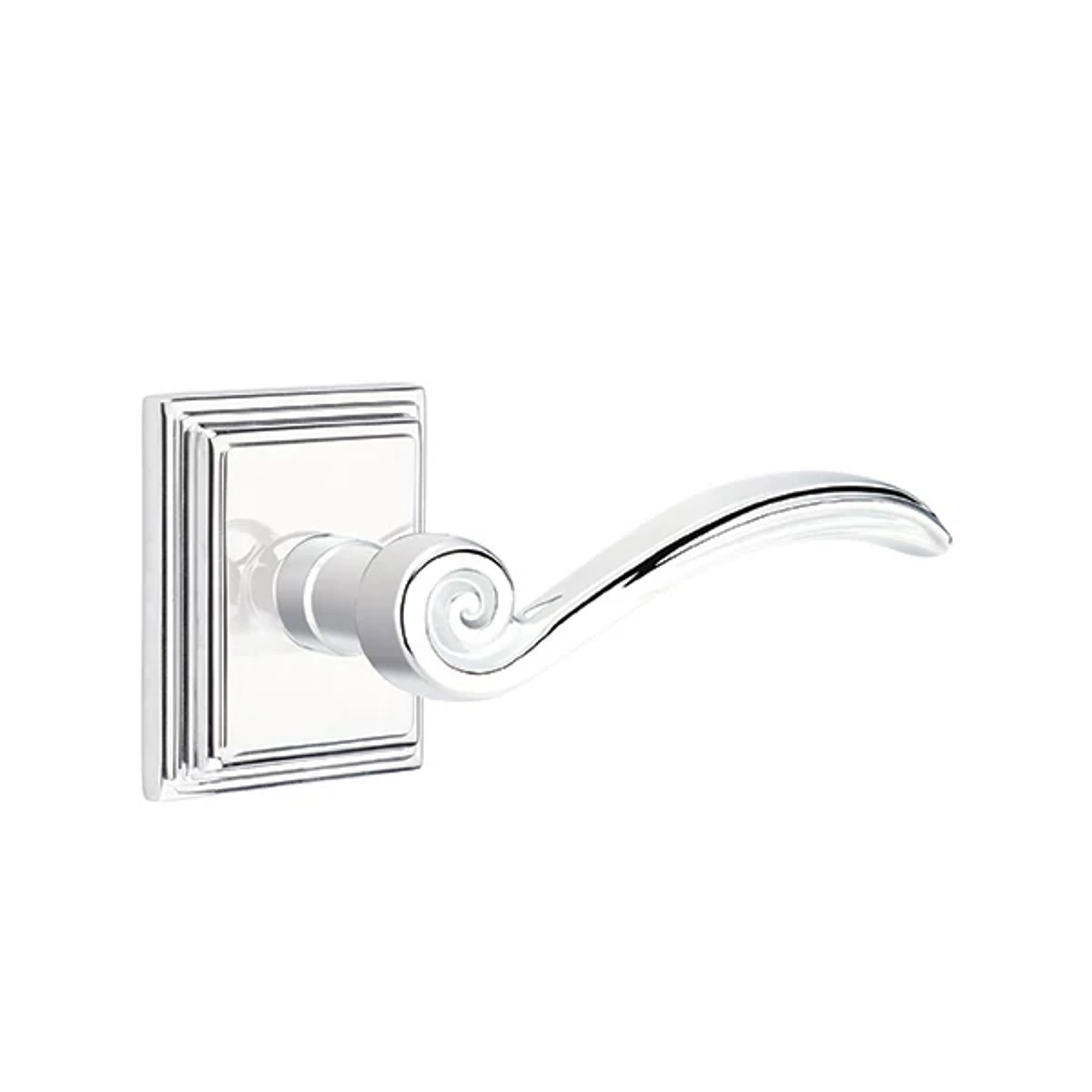

| Polished Chrome | 8161ENLHUS26 8161ENRHUS26 |
8261ENLHUS26 8261ENRHUS26 |
8561ENUS26 |
| Unlacquered Brass | 8161ENLHUS3NL 8161ENRHUS3NL |
8261ENLHUS3NL 8261ENRHUS3NL |
8561ENUS3NL |

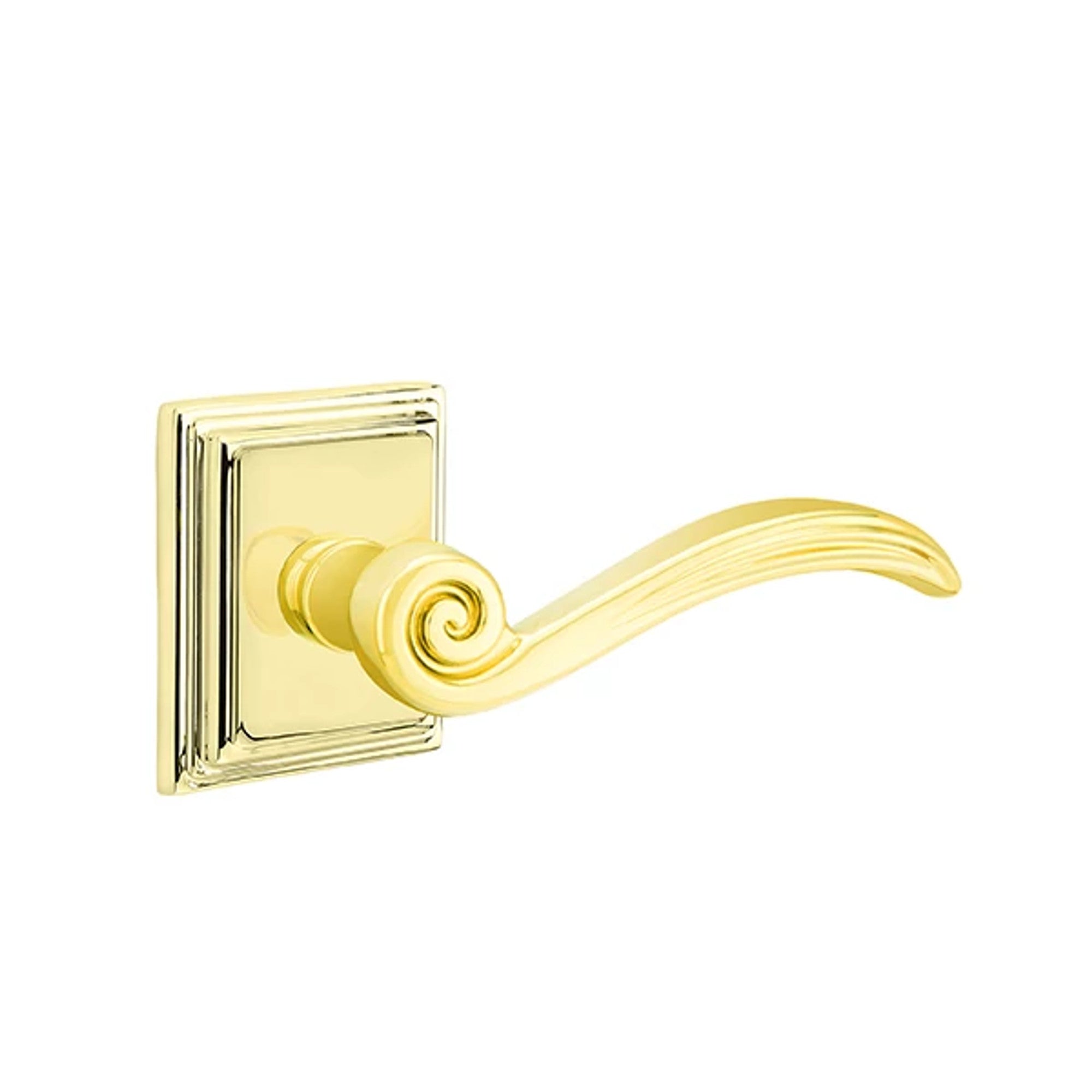

| Polished Brass | 8161ENLHUS3 8161ENRHUS3 |
8261ENLHUS3 8261ENRHUS3 |
8561ENUS3 |

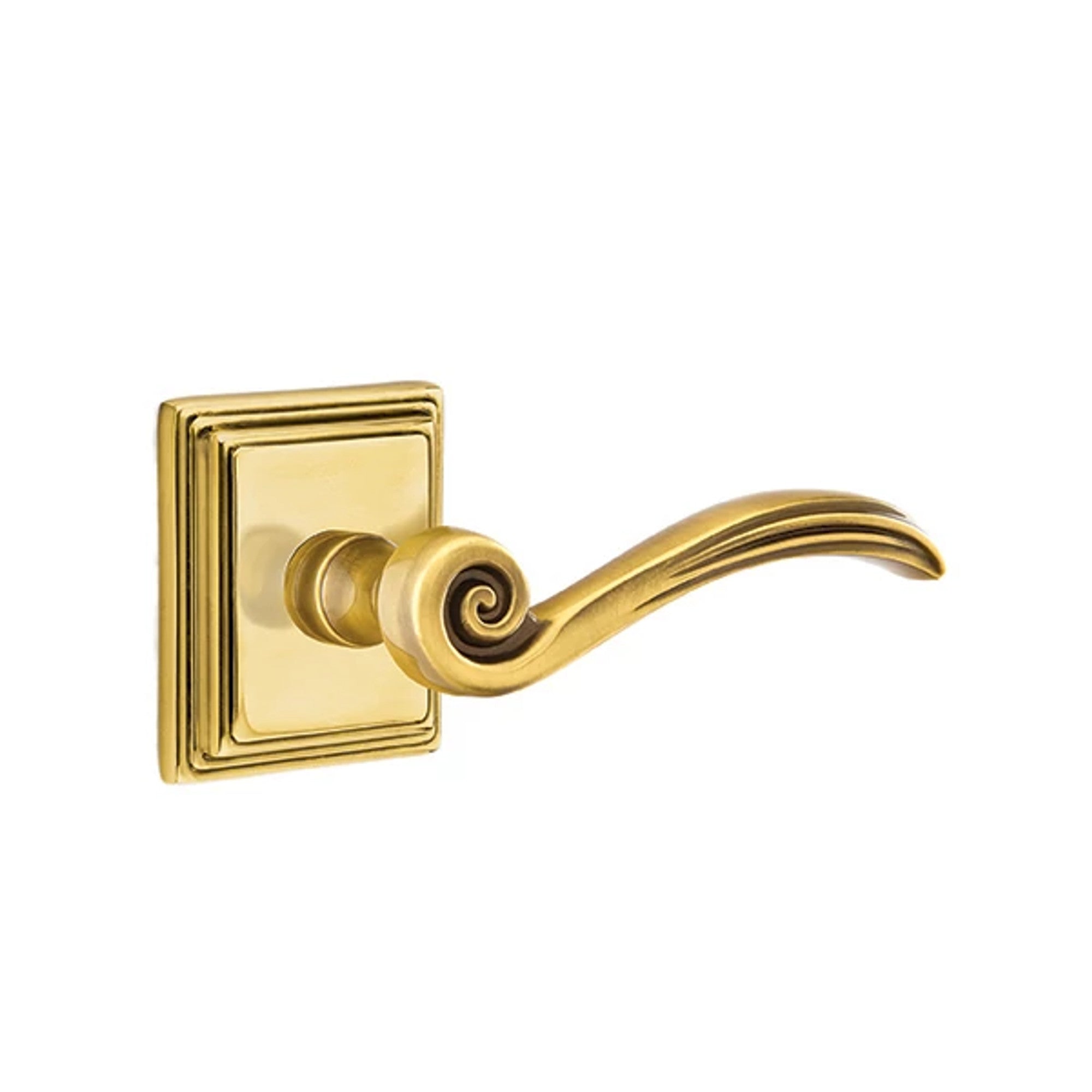

| French Antique | 8161ENLHUS7 8161ENRHUS7 |
8261ENLHUS7 8261ENRHUS7 |
8561ENUS7 |

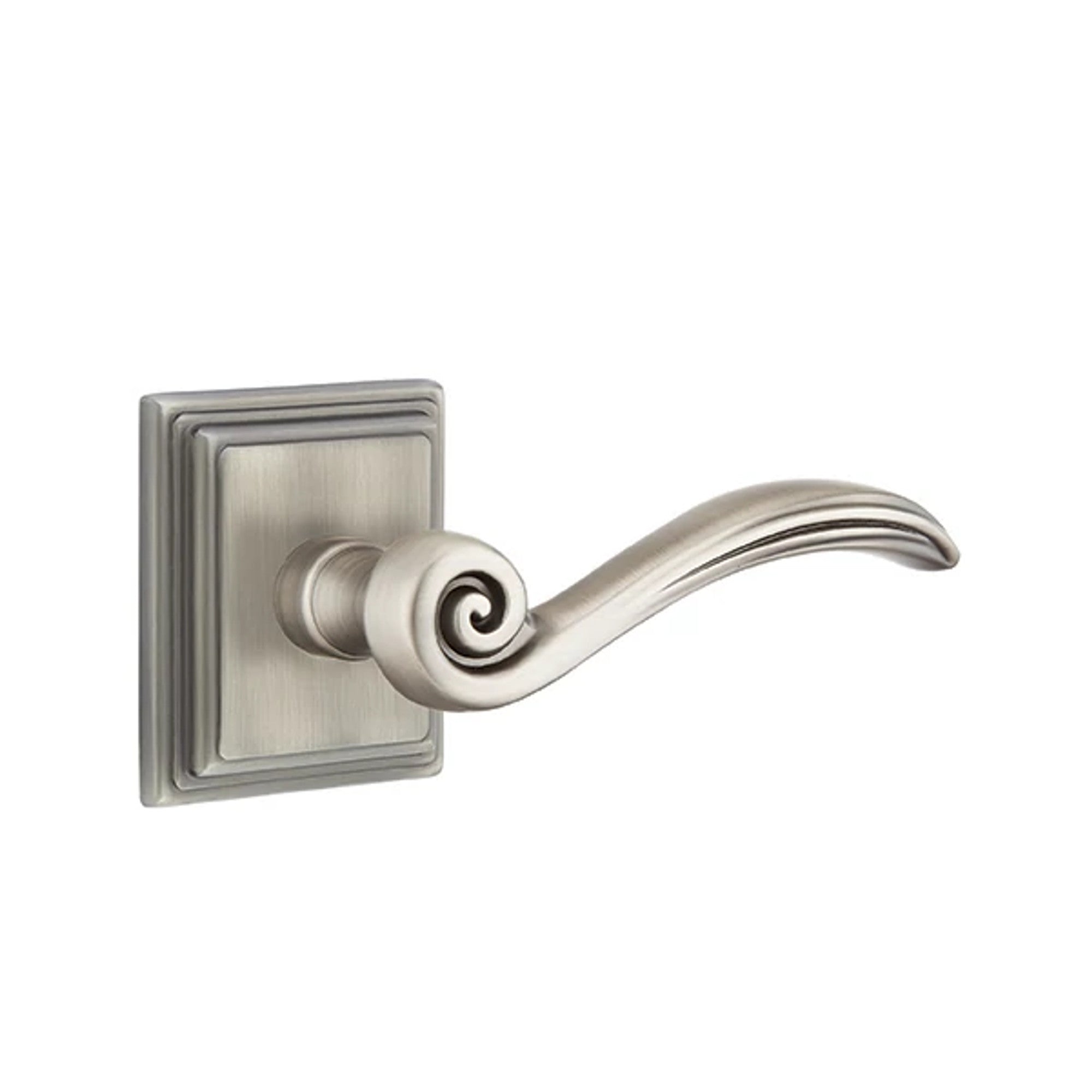

| Pewter | 8161ENLHUS15A 8161ENRHUS15A |
8261ENLHUS15A 8261ENRHUS15A |
8561ENUS15A |

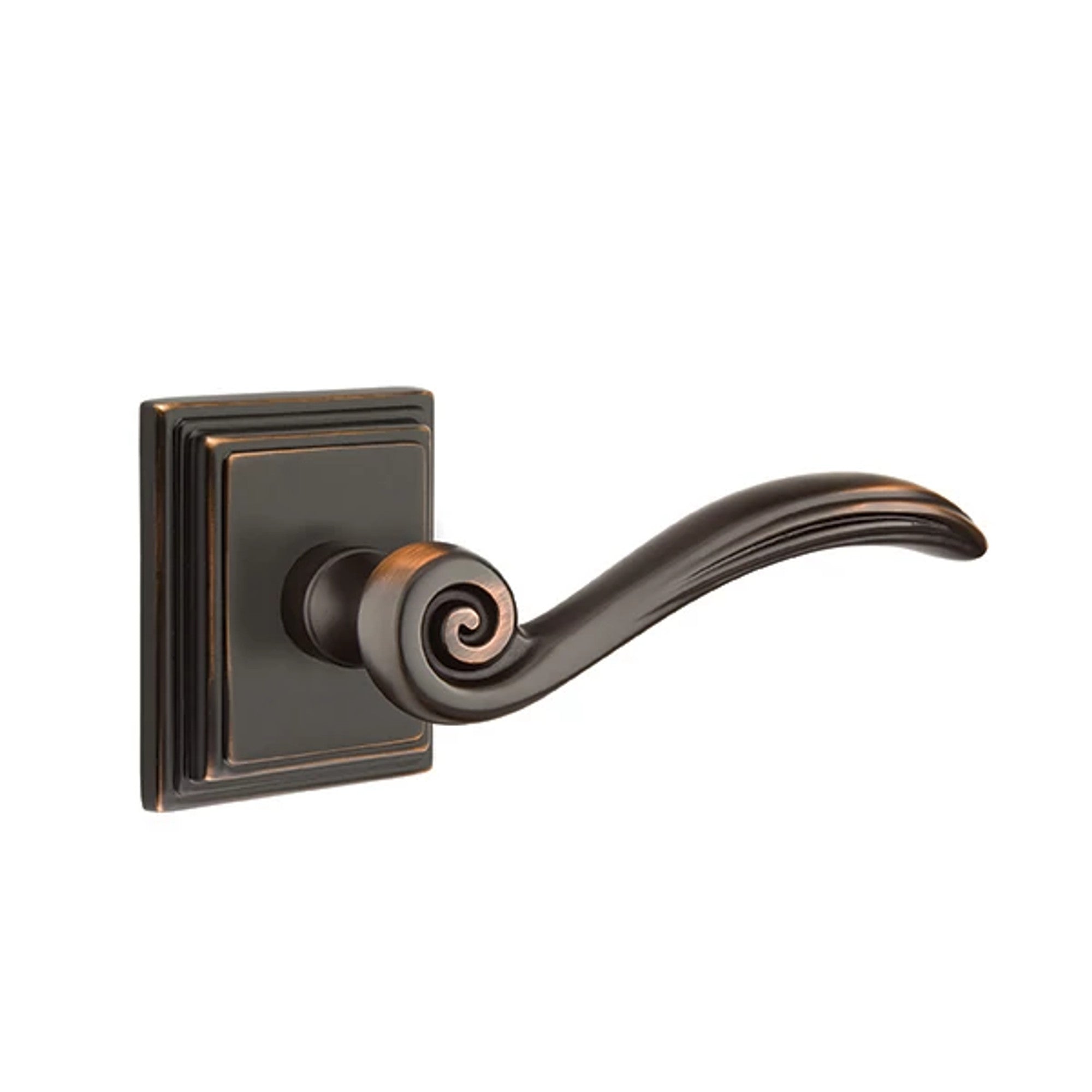

| Oil Rubbed Bronze | 8161ENLHUS10B 8161ENRHUS10B |
8261ENLHUS10B 8261ENRHUS10B |
8561ENUS10B |
Doing a whole house? Send us your plans or door schedule and we'll build the complete list, including matching entry sets, deadbolts and cabinet hardware. Designers, builders and architects can request trade pricing through our free Pro program. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
