The Emtek Myles is a solid brass lever in Emtek's Contemporary style. Choose from 9 rosettes and 7 finishes to match the rest of your hardware.
Pick your finish, rosette and function above, then choose Request a Quote. We reply within 1 business day. Door hardware has a lot of details that have to match your doors, so a hardware specialist confirms the fit and final price with you before anything is ordered.
Which function do I need?
- Passage: no lock. Hallways, closets, pantries, laundry and kids' rooms.
- Privacy: a push-button lock on the inside with an emergency release on the outside. Bedrooms and bathrooms.
- Dummy: no latch and no bore hole. Surface mounted for closet pairs, the inactive side of French doors and pantry pairs.
Most homes need more than one. Tell us how many of each and we'll build the list.
What your specialist will confirm with you
- Door handing: stand on the side the door swings away from and look at the hinges. Hinges on the left means left handed, on the right means right handed. We'll double-check it with you.
- Backset: the standard latch is 2-3/8". 2-3/4" is available if your doors are bored for it.
- Door thickness: standard sets fit doors 1-1/4" to 2" thick with a standard 2-1/8" bore. Tell us if your doors are thicker.
- Latch plate: square or round corner, to match how your doors are prepped.
- Concealed screws: an upgrade that hides the mounting screws for a cleaner look, about $47 more per set. It fits doors 1-3/8" to 1-3/4" thick.
- Stretto plates: need a 1-1/4" bore, and a two-hole prep for privacy.
Specifications
| Material | Solid brass |
| Finishes | Satin Nickel, Polished Nickel, Polished Chrome, Satin Brass, Unlacquered Brass, Oil Rubbed Bronze, Flat Black |
| Rosettes | Disk Rosette, Modern Rectangular Rosette, Modern Rosette, Neos Rosette, Quincy Rosette, Square Rosette, Urban Modern Rosette, Wilshire Rosette, Stretto 1-1/2" x 5". Also available with Oval Stretto 1-1/2" x 3" on request. |
| Functions | Passage, Privacy, Dummy |
| Includes | Complete set with latch and strike plate |
| Price | Per set. Passage sets from $198.40. Your quote confirms the final price. |
| Lead time | Typically 5 to 7 business days. |
Part numbers
Every Emtek Myles lever part number by rosette, finish and function. Levers are handed, so each set has a left hand (LH) and right hand (RH) number. Concealed-screw versions, where Emtek offers them, start with a C, for example C5109MYLUS15.
Show all 246 Myles part numbers
| Finish | Passage | Privacy | Dummy |
|---|---|---|---|

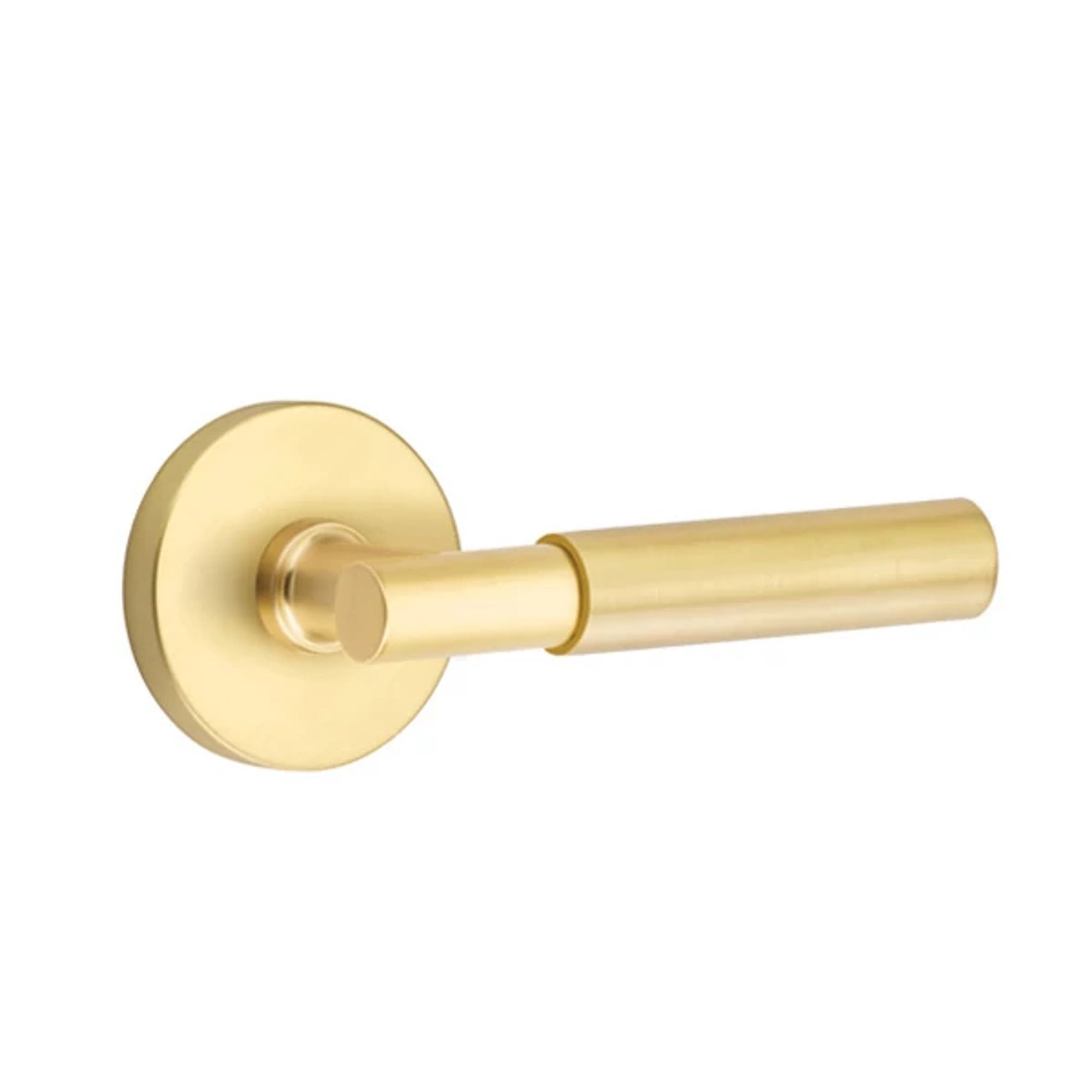

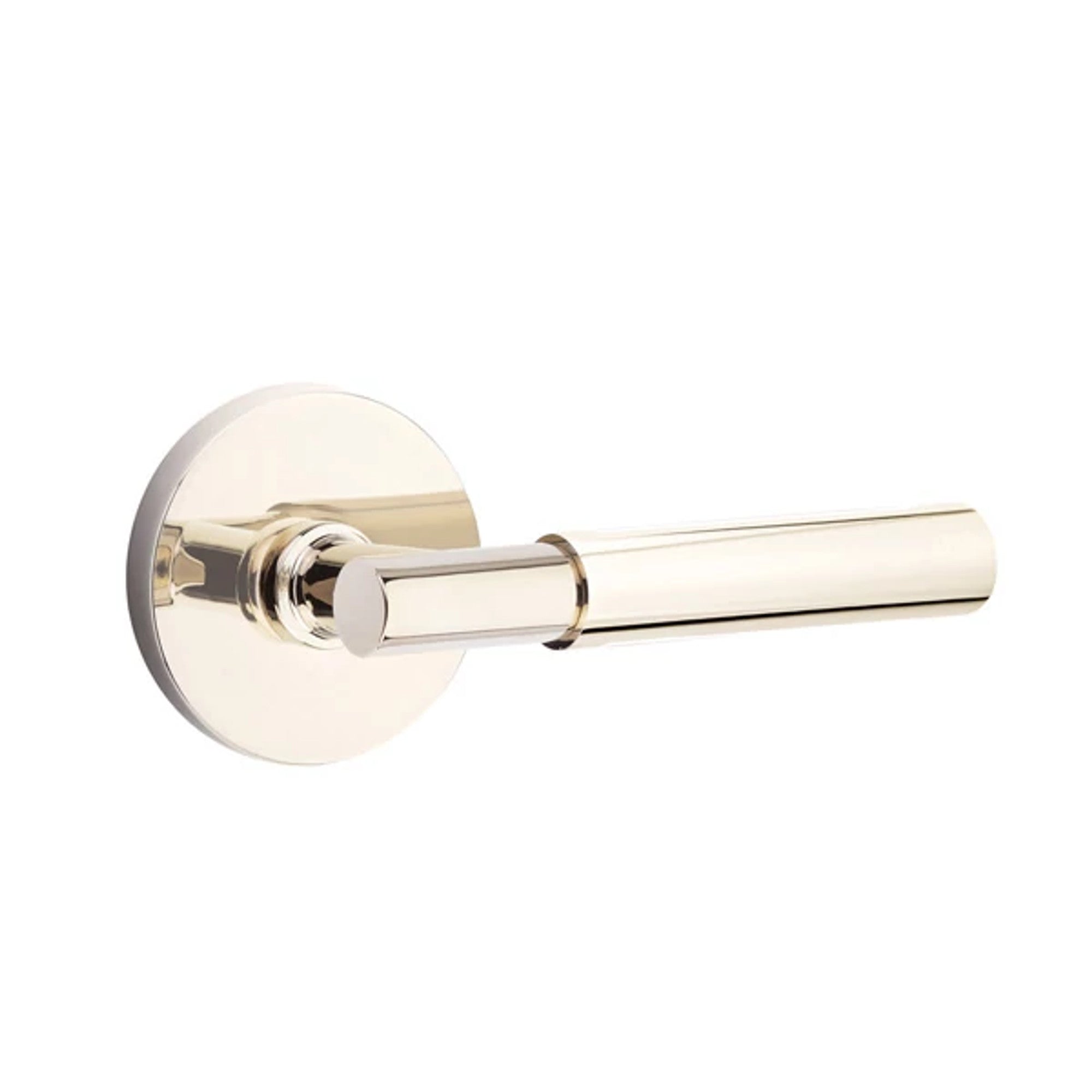

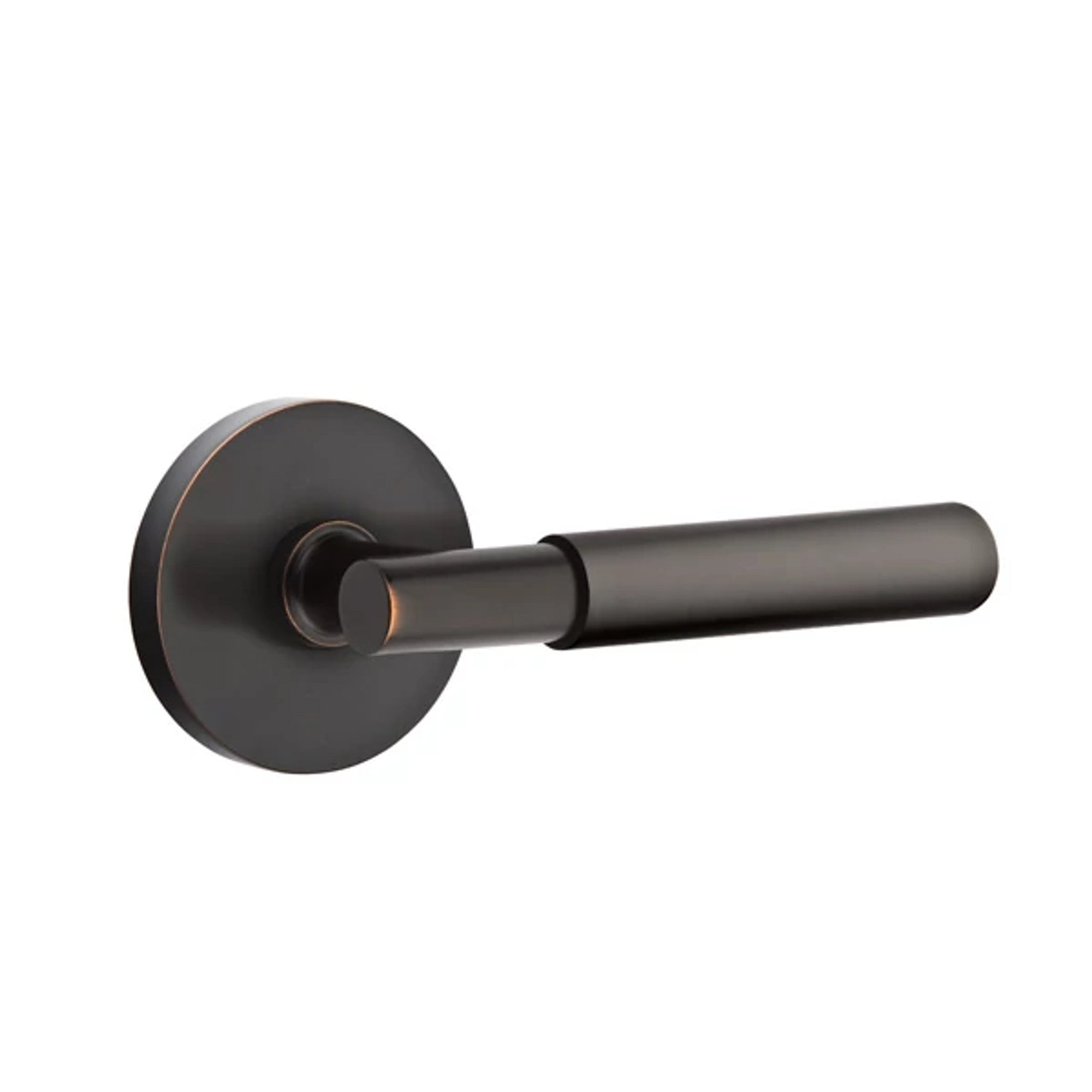

| Disk Rosette | |||

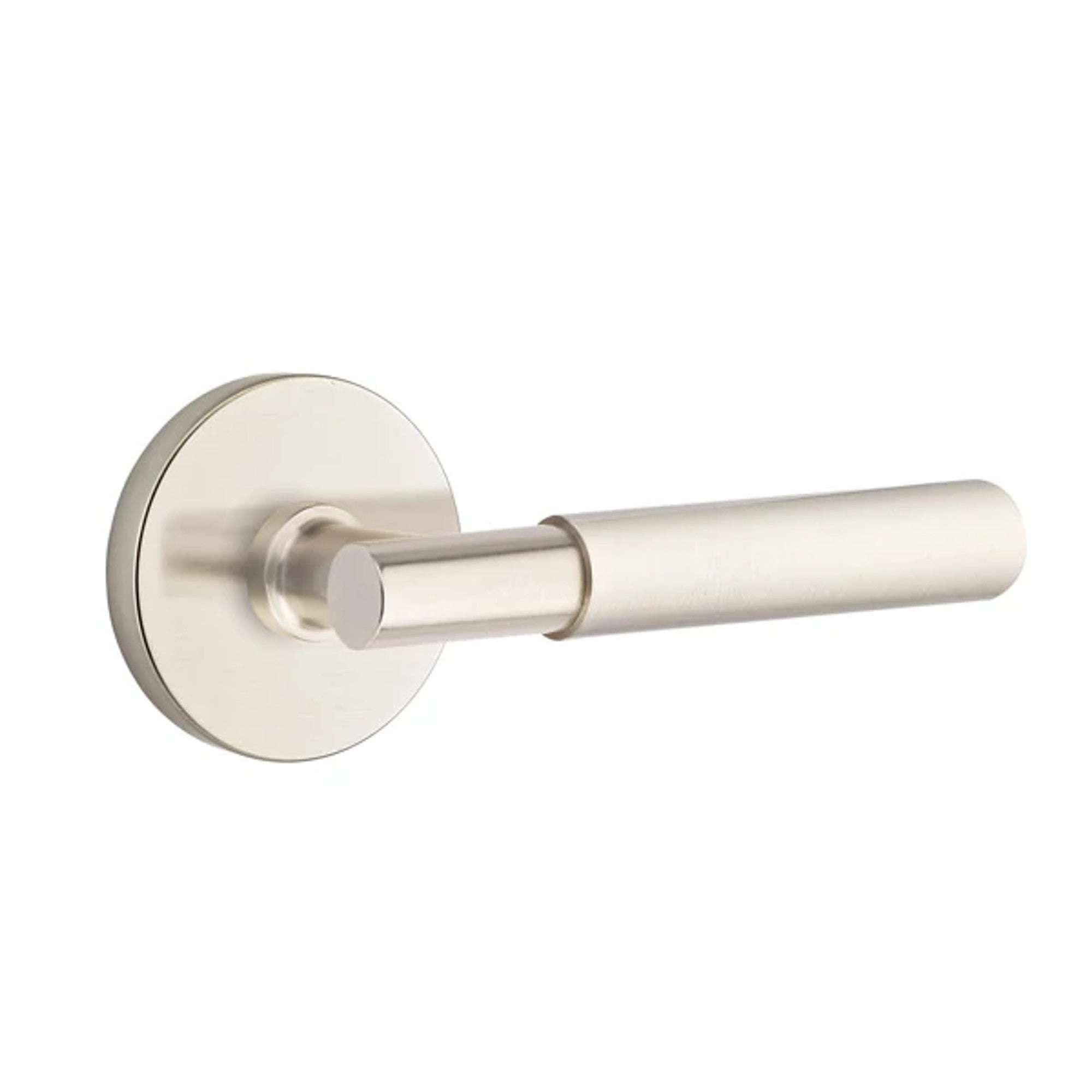

| Satin Nickel | 5109MYLLHUS15 5109MYLRHUS15 |
5209MYLLHUS15 5209MYLRHUS15 |
5059MYLUS15 |
| Polished Nickel | 5109MYLLHUS14 5109MYLRHUS14 |
5209MYLLHUS14 5209MYLRHUS14 |
5059MYLUS14 |
| Polished Chrome | 5109MYLLHUS26 5109MYLRHUS26 |
5209MYLLHUS26 5209MYLRHUS26 |
5059MYLUS26 |
| Satin Brass | 5109MYLLHUS4 5109MYLRHUS4 |
5209MYLLHUS4 5209MYLRHUS4 |
5059MYLUS4 |

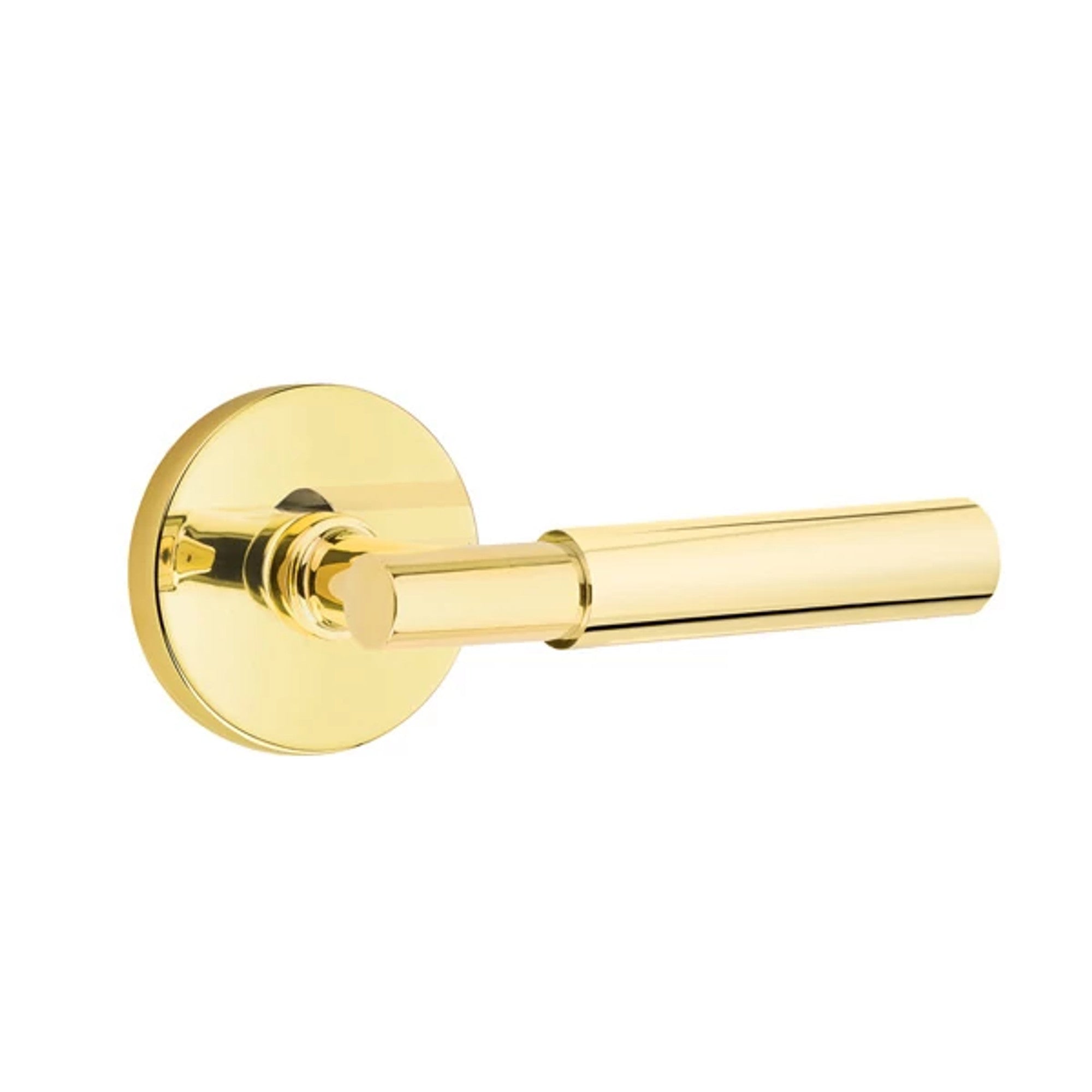

| Unlacquered Brass | 5109MYLLHUS3NL 5109MYLRHUS3NL |
5209MYLLHUS3NL 5209MYLRHUS3NL |
5059MYLUS3NL |
| Oil Rubbed Bronze | 5109MYLLHUS10B 5109MYLRHUS10B |
5209MYLLHUS10B 5209MYLRHUS10B |
5059MYLUS10B |
| Flat Black | 5109MYLLHUS19 5109MYLRHUS19 |
5209MYLLHUS19 5209MYLRHUS19 |
5059MYLUS19 |

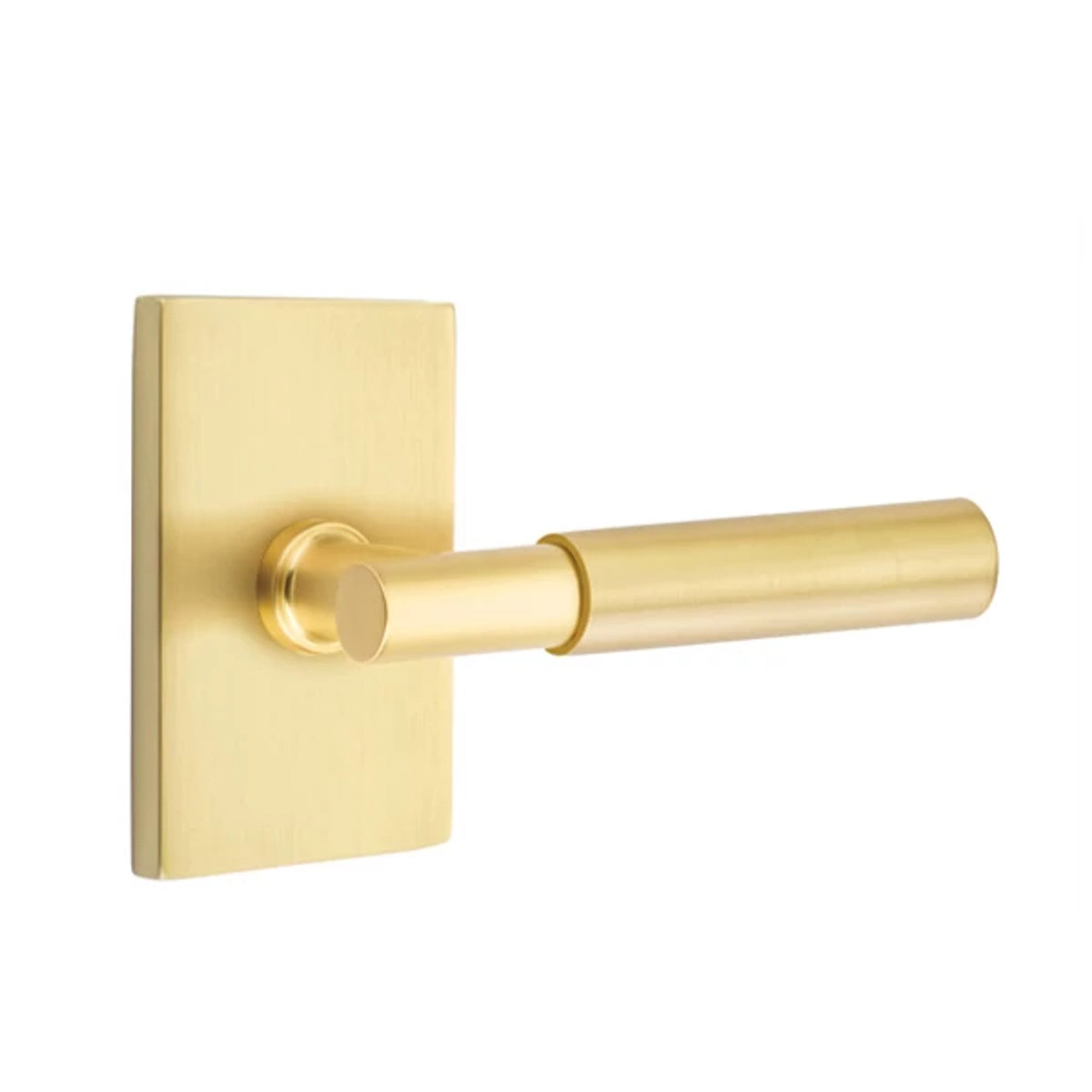

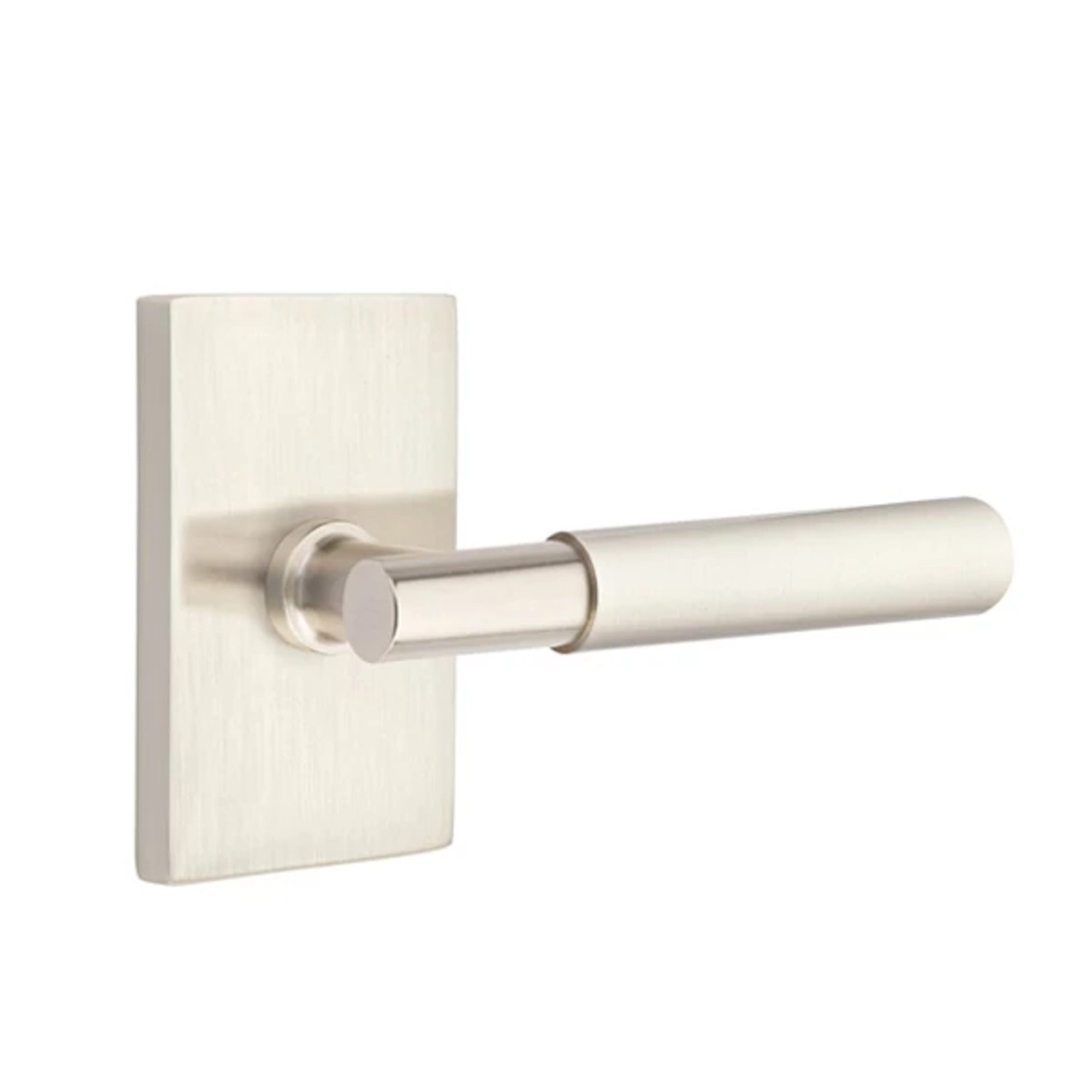

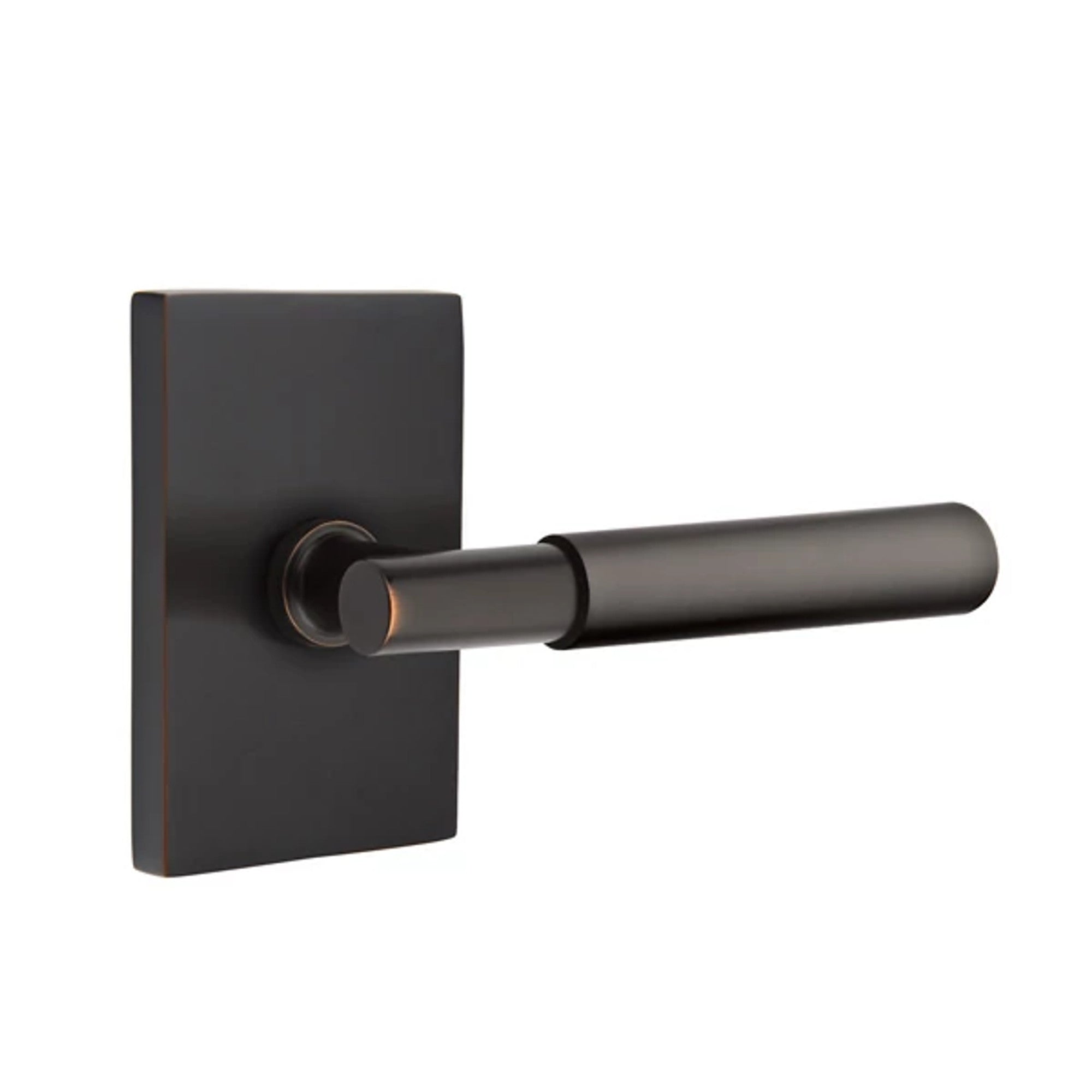

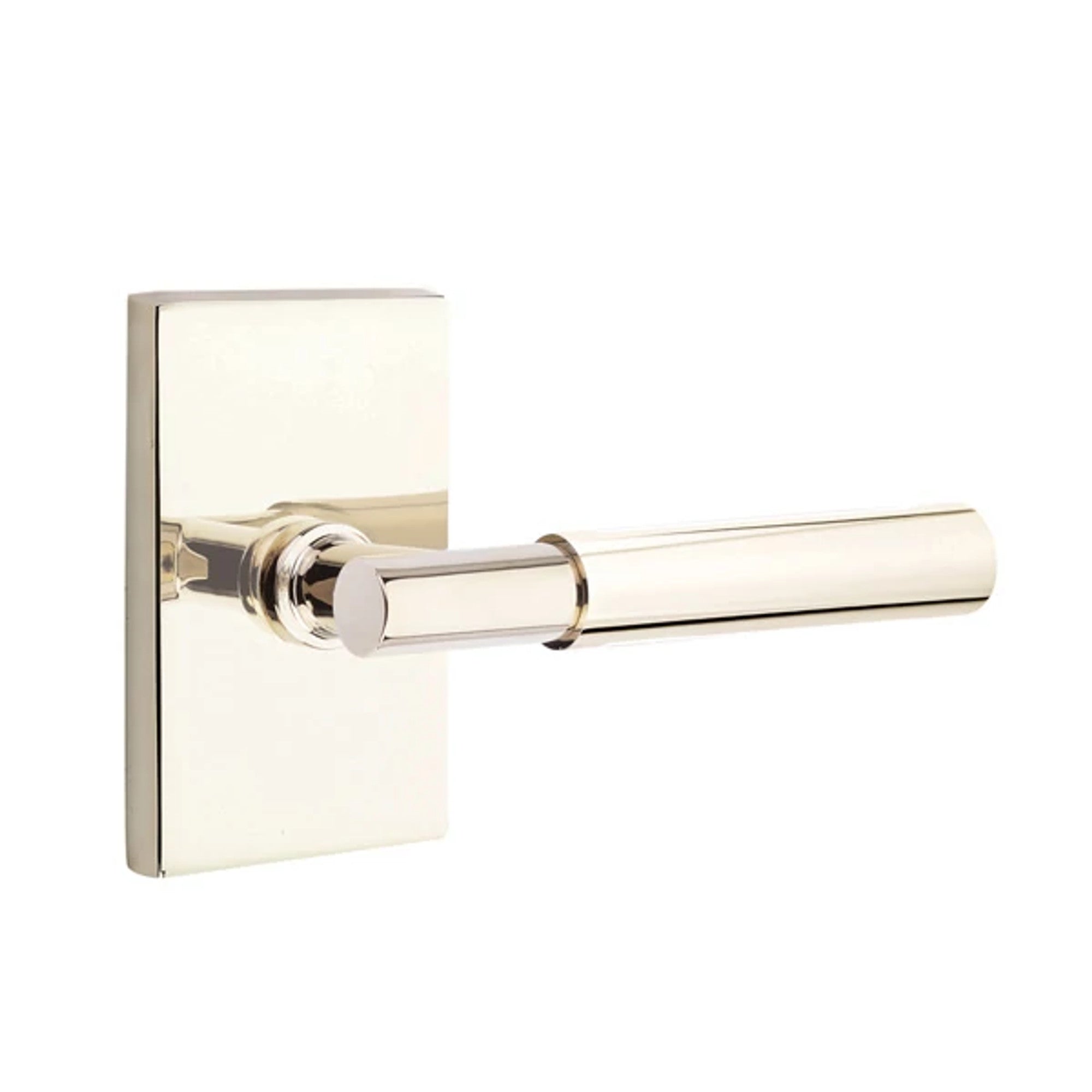

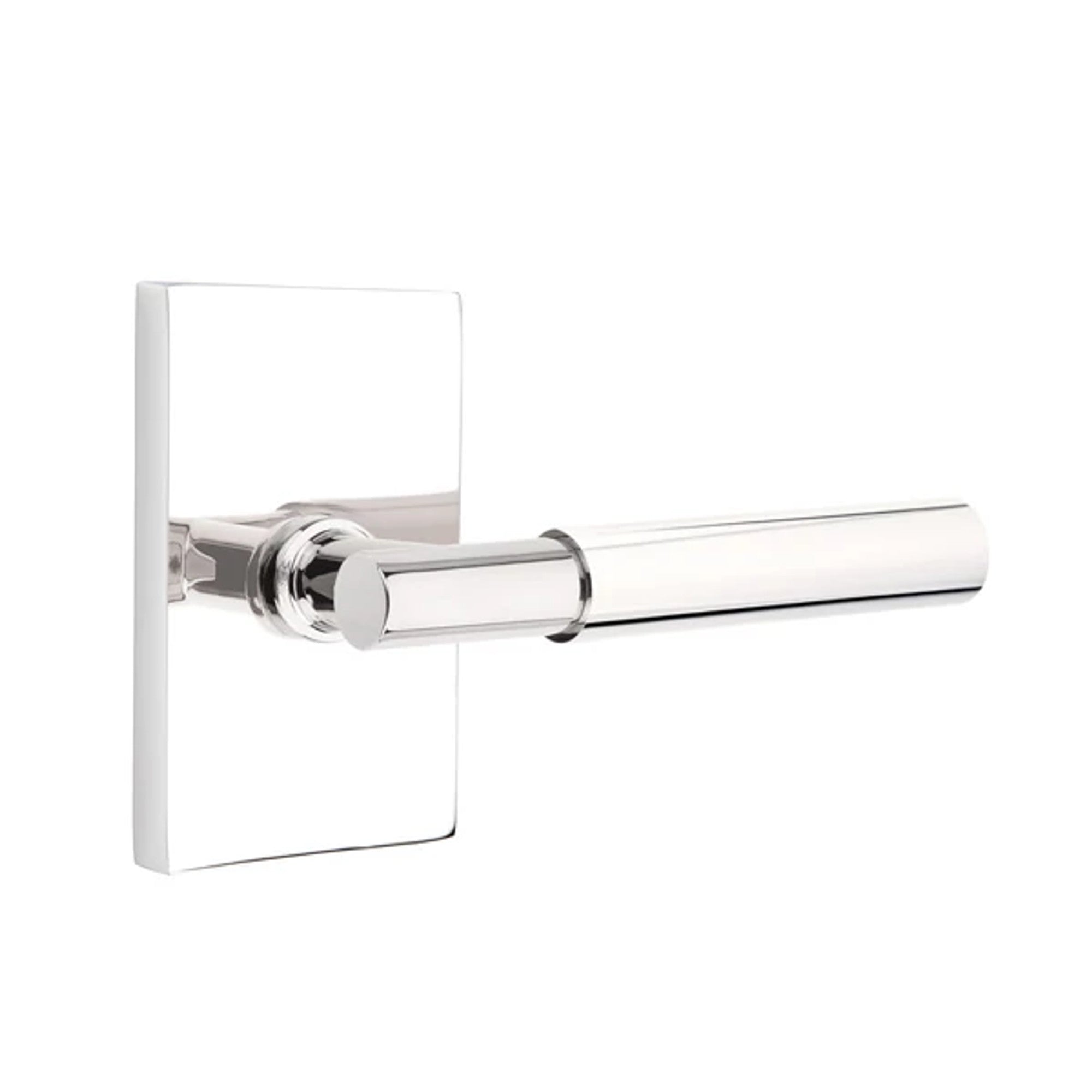

| Modern Rectangular Rosette | |||
| Satin Nickel | 5112MYLLHUS15 5112MYLRHUS15 |
5212MYLLHUS15 5212MYLRHUS15 |
5052MYLUS15 |
| Polished Nickel | 5112MYLLHUS14 5112MYLRHUS14 |
5212MYLLHUS14 5212MYLRHUS14 |
5052MYLUS14 |
| Polished Chrome | 5112MYLLHUS26 5112MYLRHUS26 |
5212MYLLHUS26 5212MYLRHUS26 |
5052MYLUS26 |
| Satin Brass | 5112MYLLHUS4 5112MYLRHUS4 |
5212MYLLHUS4 5212MYLRHUS4 |
5052MYLUS4 |

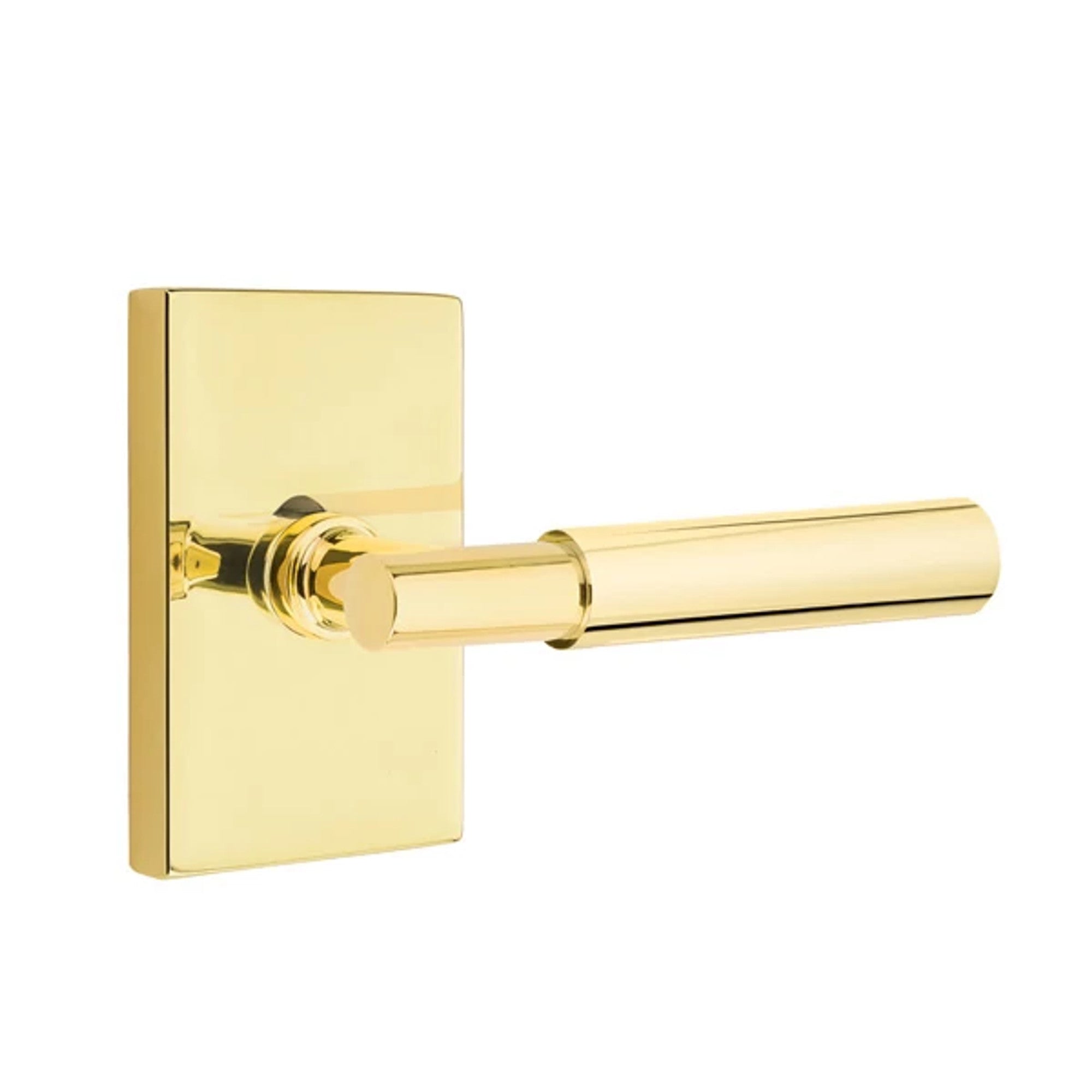

| Unlacquered Brass | 5112MYLLHUS3NL 5112MYLRHUS3NL |
5212MYLLHUS3NL 5212MYLRHUS3NL |
5052MYLUS3NL |
| Oil Rubbed Bronze | 5112MYLLHUS10B 5112MYLRHUS10B |
5212MYLLHUS10B 5212MYLRHUS10B |
5052MYLUS10B |
| Flat Black | 5112MYLLHUS19 5112MYLRHUS19 |
5212MYLLHUS19 5212MYLRHUS19 |
5052MYLUS19 |

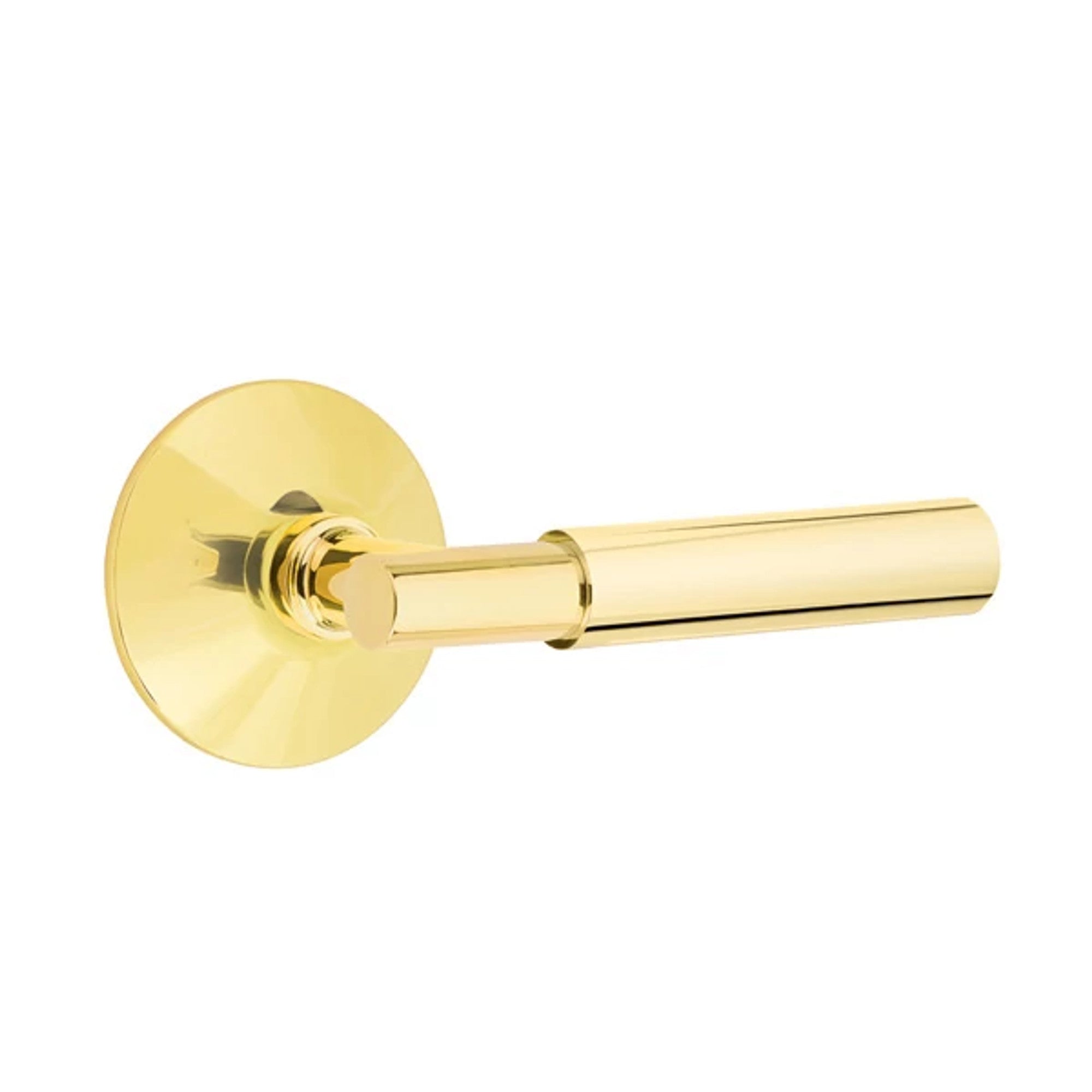

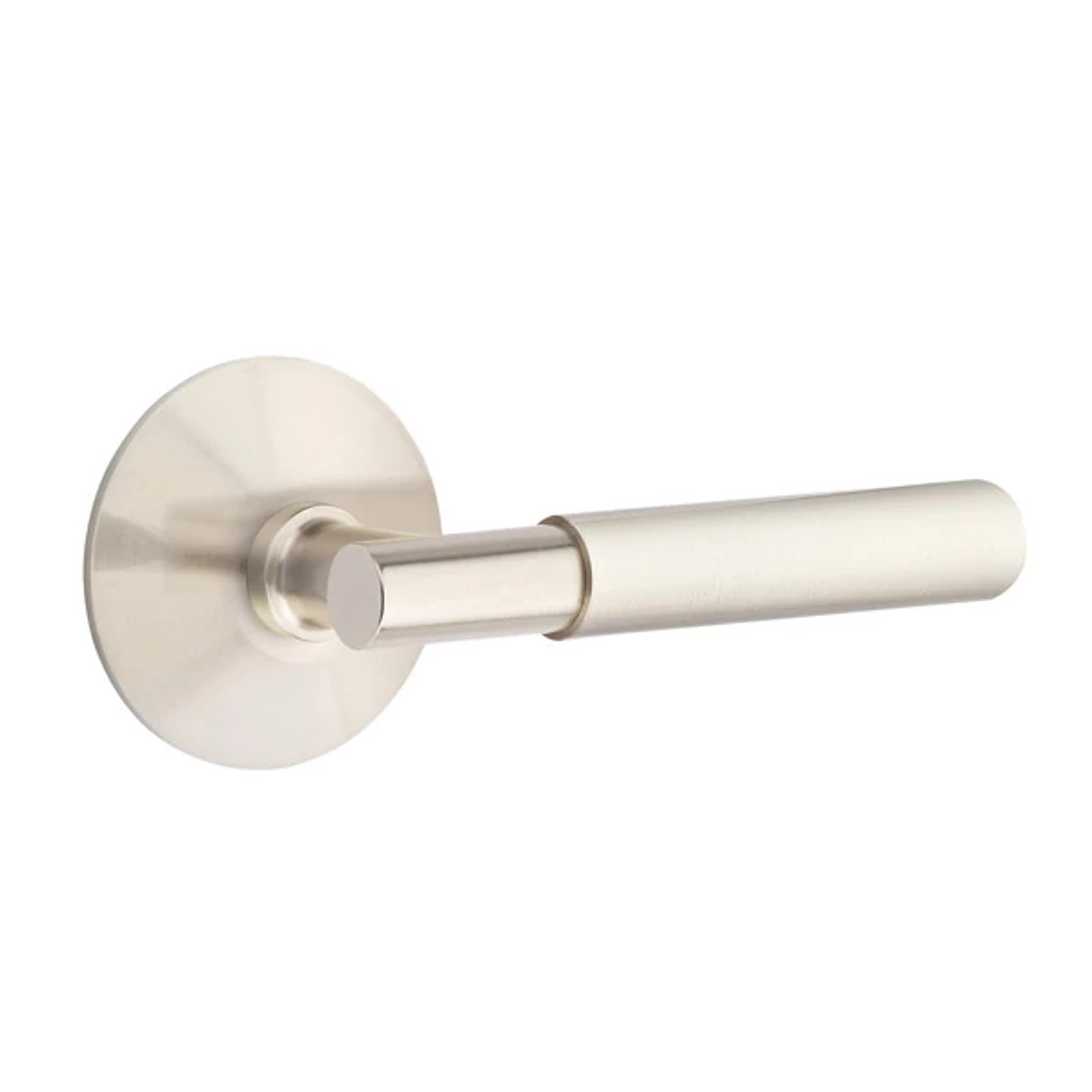

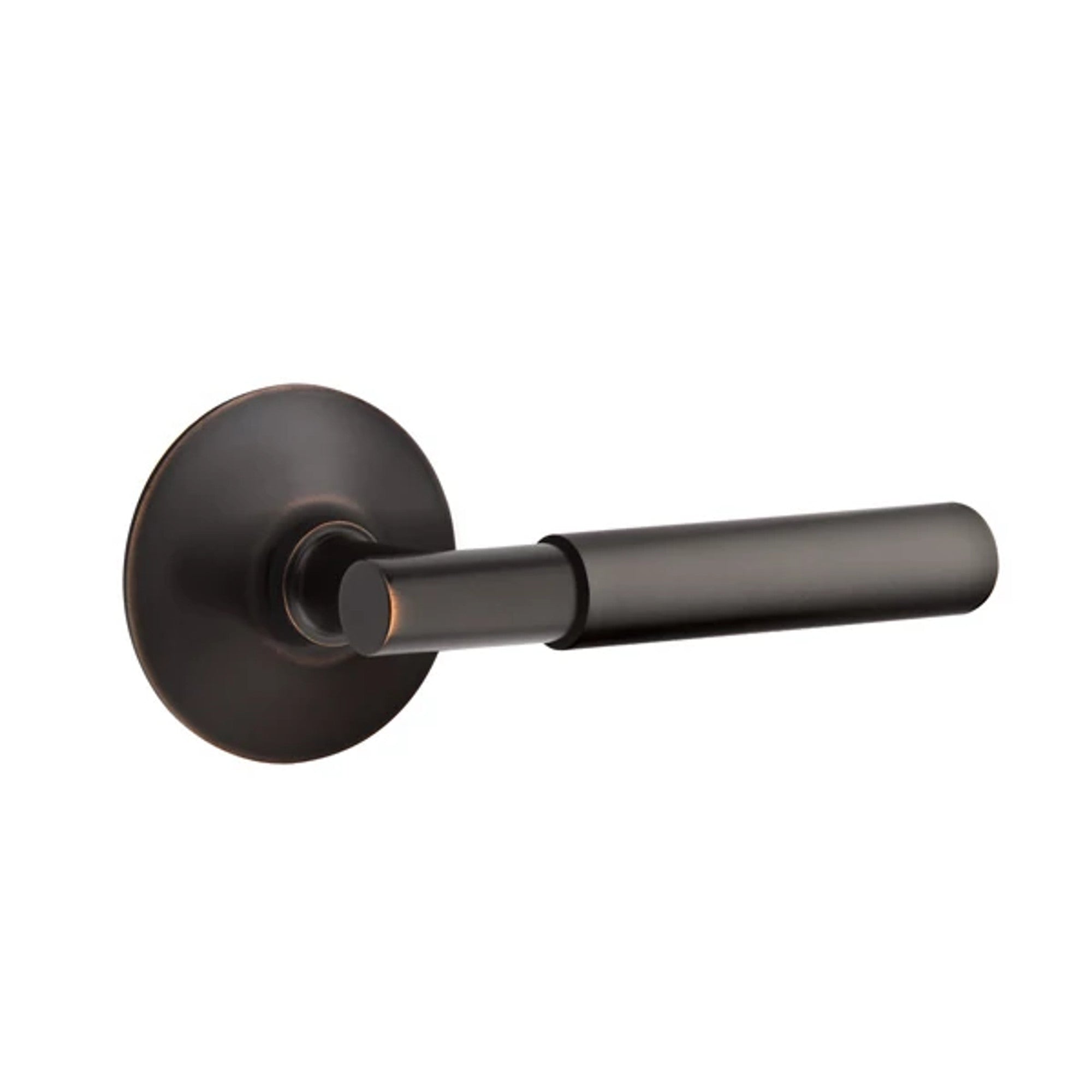

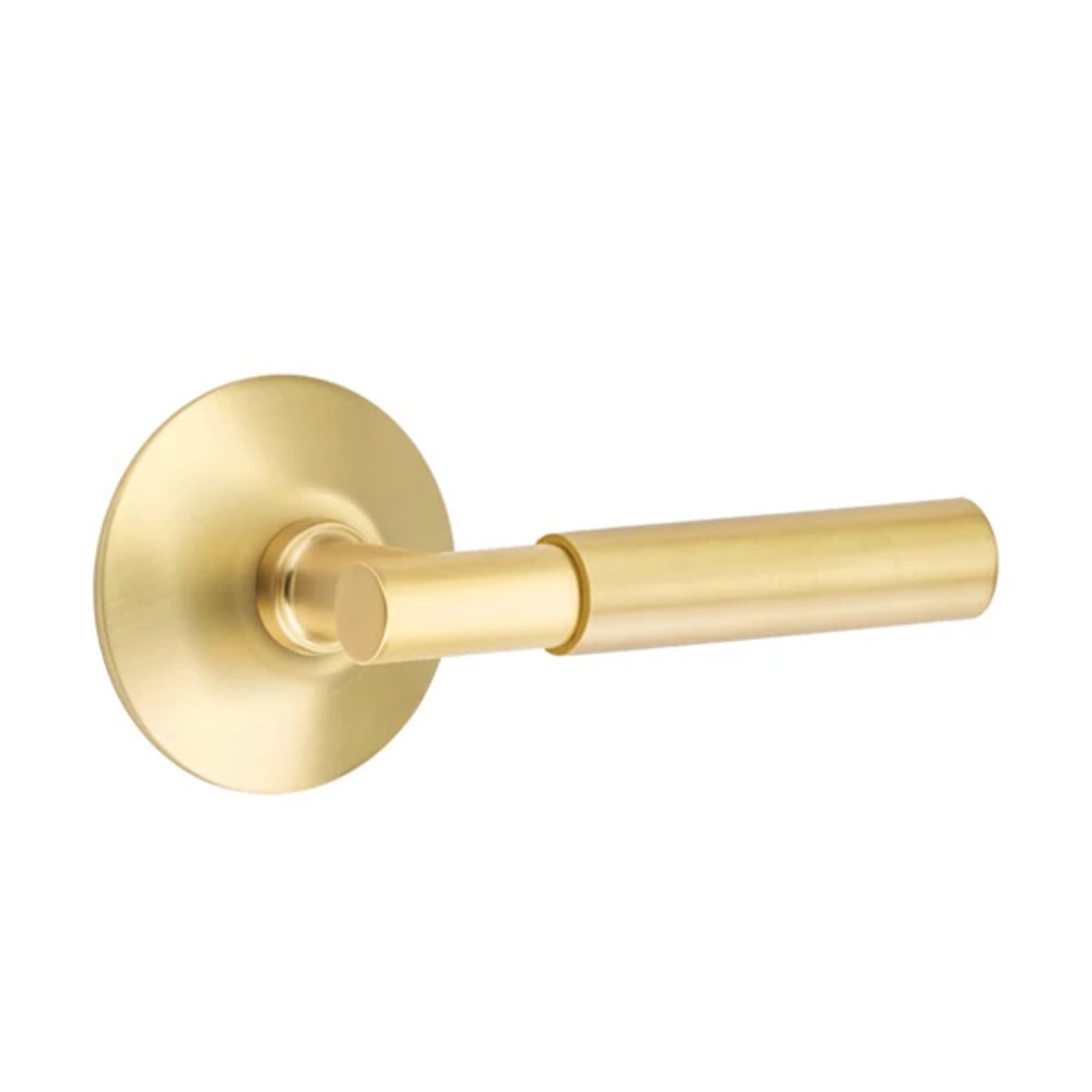

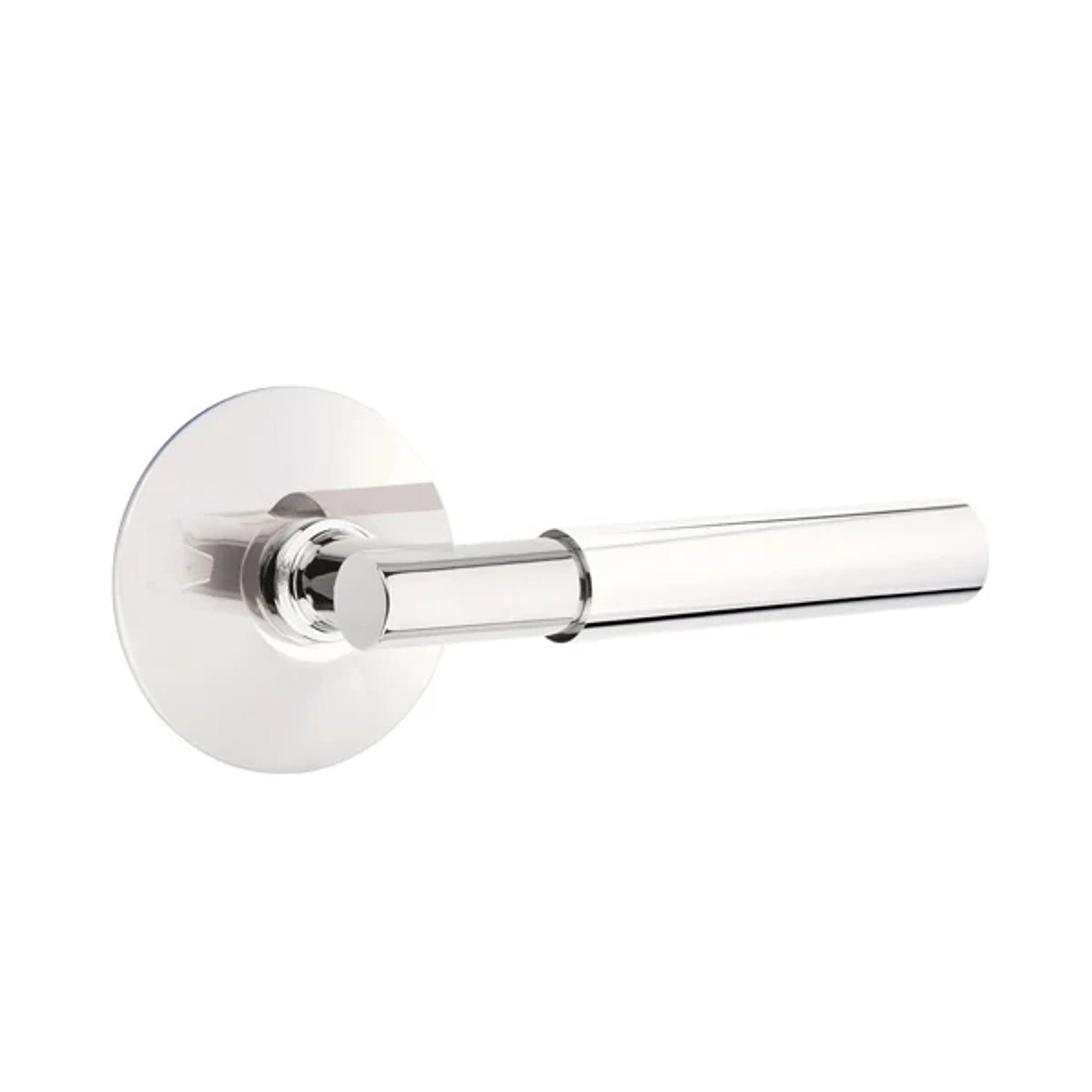

| Modern Rosette | |||
| Satin Nickel | 5107MYLLHUS15 5107MYLRHUS15 |
5207MYLLHUS15 5207MYLRHUS15 |
|
| Polished Chrome | 5107MYLLHUS26 5107MYLRHUS26 |
5207MYLLHUS26 5207MYLRHUS26 |
5057MYLUS26 |
| Satin Brass | 5107MYLLHUS4 5107MYLRHUS4 |
5207MYLLHUS4 5207MYLRHUS4 |
5057MYLUS4 |
| Unlacquered Brass | 5107MYLLHUS3NL 5107MYLRHUS3NL |
5207MYLLHUS3NL 5207MYLRHUS3NL |
5057MYLUS3NL |
| Oil Rubbed Bronze | 5107MYLLHUS10B 5107MYLRHUS10B |
5207MYLLHUS10B 5207MYLRHUS10B |
|

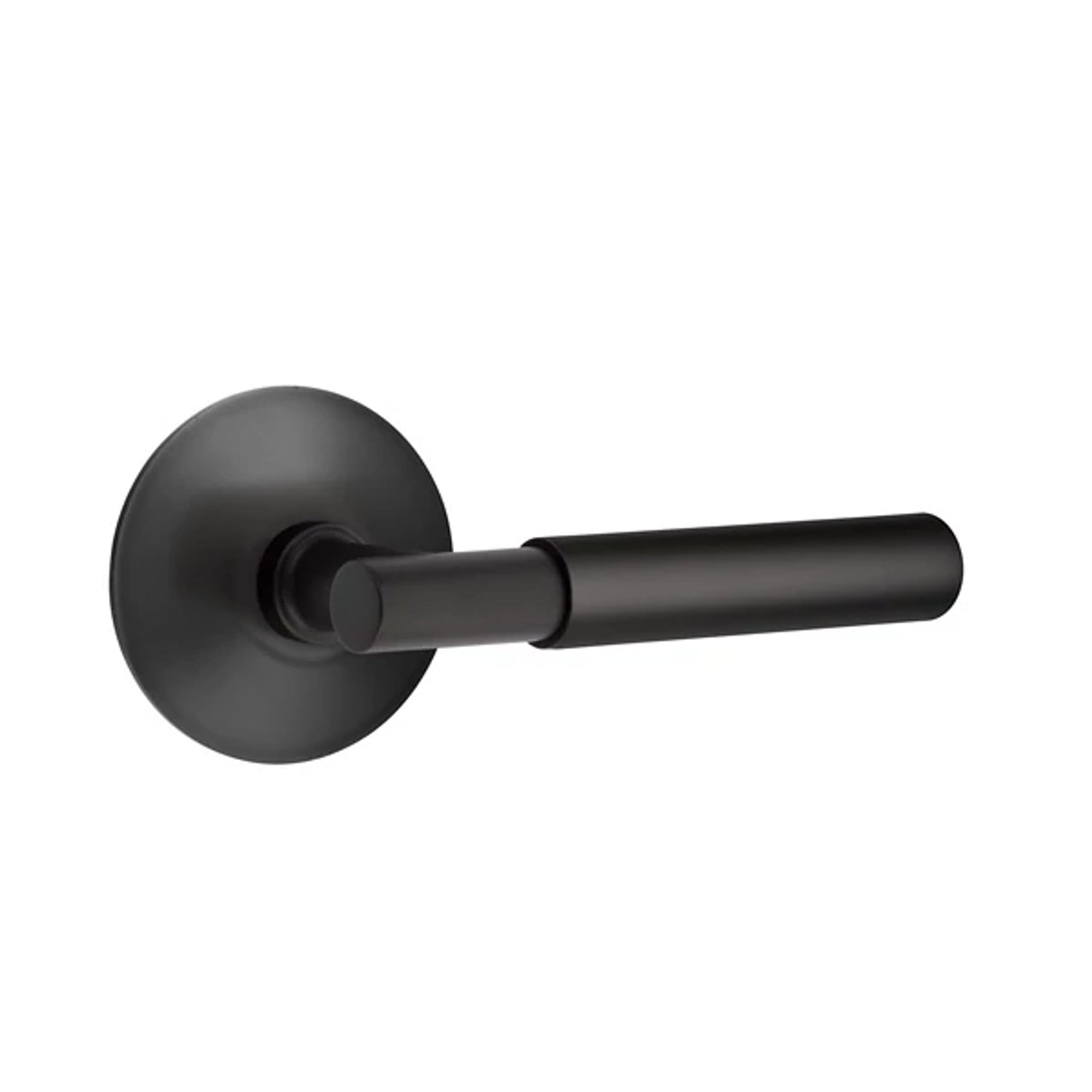

| Flat Black | 5107MYLLHUS19 5107MYLRHUS19 |
5207MYLLHUS19 5207MYLRHUS19 |
5057MYLUS19 |

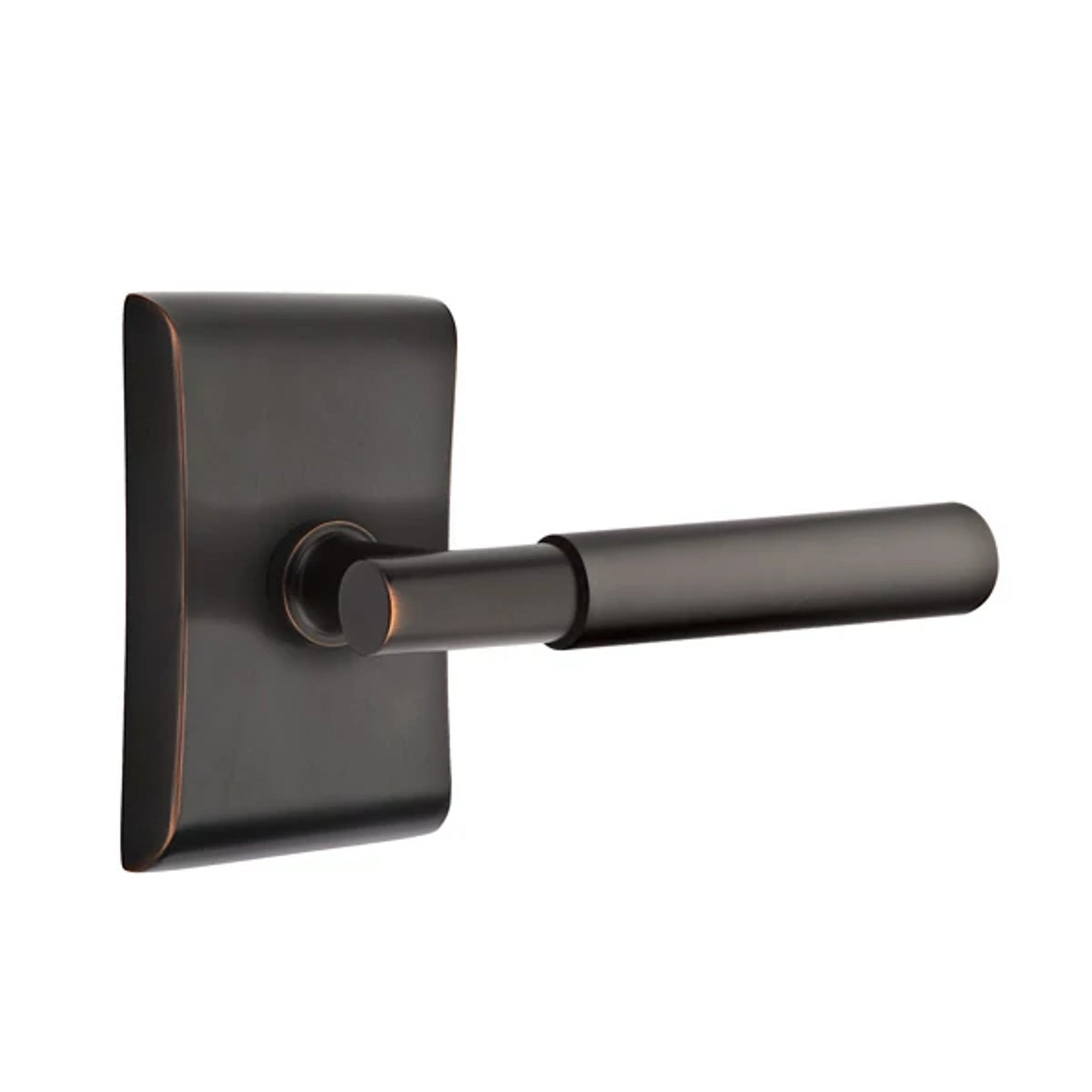

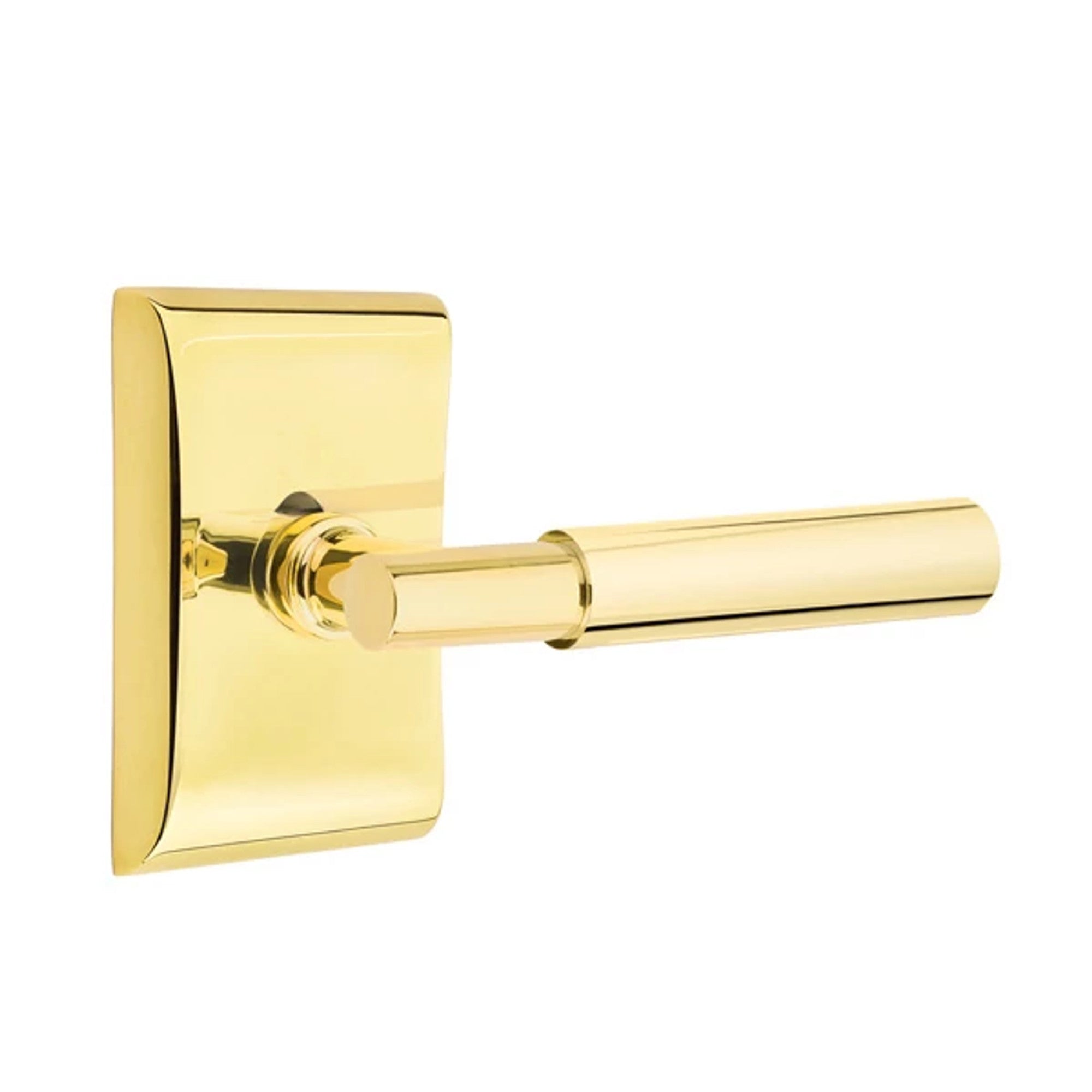

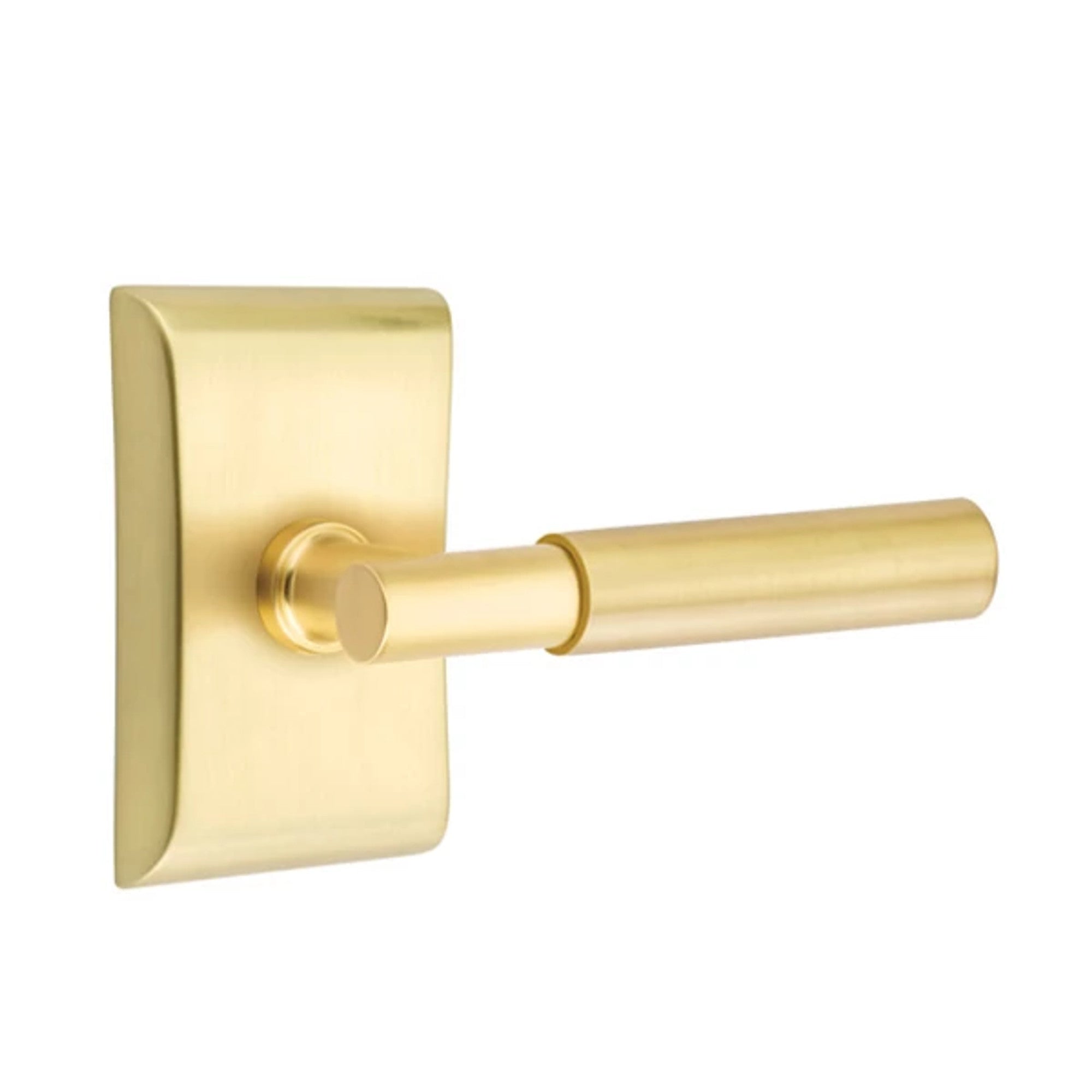

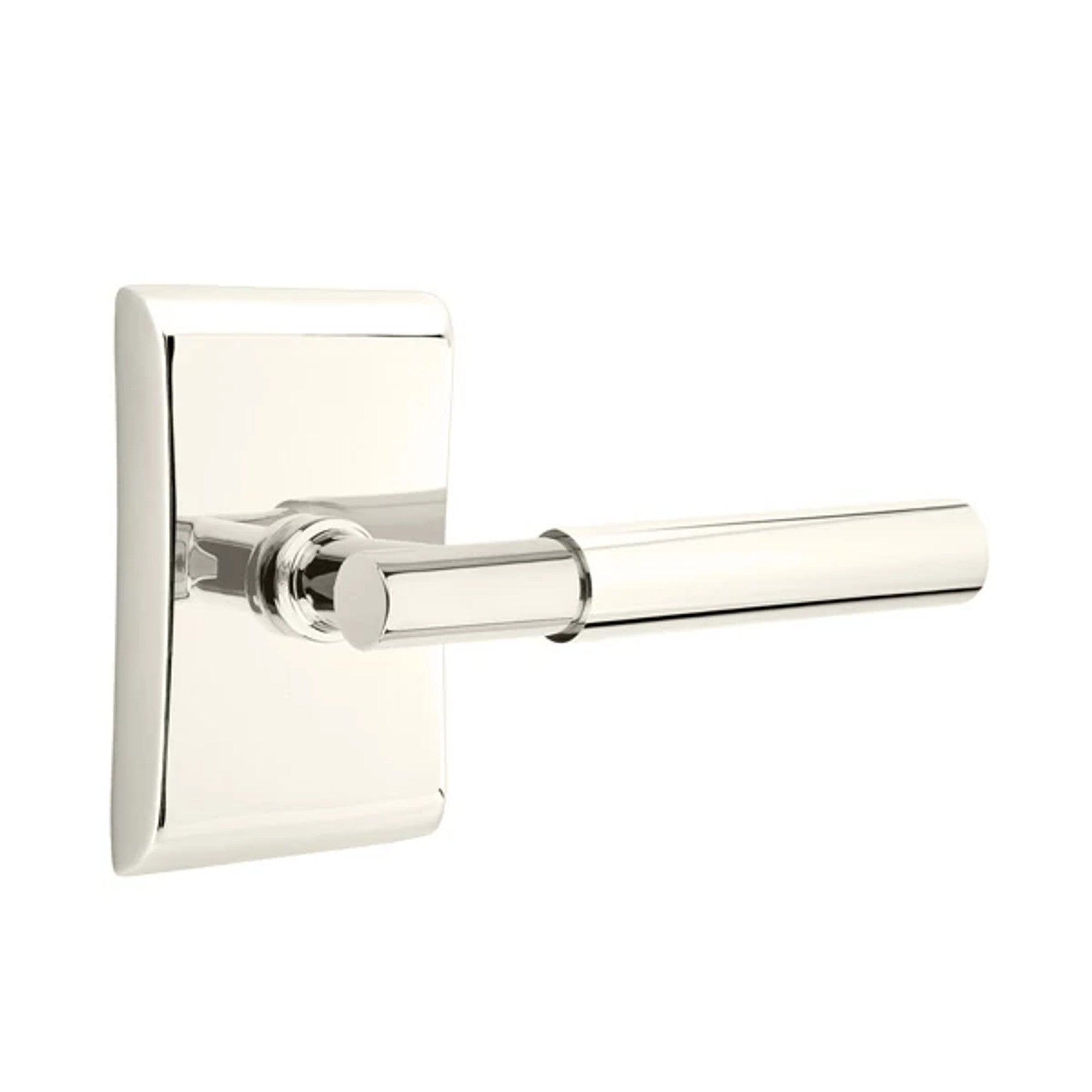

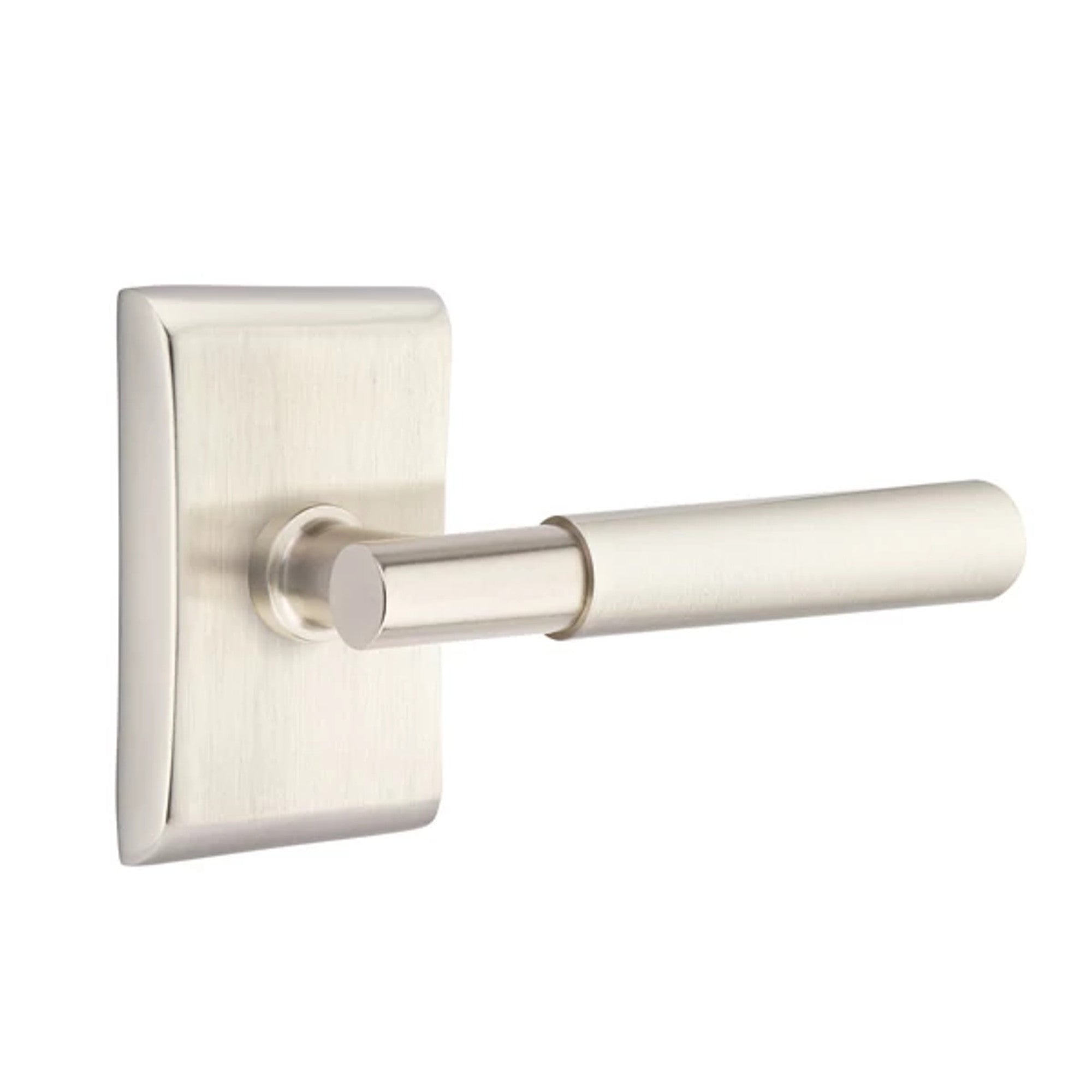

| Neos Rosette | |||
| Satin Nickel | 5111MYLLHUS15 5111MYLRHUS15 |
5211MYLLHUS15 5211MYLRHUS15 |
5051MYLUS15 |
| Polished Nickel | 5111MYLLHUS14 5111MYLRHUS14 |
5211MYLLHUS14 5211MYLRHUS14 |
5051MYLUS14 |
| Polished Chrome | 5111MYLLHUS26 5111MYLRHUS26 |
5211MYLLHUS26 5211MYLRHUS26 |
5051MYLUS26 |
| Satin Brass | 5111MYLLHUS4 5111MYLRHUS4 |
5211MYLLHUS4 5211MYLRHUS4 |
5051MYLUS4 |
| Unlacquered Brass | 5111MYLLHUS3NL 5111MYLRHUS3NL |
5211MYLLHUS3NL 5211MYLRHUS3NL |
5051MYLUS3NL |
| Oil Rubbed Bronze | 5111MYLLHUS10B 5111MYLRHUS10B |
5211MYLLHUS10B 5211MYLRHUS10B |
5051MYLUS10B |
| Flat Black | 5111MYLLHUS19 5111MYLRHUS19 |
5211MYLLHUS19 5211MYLRHUS19 |
5051MYLUS19 |

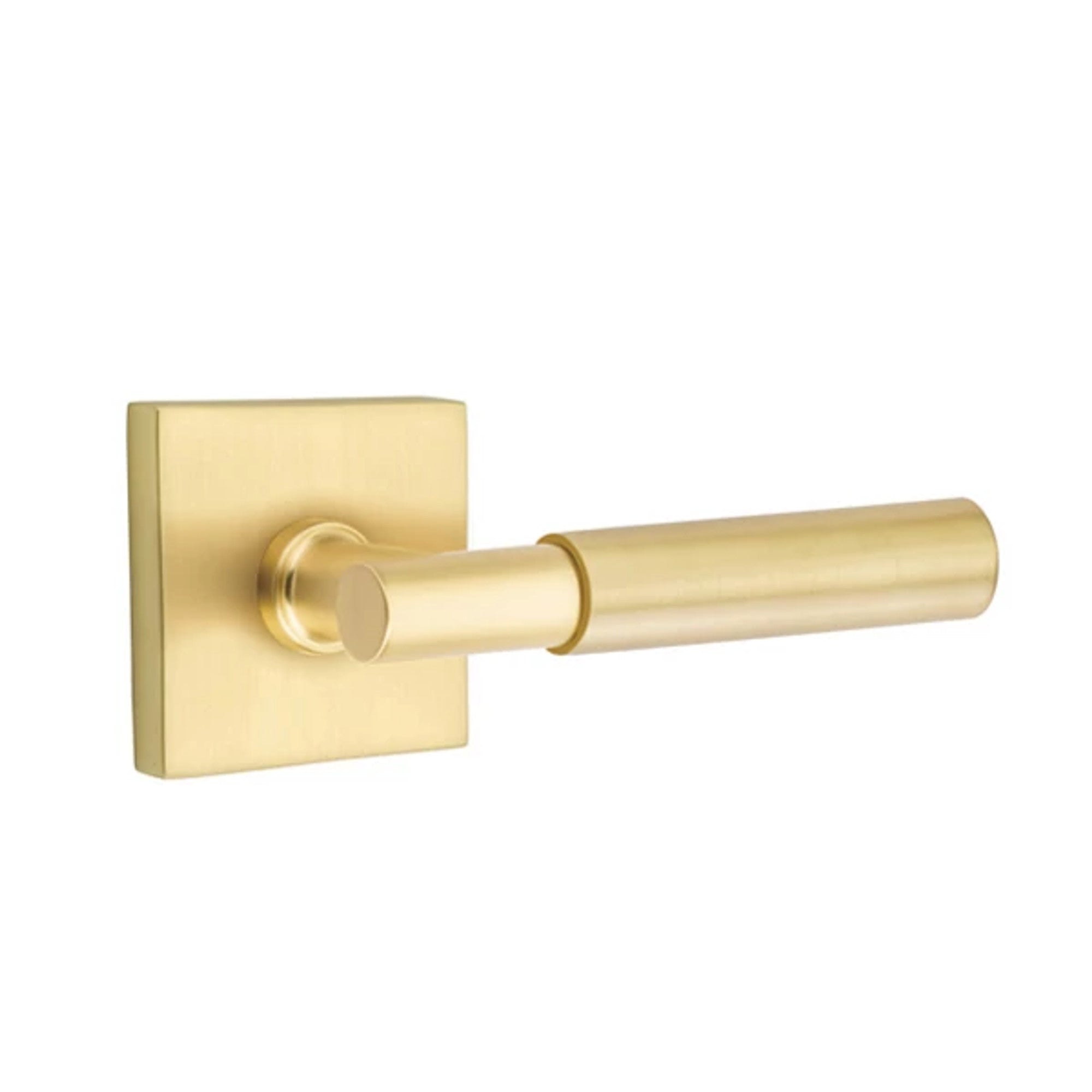

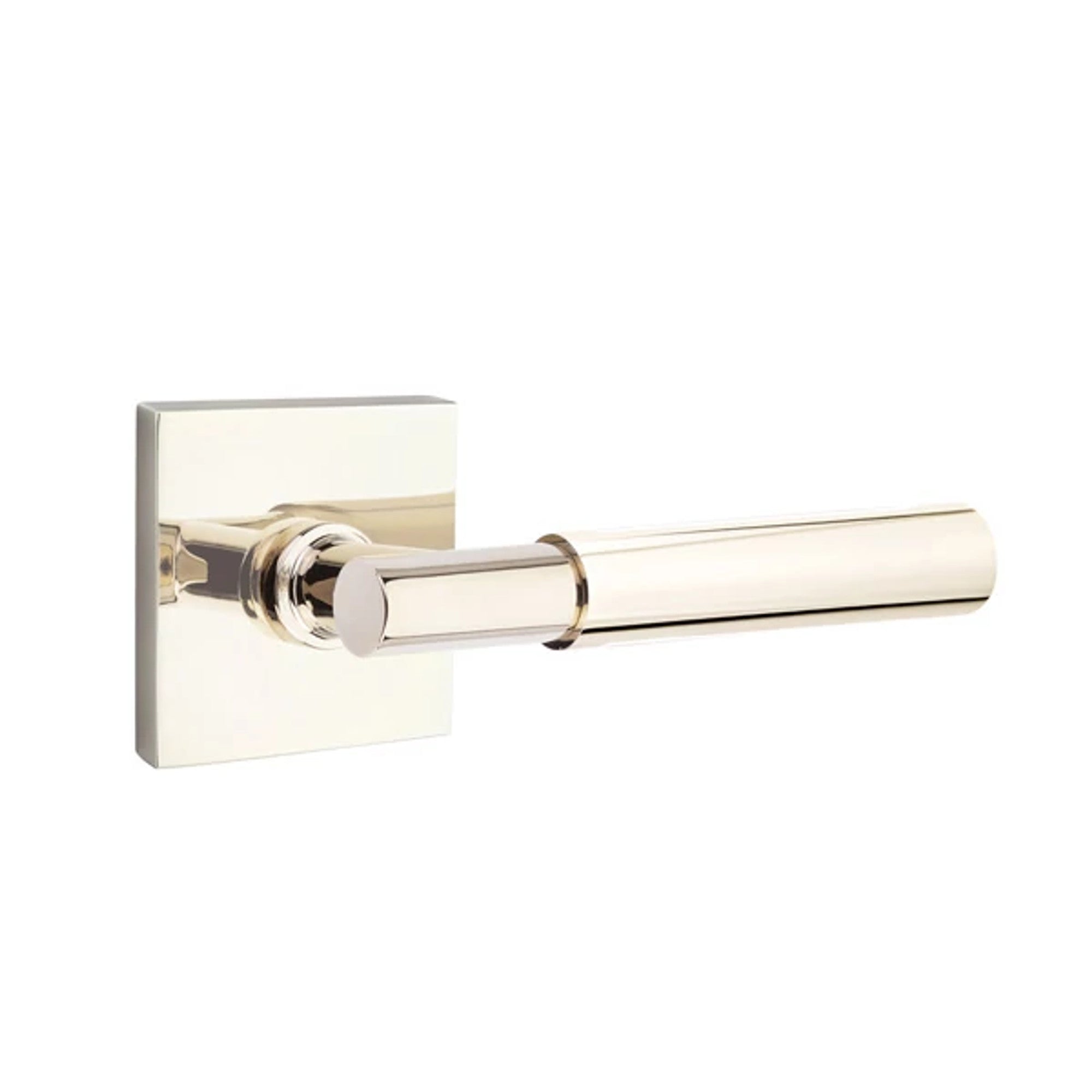

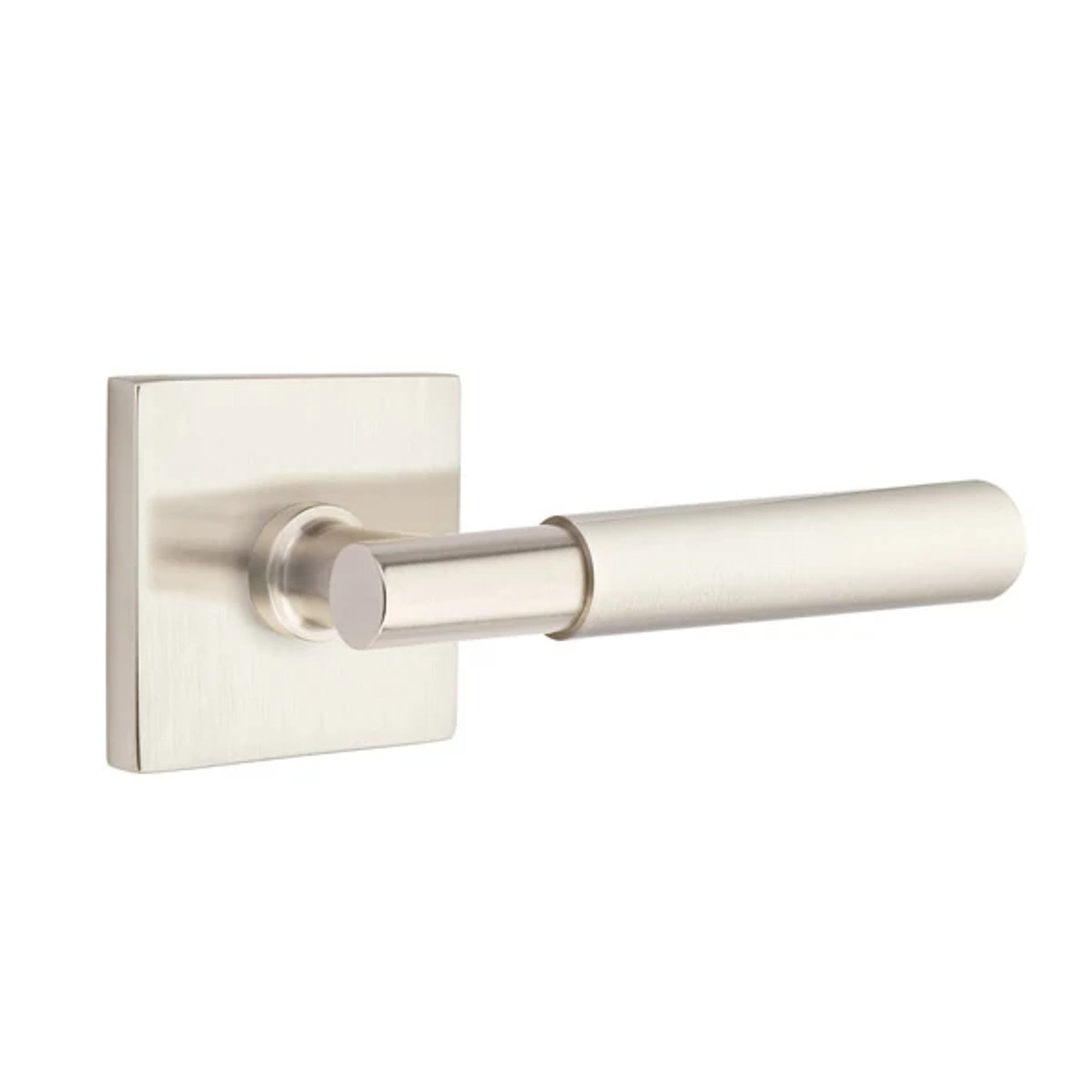

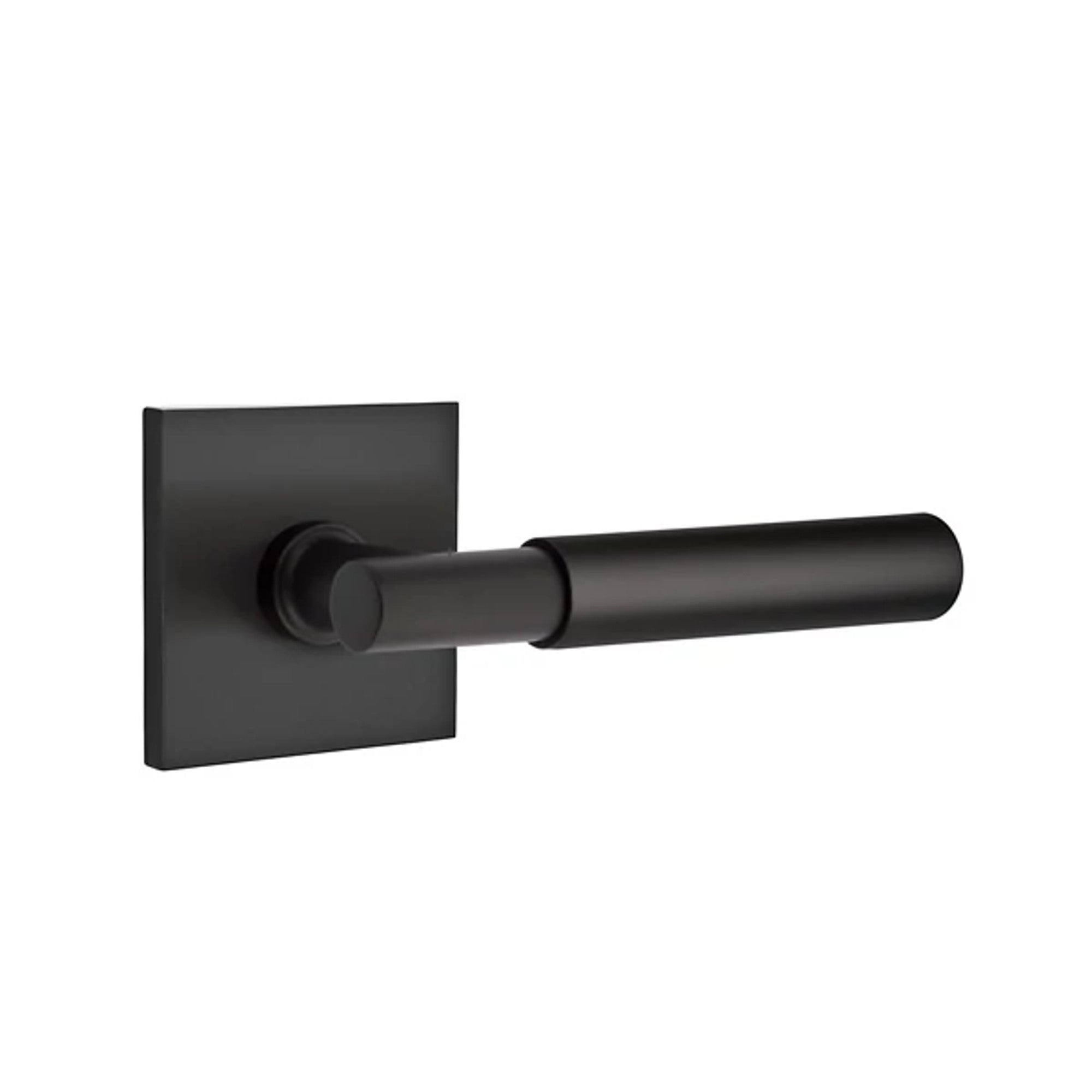

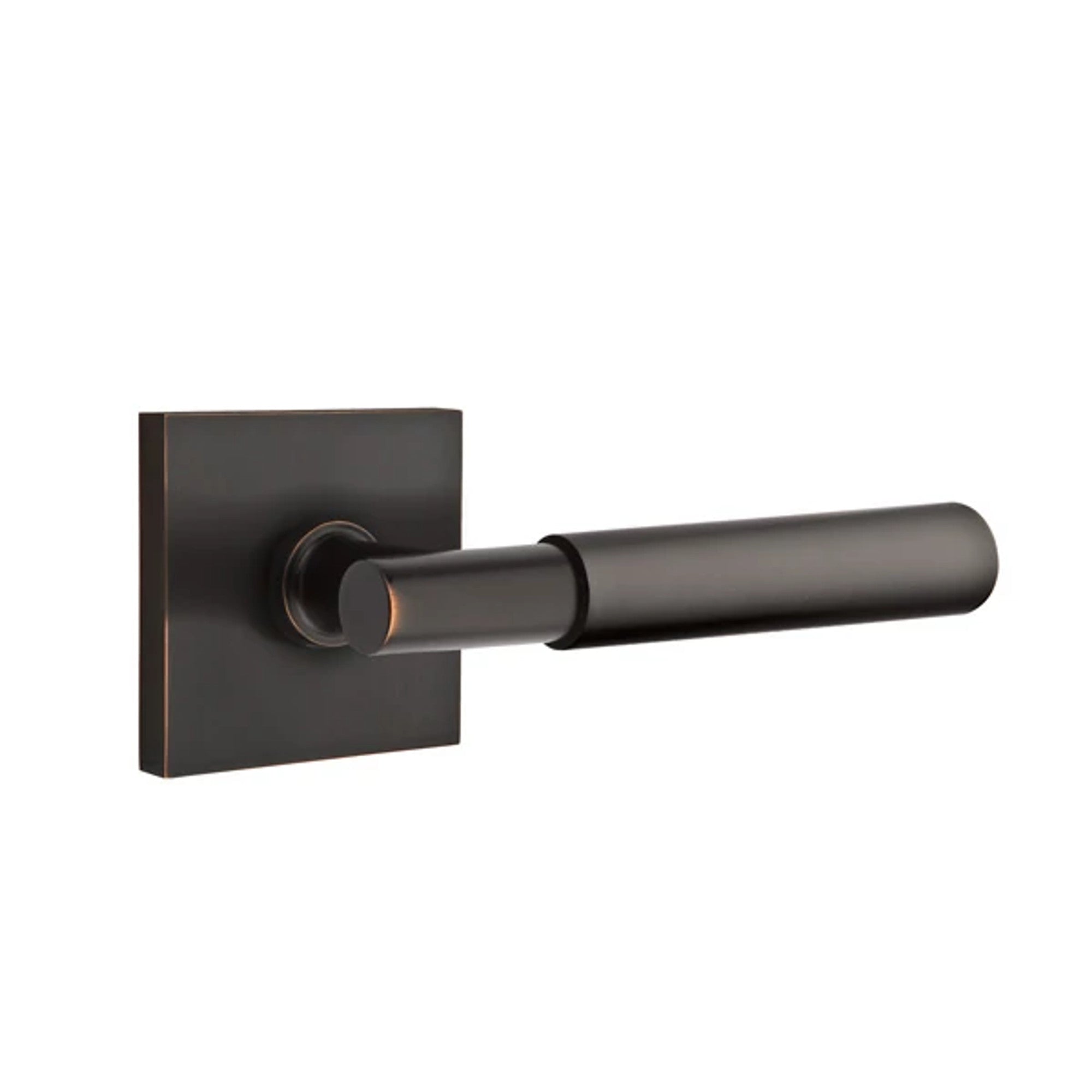

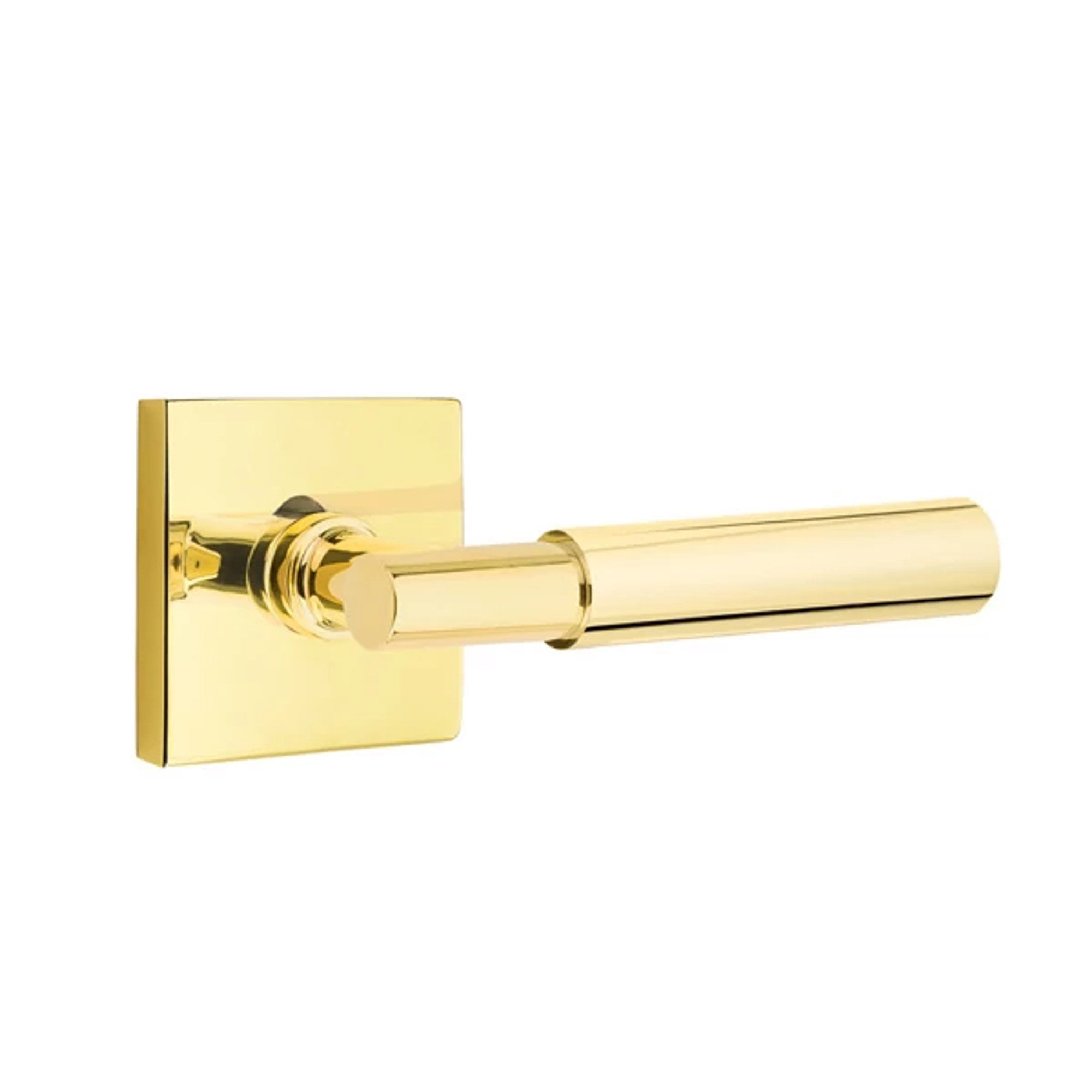

| Square Rosette | |||
| Satin Nickel | 5110MYLLHUS15 5110MYLRHUS15 |
5210MYLLHUS15 5210MYLRHUS15 |
5050MYLUS15 |
| Polished Nickel | 5110MYLLHUS14 5110MYLRHUS14 |
5210MYLLHUS14 5210MYLRHUS14 |
5050MYLUS14 |

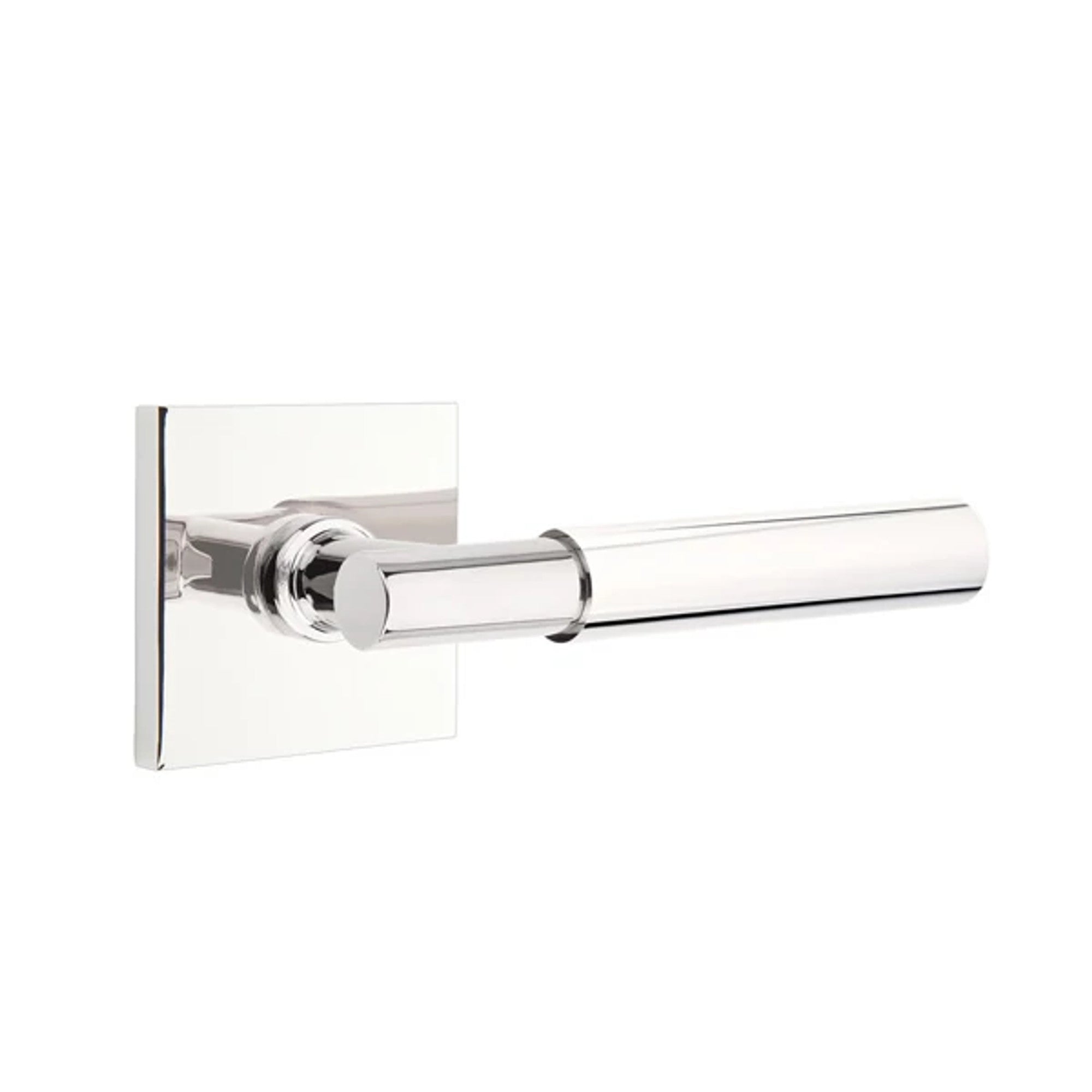

| Polished Chrome | 5110MYLLHUS26 5110MYLRHUS26 |
5210MYLLHUS26 5210MYLRHUS26 |
5050MYLUS26 |
| Satin Brass | 5110MYLLHUS4 5110MYLRHUS4 |
5210MYLLHUS4 5210MYLRHUS4 |
5050MYLUS4 |
| Unlacquered Brass | 5110MYLLHUS3NL 5110MYLRHUS3NL |
5210MYLLHUS3NL 5210MYLRHUS3NL |
5050MYLUS3NL |
| Oil Rubbed Bronze | 5110MYLLHUS10B 5110MYLRHUS10B |
5210MYLLHUS10B 5210MYLRHUS10B |
5050MYLUS10B |
| Flat Black | 5110MYLLHUS19 5110MYLRHUS19 |
5210MYLLHUS19 5210MYLRHUS19 |
5050MYLUS19 |

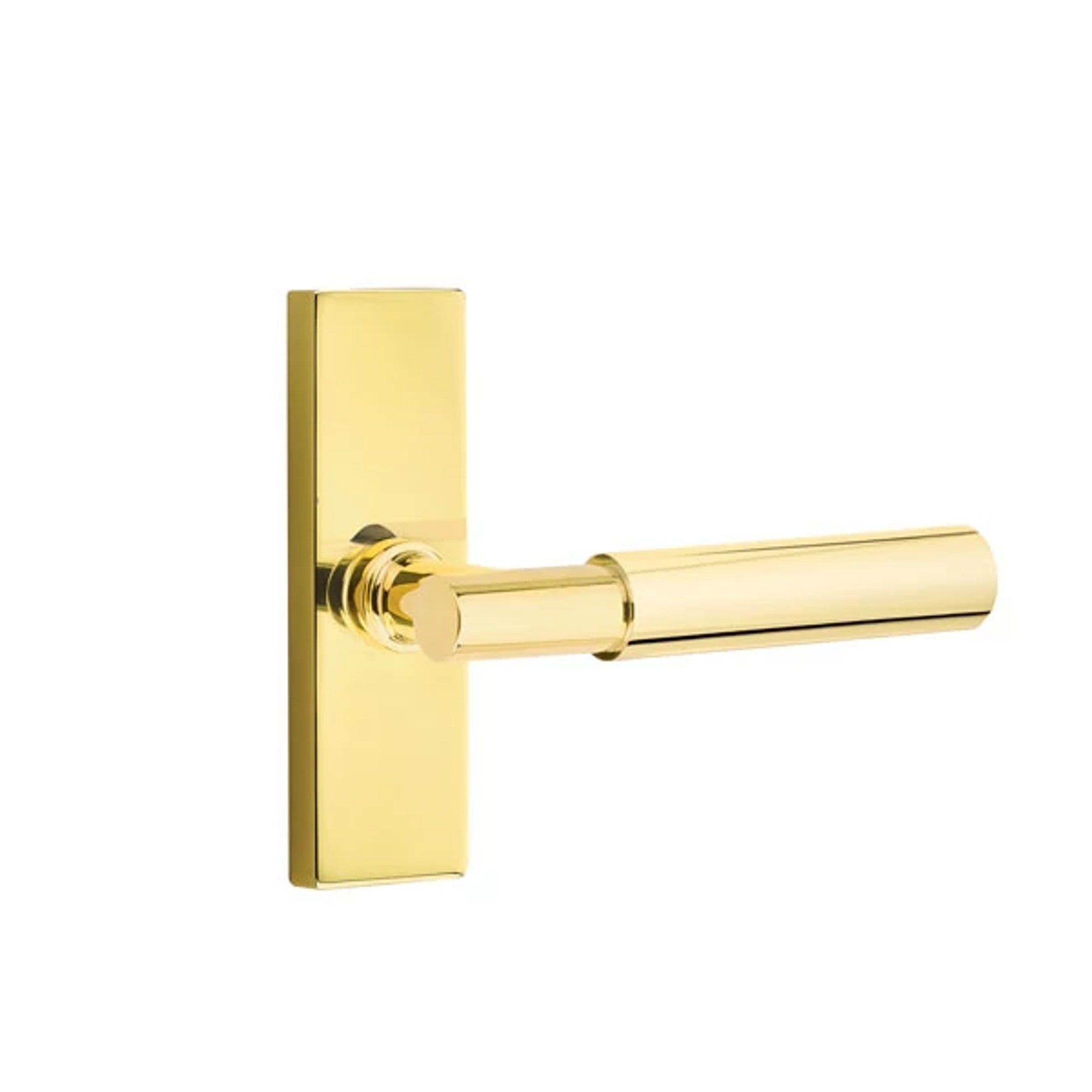

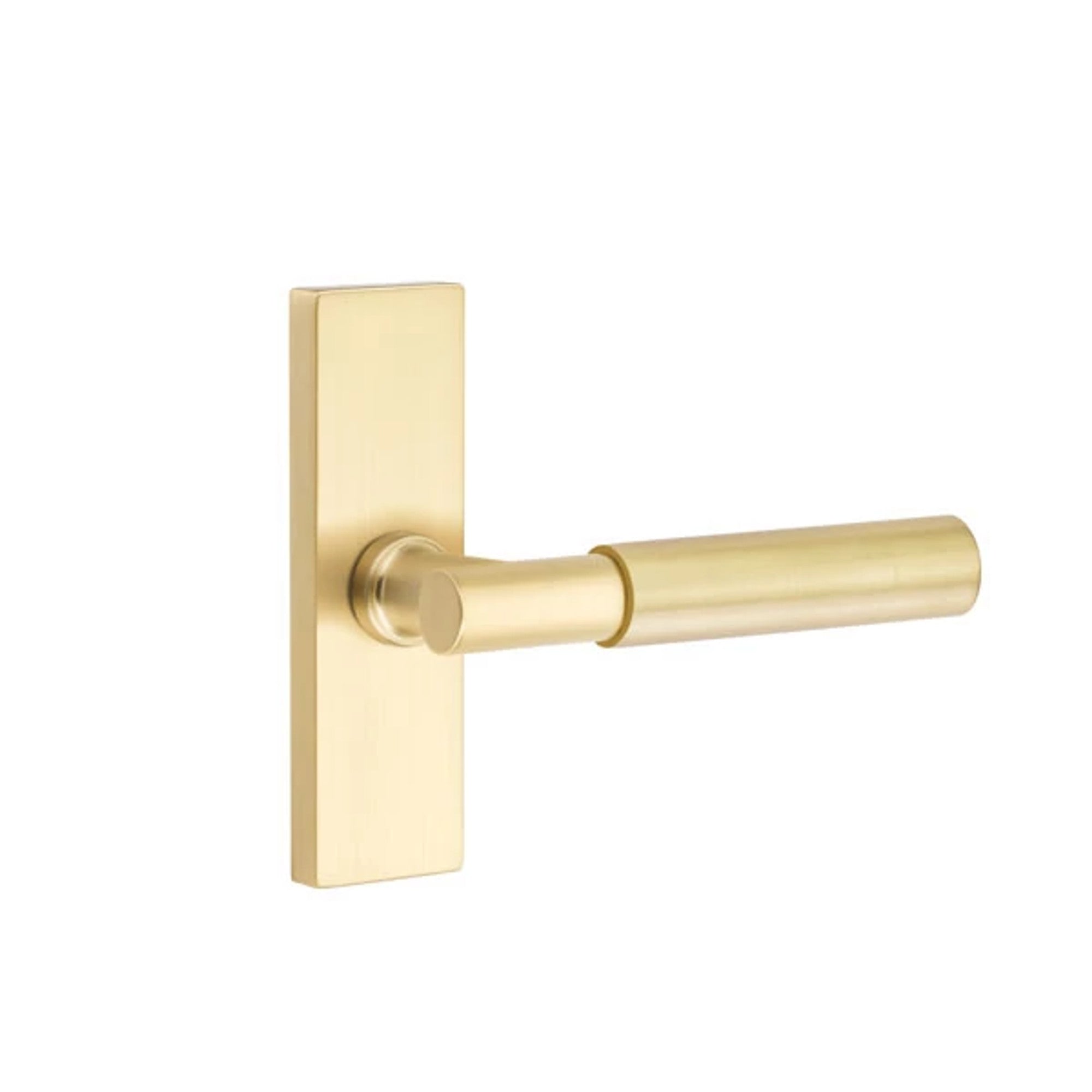

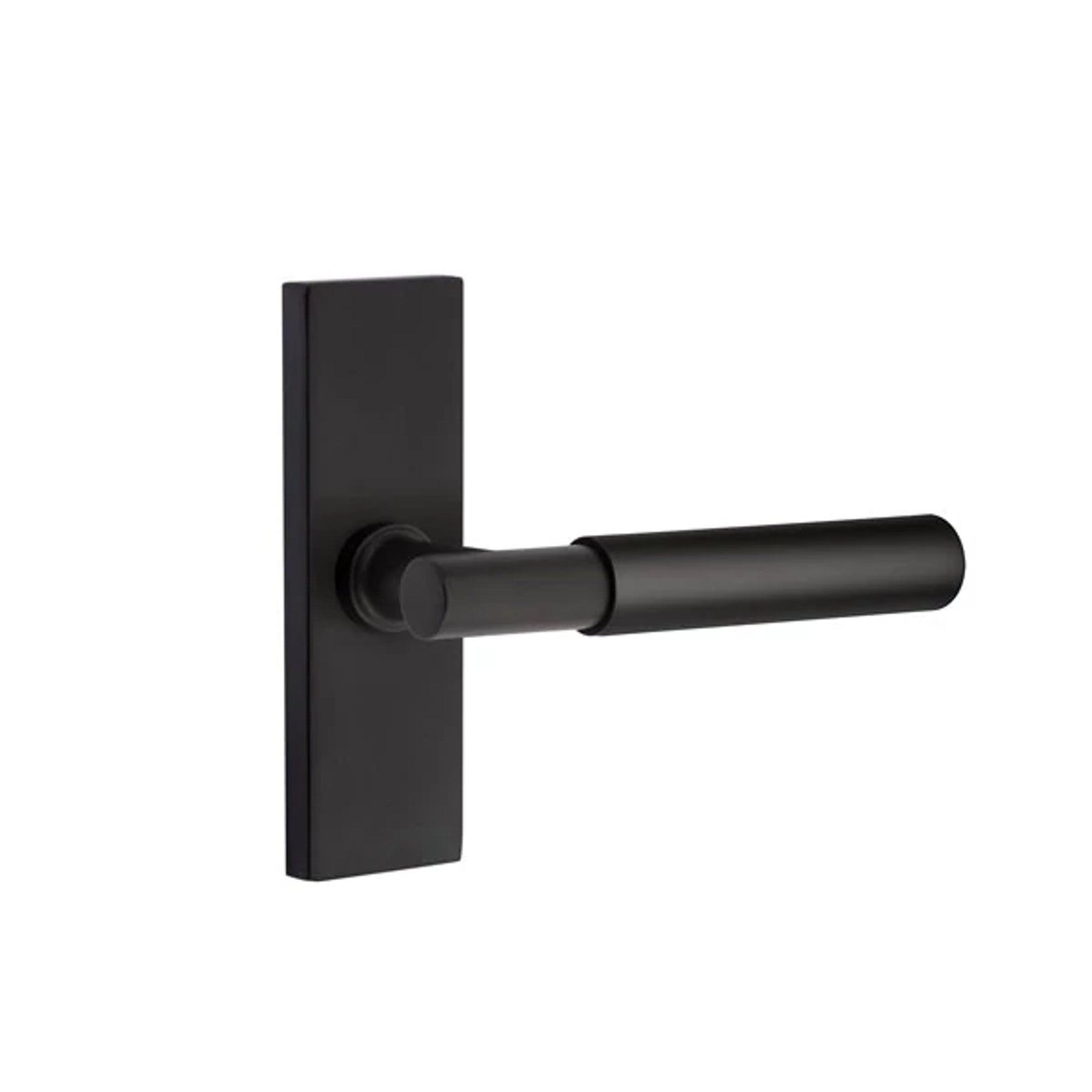

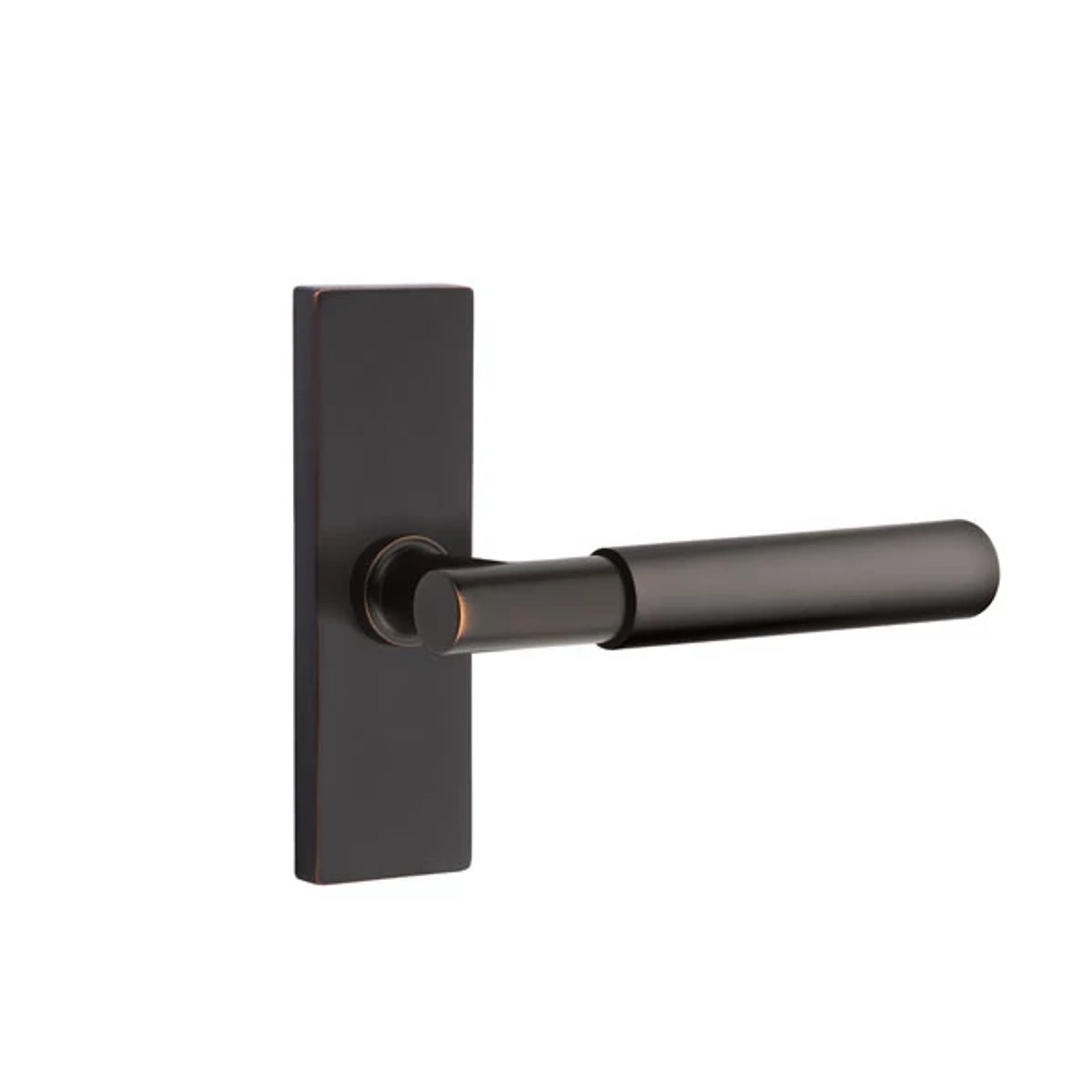

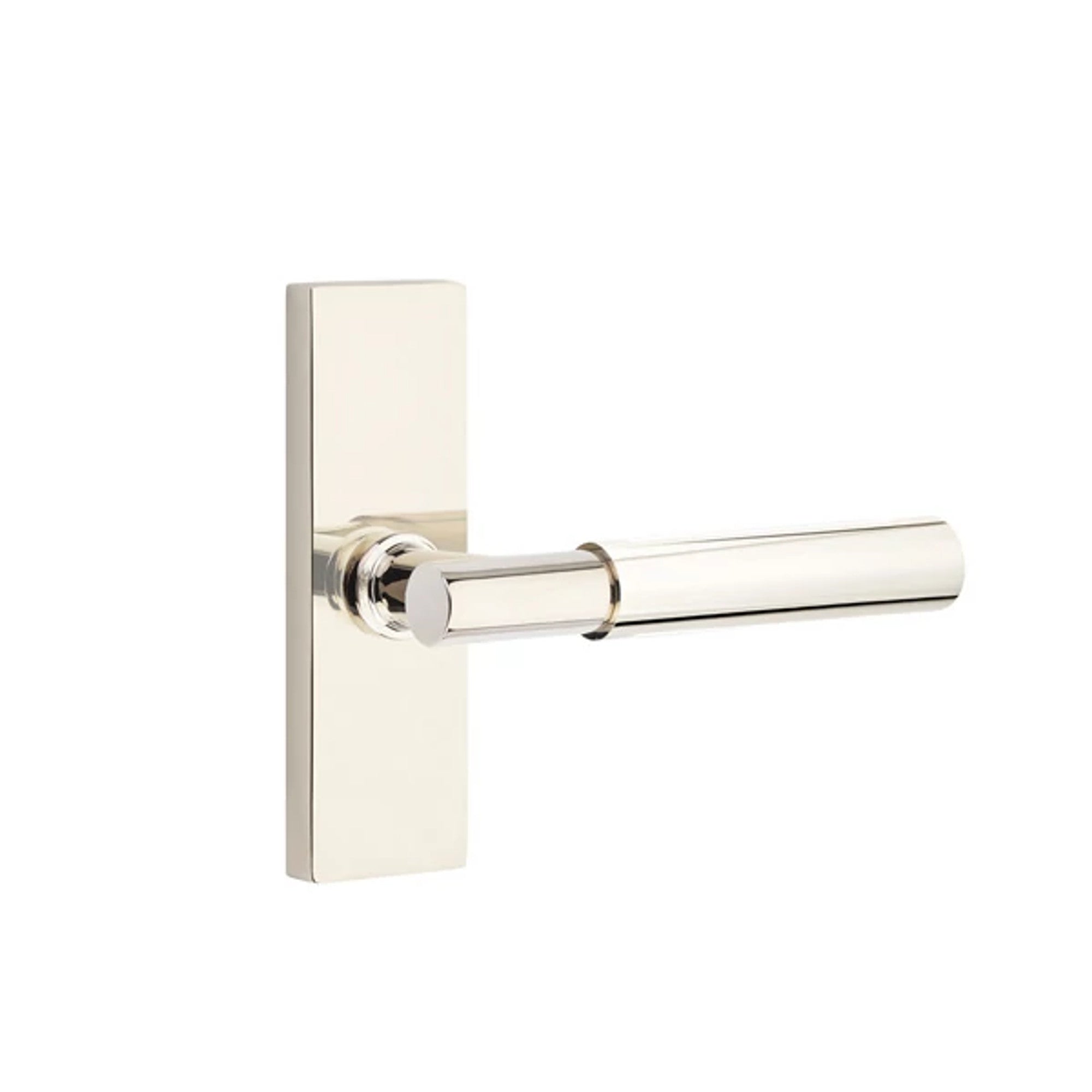

| Stretto 1-1/2" x 5" | |||

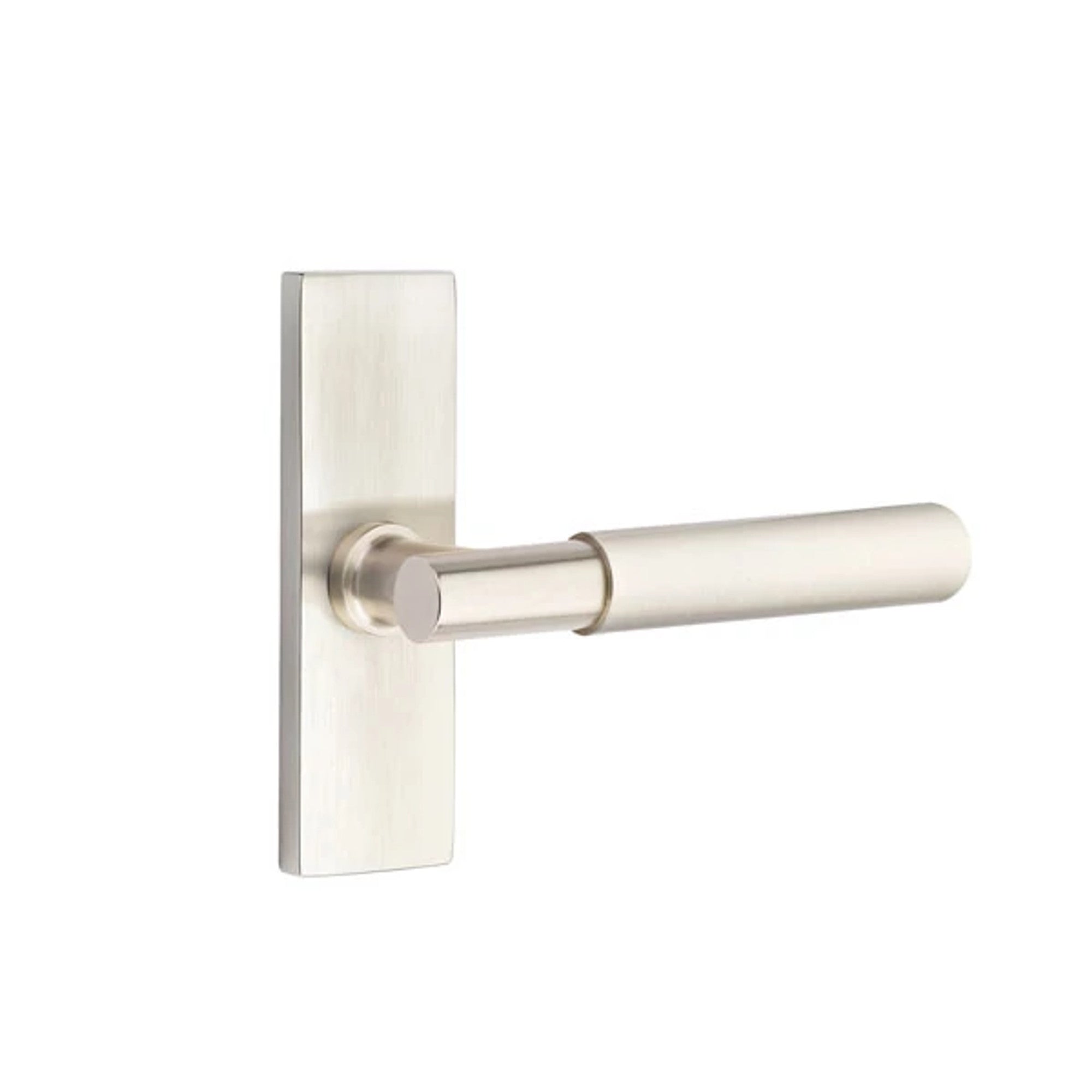

| Satin Nickel | 5507MYLLHUS15 5507MYLRHUS15 |
5007MYLLHUS15 5007MYLRHUS15 |
|
| Polished Nickel | 5507MYLLHUS14 5507MYLRHUS14 |
5007MYLLHUS14 5007MYLRHUS14 |
|

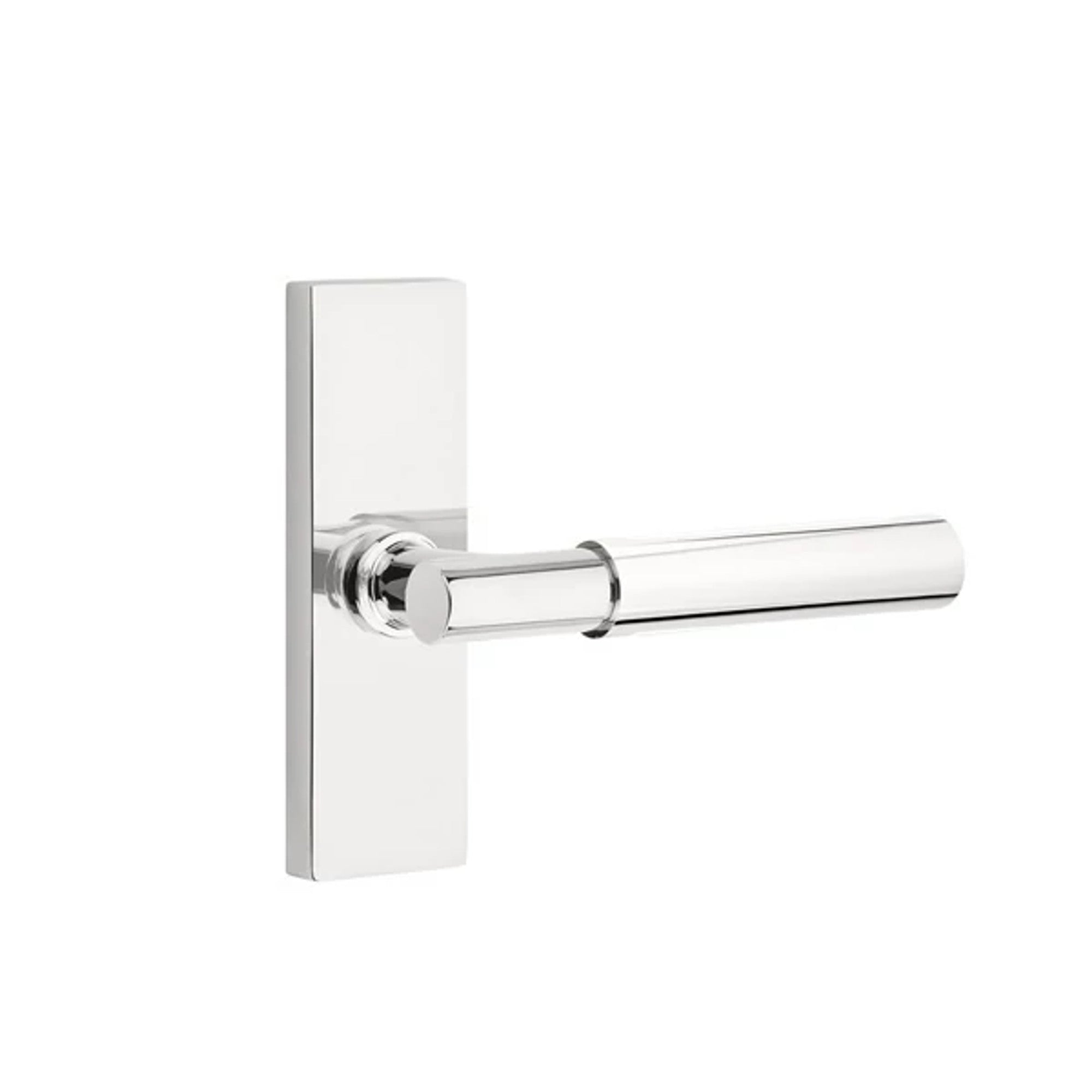

| Polished Chrome | 5507MYLLHUS26 5507MYLRHUS26 |
5007MYLLHUS26 5007MYLRHUS26 |
|
| Satin Brass | 5507MYLLHUS4 5507MYLRHUS4 |
5007MYLLHUS4 5007MYLRHUS4 |
|
| Unlacquered Brass | 5507MYLLHUS3NL 5507MYLRHUS3NL |
5007MYLLHUS3NL 5007MYLRHUS3NL |
|
| Oil Rubbed Bronze | 5507MYLLHUS10B 5507MYLRHUS10B |
5007MYLLHUS10B 5007MYLRHUS10B |
|
| Flat Black | 5507MYLLHUS19 5507MYLRHUS19 |
5007MYLLHUS19 5007MYLRHUS19 |
|

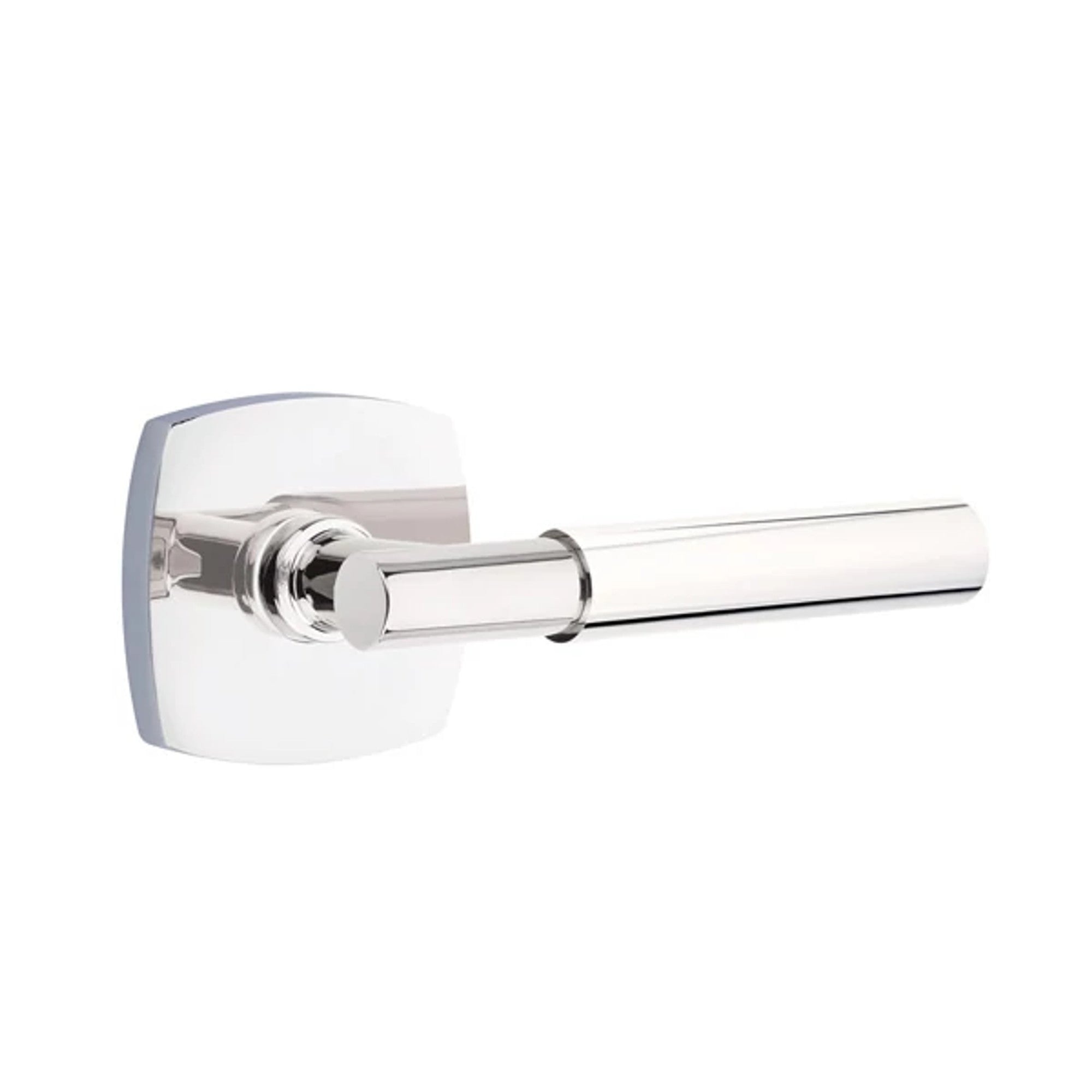

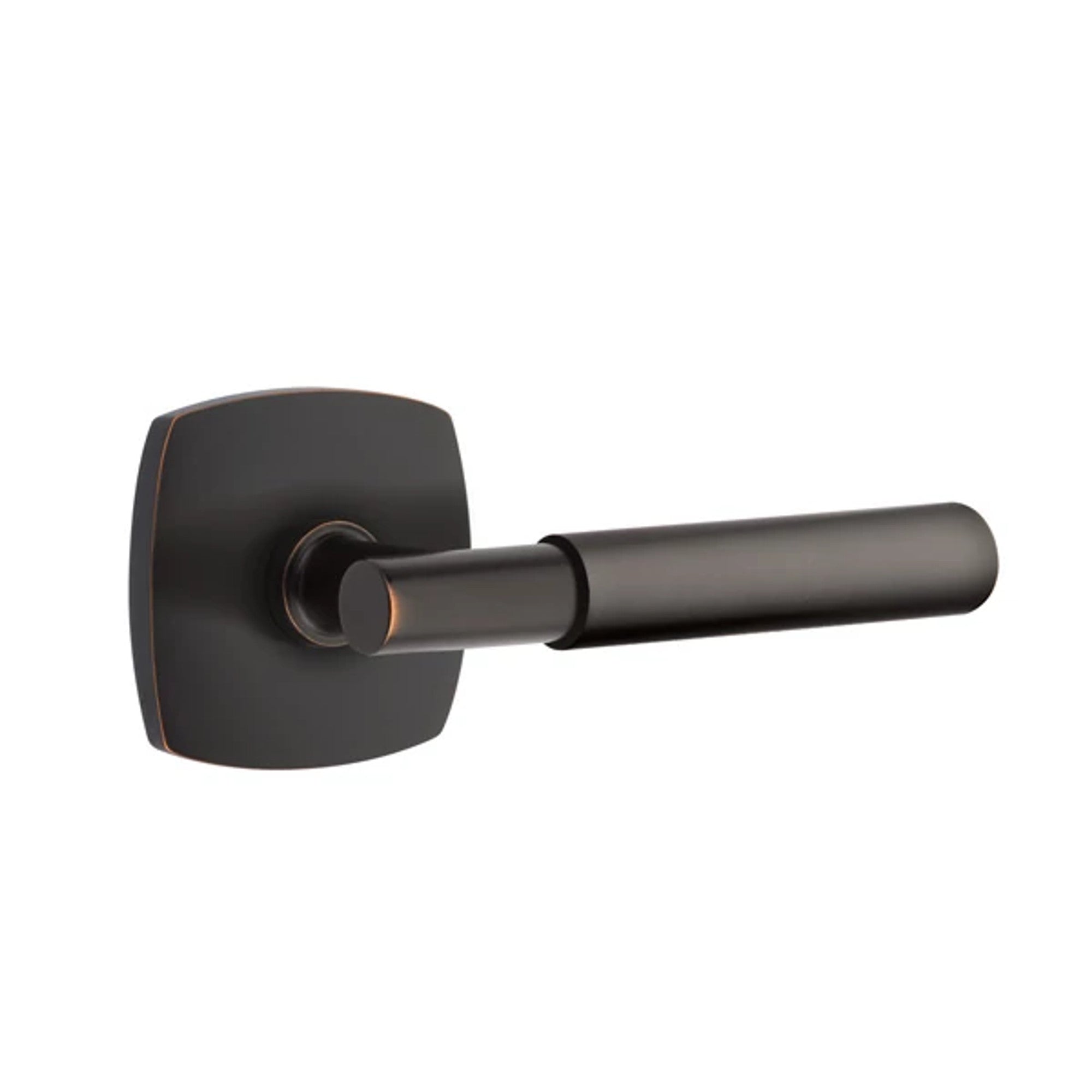

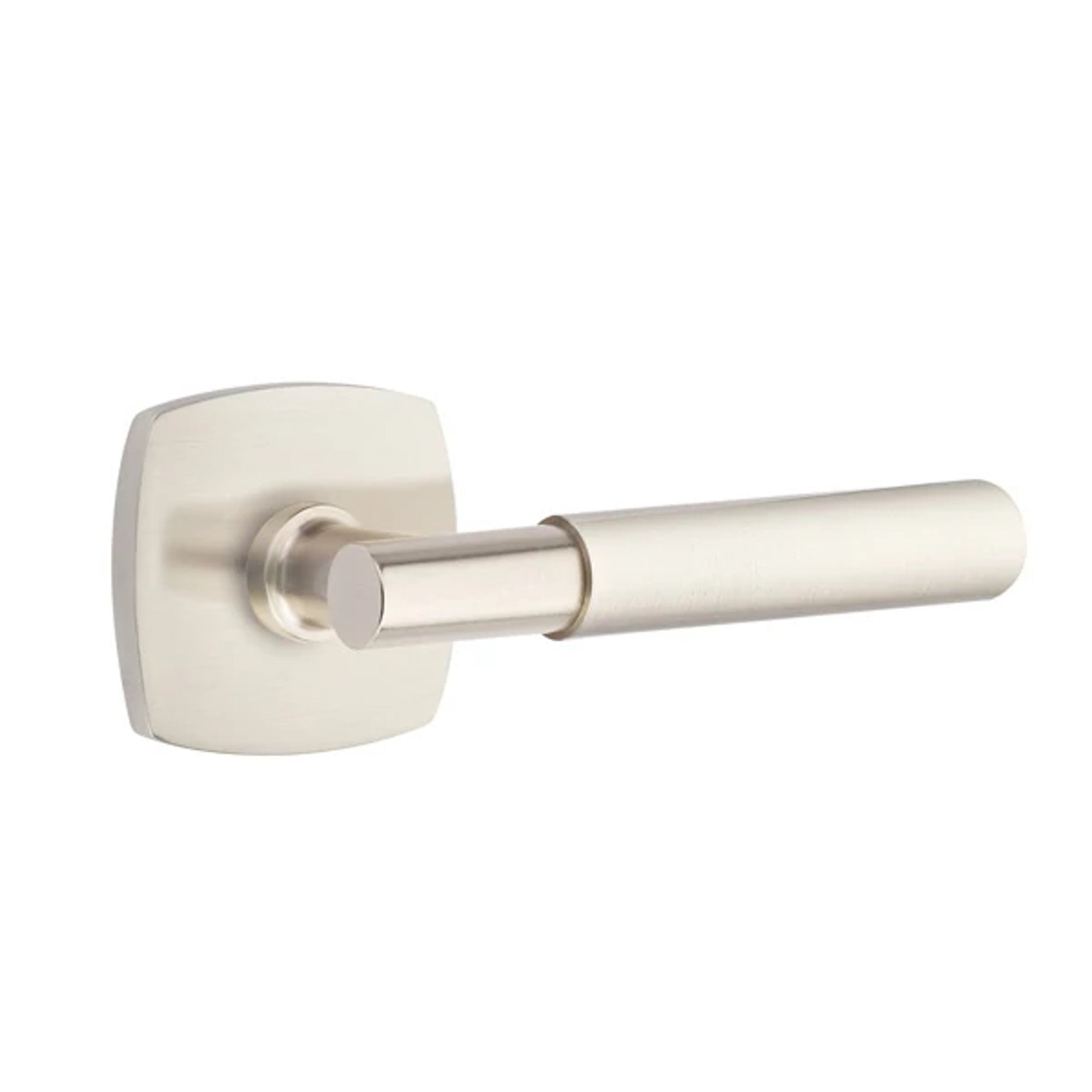

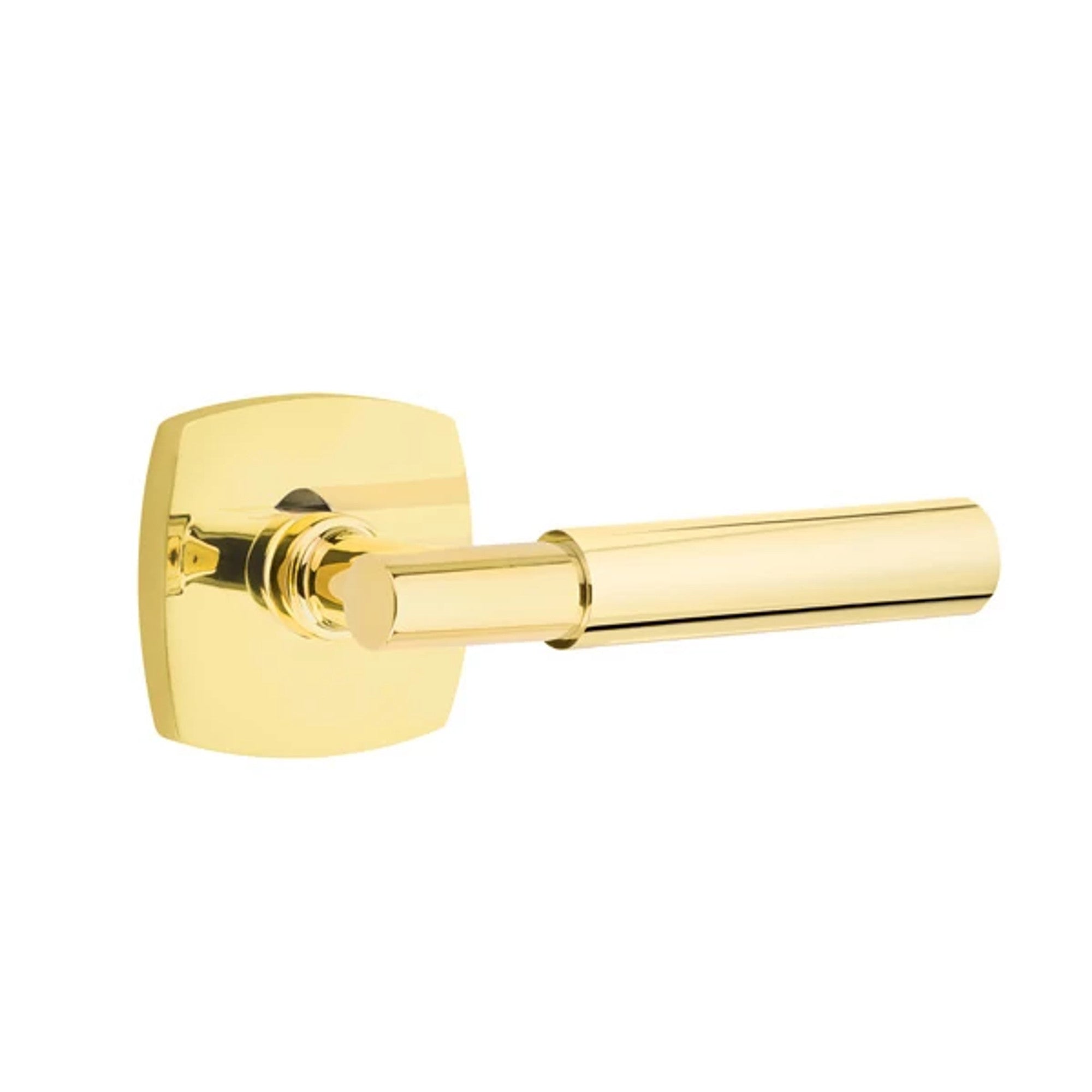

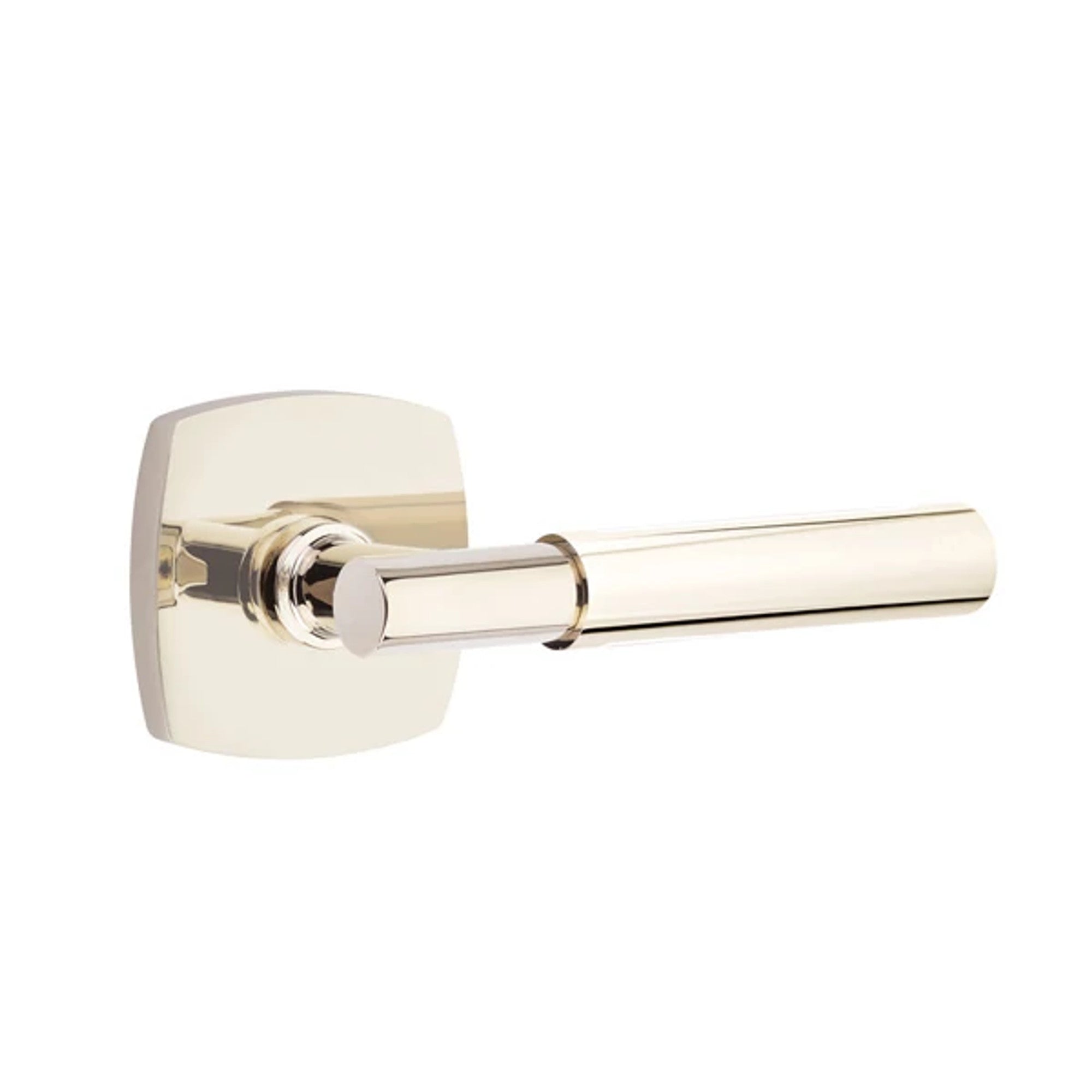

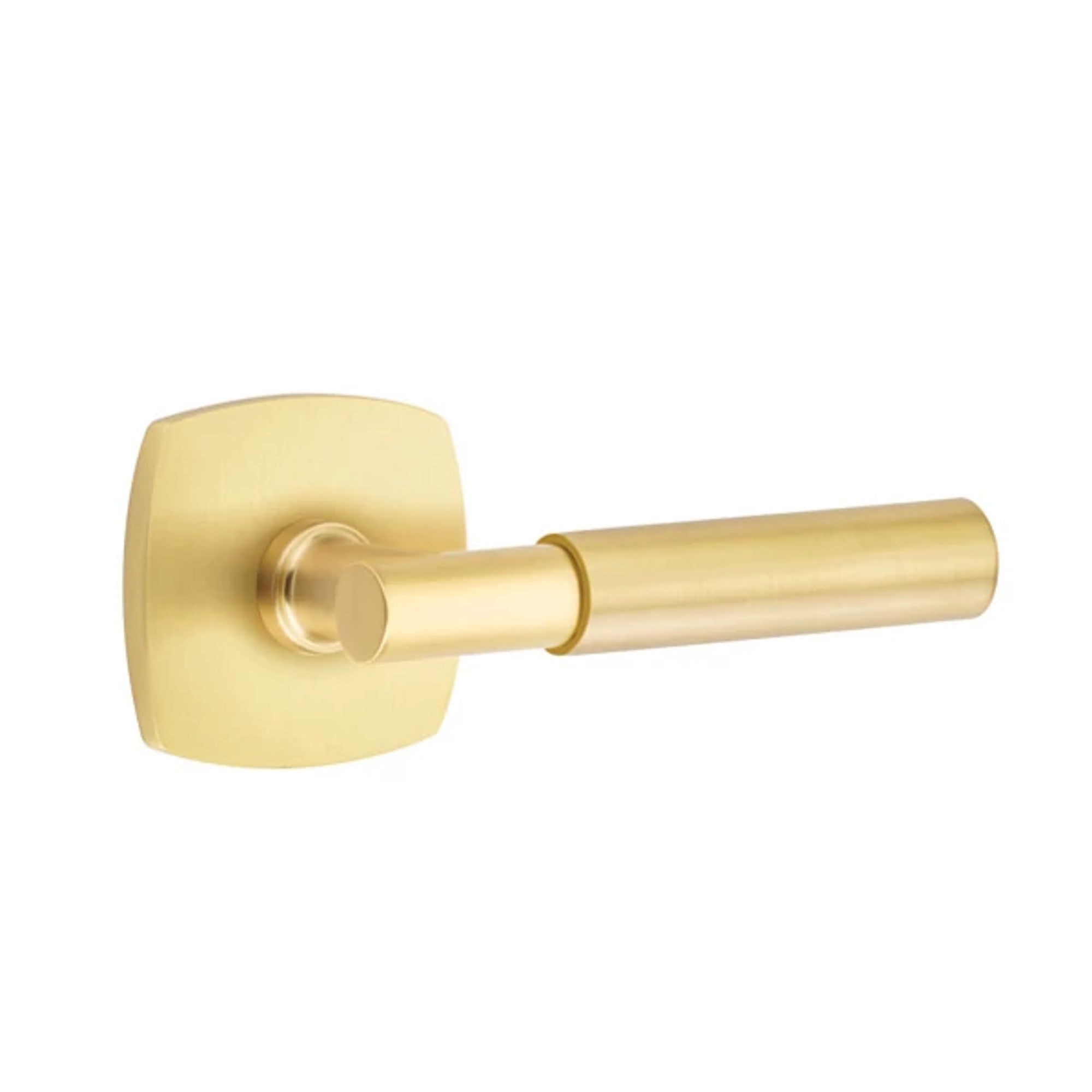

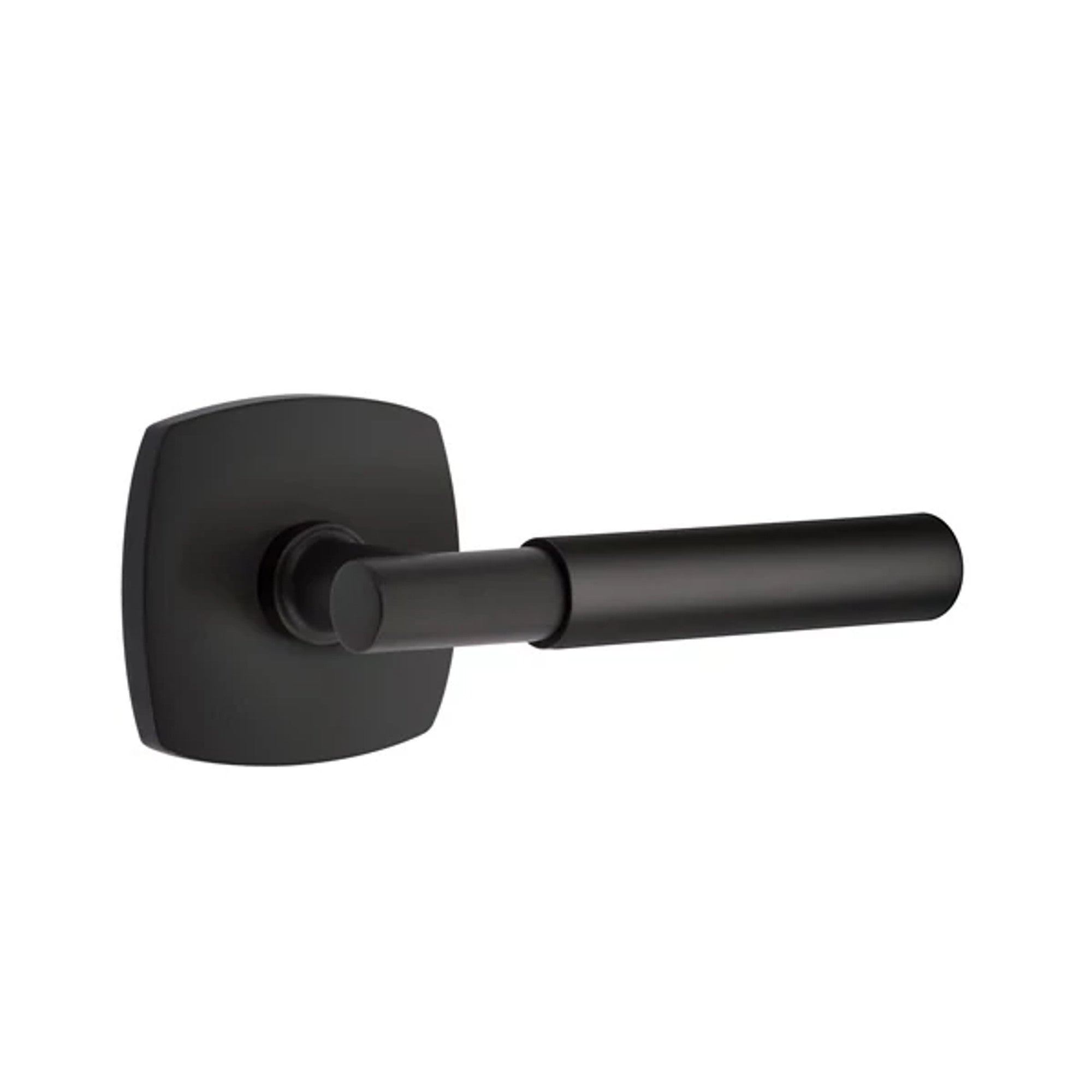

| Urban Modern Rosette | |||
| Satin Nickel | 5316MYLLHUS15 5316MYLRHUS15 |
5326MYLLHUS15 5326MYLRHUS15 |
5306MYLUS15 |
| Polished Nickel | 5316MYLLHUS14 5316MYLRHUS14 |
5326MYLLHUS14 5326MYLRHUS14 |
5306MYLUS14 |
| Polished Chrome | 5316MYLLHUS26 5316MYLRHUS26 |
5326MYLLHUS26 5326MYLRHUS26 |
5306MYLUS26 |
| Satin Brass | 5316MYLLHUS4 5316MYLRHUS4 |
5326MYLLHUS4 5326MYLRHUS4 |
5306MYLUS4 |
| Unlacquered Brass | 5316MYLLHUS3NL 5316MYLRHUS3NL |
5326MYLLHUS3NL 5326MYLRHUS3NL |
5306MYLUS3NL |
| Oil Rubbed Bronze | 5316MYLLHUS10B 5316MYLRHUS10B |
5326MYLLHUS10B 5326MYLRHUS10B |
5306MYLUS10B |
| Flat Black | 5316MYLLHUS19 5316MYLRHUS19 |
5326MYLLHUS19 5326MYLRHUS19 |
5306MYLUS19 |

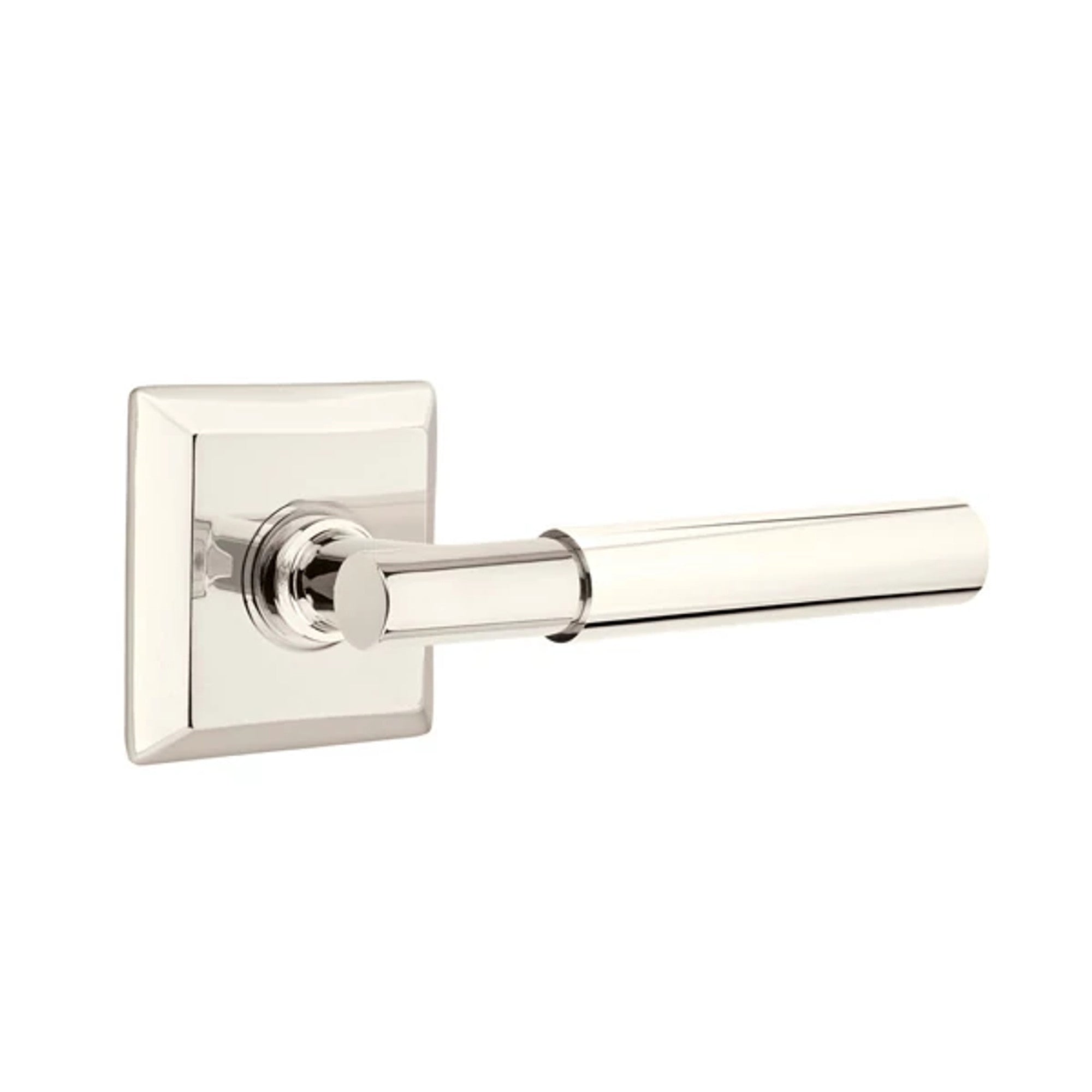

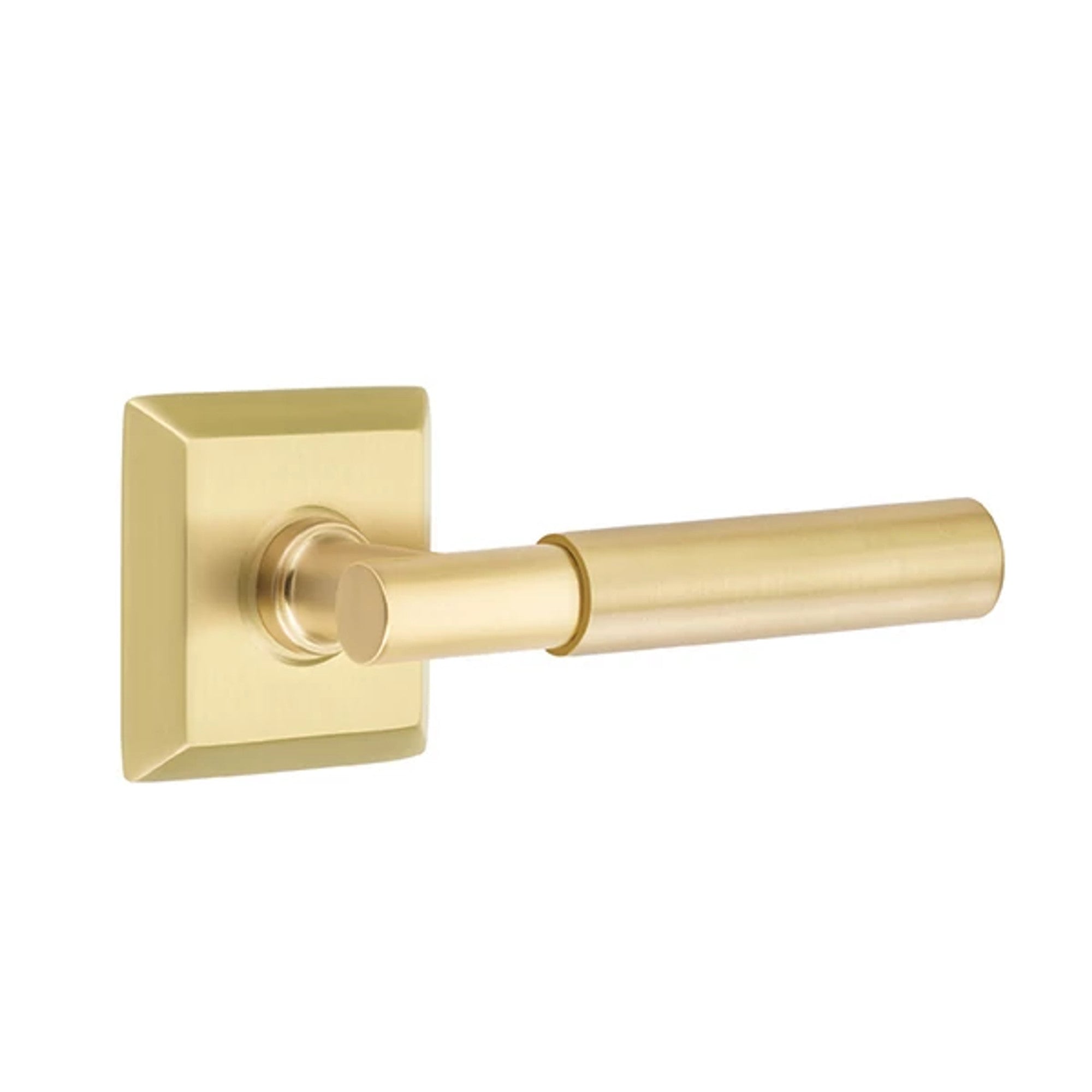

| Quincy Rosette | |||
| Polished Nickel | 8131MYLLHUS14 8131MYLRHUS14 |
8231MYLLHUS14 8231MYLRHUS14 |
8531MYLUS14 |
| Satin Brass | 8131MYLLHUS4 8131MYLRHUS4 |
8231MYLLHUS4 8231MYLRHUS4 |
8531MYLUS4 |
| Wilshire Rosette | |||

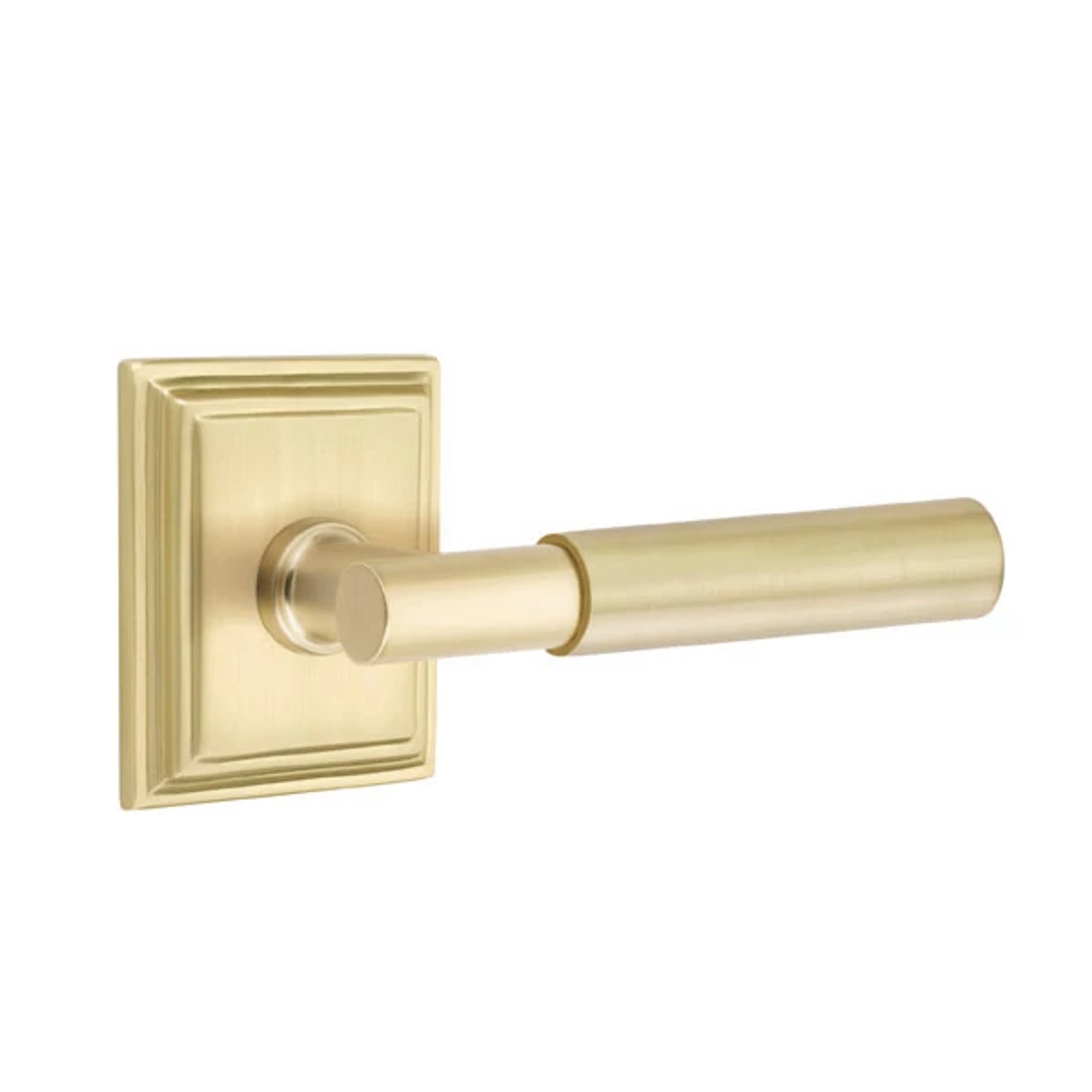

| Satin Brass | 8161MYLLHUS4 8161MYLRHUS4 |
8261MYLLHUS4 8261MYLRHUS4 |
8561MYLUS4 |
Doing a whole house? Send us your plans or door schedule and we'll build the complete list, including matching entry sets, deadbolts and cabinet hardware. Designers, builders and architects can request trade pricing through our free Pro program. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
