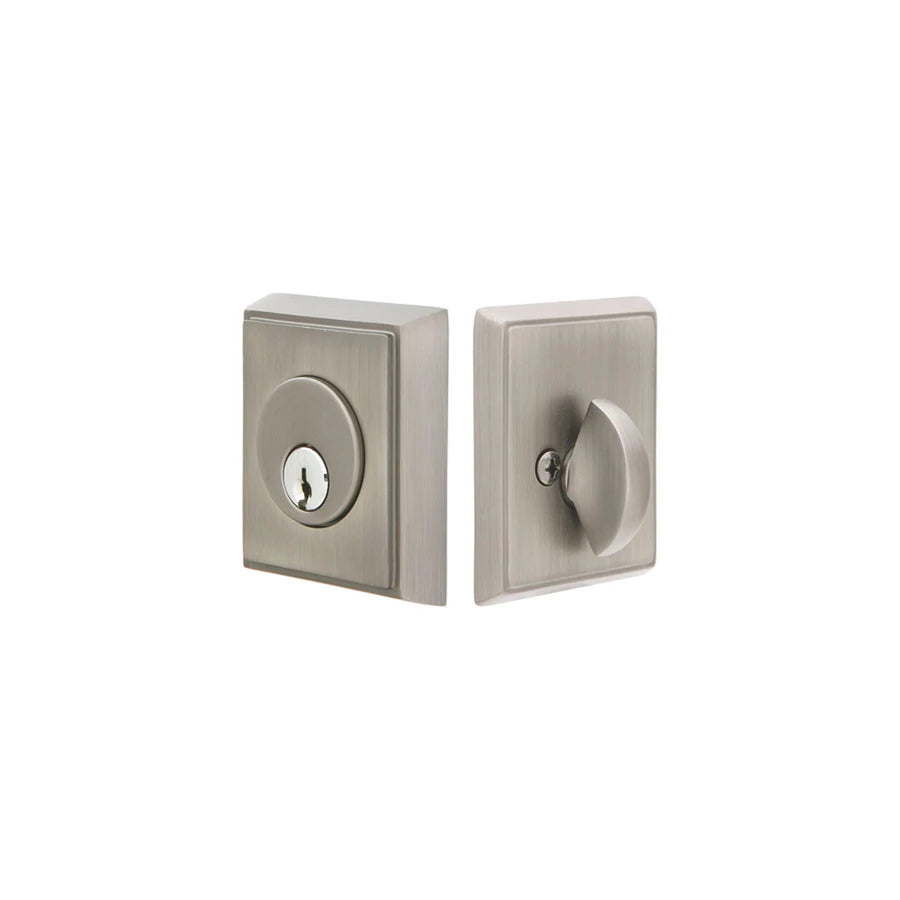

Emtek Rectangular Deadbolt

Name: Emtek Rectangular Deadbolt
Brand: Emtek

Emtek part number:

Each. Made to order by Emtek.

Keying (optional)

Key this deadbolt alike with the other Emtek locks on my order, so one key opens them all

Made to order. Lead time is typically 5 to 7 business days.
A hardware specialist reviews every order within 1 business day, before it's placed with Emtek. If anything doesn't look right, we contact you first.
Emtek hardware is made to order for your doors. Unused items in the original packaging can be returned within 30 days of delivery with a 25% restocking fee. Return shipping is paid by the customer. Installed or used items can't be returned. Need a change? Call us before we place your order with Emtek.
Questions? Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Doing a whole house? Send us your plans or door schedule and we'll build the complete list.

Specifications

Includes	Complete deadbolt with bolt and strike plate
Functions	Single cylinder: key outside, thumbturn inside. Double cylinder: key both sides. Single sided: thumbturn inside only, no key.
Door prep	Standard 2-1/8" bore
Backset	2-3/8" or 2-3/4", chosen above
Door thickness	1-3/4" standard. Other thicknesses are confirmed on a quote.
Faceplate	Square corners standard. Round corners on request.
Keyway	Schlage C standard. Weiser WR5 available.
Keyed alike	Available on request for Emtek locks on the same order

Documents

Emtek deadbolt specifications (PDF)

About this deadbolt

The Emtek Rectangular Deadbolt is a solid brass deadbolt styled to match Emtek's Rectangular door hardware, so the front door matches the rest of the house.

Which function do I need?

Single cylinder: key outside, thumbturn inside. The usual choice for a front or side door.
Double cylinder: key on both sides. Check your local code before using one on an exit door.
Single sided: thumbturn inside only, no key. For doors you only lock from inside.

Details

Material: Solid brass
Finishes: Satin Nickel, Polished Nickel, Polished Chrome, Satin Brass, Polished Brass, Unlacquered Brass, French Antique, Pewter, Oil Rubbed Bronze, Flat Black
Includes: complete deadbolt with bolt and strike plate
Door prep: standard 2-1/8" bore, 2-3/8" or 2-3/4" backset, 1-3/4" door standard
Free keying: keyed alike with your other Emtek locks on the same order, or matched to your key code

Part numbers

Finish	Single cylinder	Double cylinder	Single sided
Satin Nickel	8468US15	8368US15	8568US15
Polished Nickel	8468US14	8368US14	8568US14
Polished Chrome	8468US26	8368US26	8568US26
Satin Brass	8468US4	8368US4	8568US4
Polished Brass	8468US3	8368US3	8568US3
Unlacquered Brass	8468US3NL	8368US3NL	8568US3NL
French Antique	8468US7	8368US7	8568US7
Pewter	8468US15A	8368US15A	8568US15A
Oil Rubbed Bronze	8468US10B	8368US10B	8568US10B
Flat Black	8468US19	8368US19	8568US19

Weiser keyway versions start with a W, for example W8468US15.

Doing a whole house? Send us your plans or door schedule and we'll build the complete list, including matching knob and lever sets and entry sets. Designers, builders and architects can request trade pricing through our free Pro program. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
