Emtek Square Deadbolt

Name: Emtek Square Deadbolt
Brand: Emtek

Emtek part number:

Each. Made to order by Emtek.

Keying (optional)

Key this deadbolt alike with the other Emtek locks on my order, so one key opens them all

Made to order. Lead time is typically 5 to 7 business days.
A hardware specialist reviews every order within 1 business day, before it's placed with Emtek. If anything doesn't look right, we contact you first.
Emtek hardware is made to order for your doors. Unused items in the original packaging can be returned within 30 days of delivery with a 25% restocking fee. Return shipping is paid by the customer. Installed or used items can't be returned. Need a change? Call us before we place your order with Emtek.
Questions? Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Doing a whole house? Send us your plans or door schedule and we'll build the complete list.

Specifications

Includes	Complete deadbolt with bolt and strike plate
Functions	Single cylinder: key outside, thumbturn inside. Double cylinder: key both sides. Single sided: thumbturn inside only, no key.
Door prep	Standard 2-1/8" bore
Backset	2-3/8" or 2-3/4", chosen above
Door thickness	1-3/4" standard. Other thicknesses are confirmed on a quote.
Faceplate	Square corners standard. Round corners on request.
Keyway	Schlage C standard. Weiser WR5 available.
Keyed alike	Available on request for Emtek locks on the same order

Documents

Emtek deadbolt specifications (PDF)

About this deadbolt

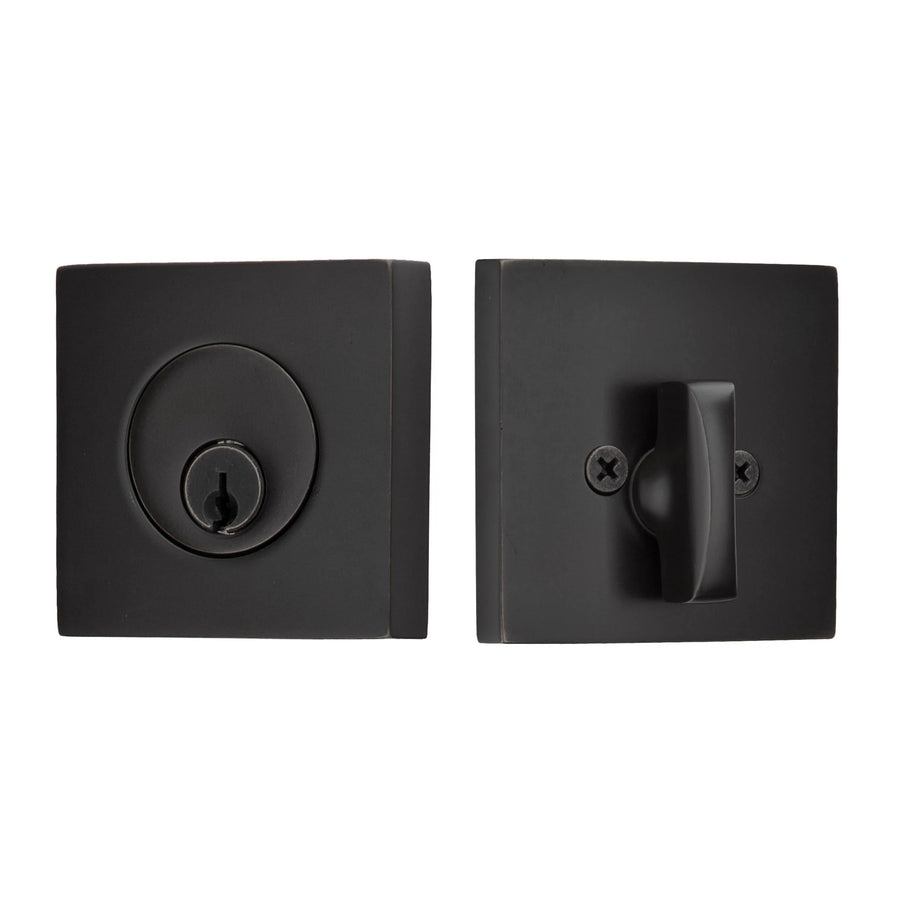

The Emtek Square deadbolt is a brass deadbolt with a square rosette and clean modern lines. It pairs with Emtek's square rosette knob and lever sets for a matching modern look.

Which function do I need?

Single cylinder: key outside, thumbturn inside. The usual choice for a front or side door.
Double cylinder: key on both sides. Check your local code before using one on an exit door.
Single sided: thumbturn inside only, no key. For doors you only lock from inside.

Details

Material: Brass
Finishes: Satin Nickel, Polished Nickel, Polished Chrome, Satin Brass, Unlacquered Brass, French Antique, Oil Rubbed Bronze, Flat Black
Includes: complete deadbolt with bolt and strike plate
Door prep: standard 2-1/8" bore, 2-3/8" or 2-3/4" backset
Keyed alike: tell us on the page and we key it to your other Emtek locks on the same order

Part numbers

Finish	Single cylinder	Double cylinder	Single sided
Satin Nickel	8469US15	8369US15	8569US15
Polished Nickel	8469US14	8369US14	8569US14
Polished Chrome	8469US26	8369US26	8569US26
Satin Brass	8469US4	8369US4	8569US4
Unlacquered Brass	8469US3NL	8369US3NL	8569US3NL
French Antique	8469US7	8369US7	8569US7
Oil Rubbed Bronze	8469US10B	8369US10B	8569US10B
Flat Black	8469US19	8369US19	8569US19

Weiser keyway versions start with a W, for example W8469US15.

Doing a whole house? Send us your plans or door schedule and we'll build the complete list, including matching knob and lever sets and entry sets. Designers, builders and architects can request trade pricing through our free Pro program. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
