Emtek Urban Modern Deadbolt

Name: Emtek Urban Modern Deadbolt
Brand: Emtek

Emtek part number:

Each. Made to order by Emtek.

Keying (optional)

Key this deadbolt alike with the other Emtek locks on my order, so one key opens them all

Made to order. Lead time is typically 5 to 7 business days.
A hardware specialist reviews every order within 1 business day, before it's placed with Emtek. If anything doesn't look right, we contact you first.
Emtek hardware is made to order for your doors. Unused items in the original packaging can be returned within 30 days of delivery with a 25% restocking fee. Return shipping is paid by the customer. Installed or used items can't be returned. Need a change? Call us before we place your order with Emtek.
Questions? Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Doing a whole house? Send us your plans or door schedule and we'll build the complete list.

Specifications

Includes	Complete deadbolt with bolt and strike plate
Functions	Single cylinder: key outside, thumbturn inside. Double cylinder: key both sides. Single sided: thumbturn inside only, no key.
Door prep	Standard 2-1/8" bore
Backset	2-3/8" or 2-3/4", chosen above
Door thickness	1-3/4" standard. Other thicknesses are confirmed on a quote.
Faceplate	Square corners standard. Round corners on request.
Keyway	Schlage C standard. Weiser WR5 available.
Keyed alike	Available on request for Emtek locks on the same order

Documents

Emtek deadbolt specifications (PDF)

About this deadbolt

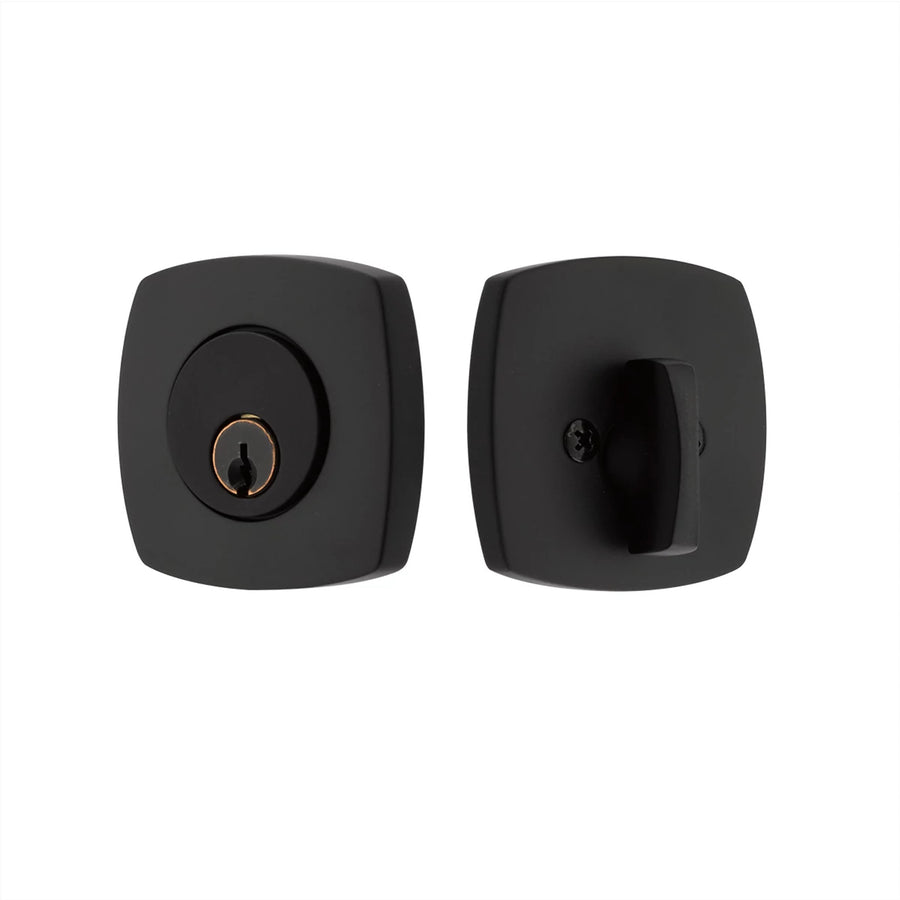

The Emtek Urban Modern Deadbolt is a solid brass deadbolt styled to match Emtek's Urban Modern door hardware, so the front door matches the rest of the house.

Which function do I need?

Single cylinder: key outside, thumbturn inside. The usual choice for a front or side door.
Double cylinder: key on both sides. Check your local code before using one on an exit door.
Single sided: thumbturn inside only, no key. For doors you only lock from inside.

Details

Material: Solid brass
Finishes: Satin Nickel, Polished Nickel, Polished Chrome, Satin Brass, Unlacquered Brass, Oil Rubbed Bronze, Flat Black
Includes: complete deadbolt with bolt and strike plate
Door prep: standard 2-1/8" bore, 2-3/8" or 2-3/4" backset, 1-3/4" door standard
Free keying: keyed alike with your other Emtek locks on the same order, or matched to your key code

Part numbers

Finish	Single cylinder	Double cylinder	Single sided
Satin Nickel	8426US15	8326US15	8580US15
Polished Nickel	8426US14	8326US14	8580US14
Polished Chrome	8426US26	8326US26	8580US26
Satin Brass	8426US4	8326US4	8580US4
Unlacquered Brass	8426US3NL	8326US3NL	8580US3NL
Oil Rubbed Bronze	8426US10B	8326US10B	8580US10B
Flat Black	8426US19	8326US19	8580US19

Weiser keyway versions start with a W, for example W8426US15.
