FSB 1070 Lever Mortise Lockset, Stainless Steel

Item # SML-C-1070-RA-6204

$782.00

QUANTITY

A hardware specialist reviews every order before it ships.
Flat rate shipping: $10 under $250, $15 on $250 and up.
Designers, builders and architects: ask about trade pricing.
Questions? Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.

FSB 1070 is a closed-return lever: a modern take on the U-shaped handle of the late 19th century. The return curls back toward the door, so it won't snag sleeves or bags, which is why you see it in schools, clinics and busy homes.

Full details and specifications

Description

FSB 1070 is a closed-return lever: a modern take on the U-shaped handle of the late 19th century. The return curls back toward the door, so it won't snag sleeves or bags, which is why you see it in schools, clinics and busy homes.

Sold as a complete FSB SML mortise lockset: FSB 1070 levers, your choice of rose or escutcheon, and the mortise lock for the function you pick.

Specifications

Lever: FSB 1070
Lever length: 5-23/32" (145 mm)
Projection: 2-7/16" (62 mm)
Lock: FSB SML standard mortise lock, 2-3/4" backset
Door thickness: 1-3/4" standard
Materials: stainless steel

Before FSB builds your set

After you order, a hardware specialist confirms door handing, backset and door thickness with you. Special backsets, thicker doors, electrified functions, keying and other trims are available by quote: use Add to Quote or call 1-800-257-9085.

Also available: this set in aluminum, and the FSB 1070 Lever Tubular Latch Set, Stainless Steel.

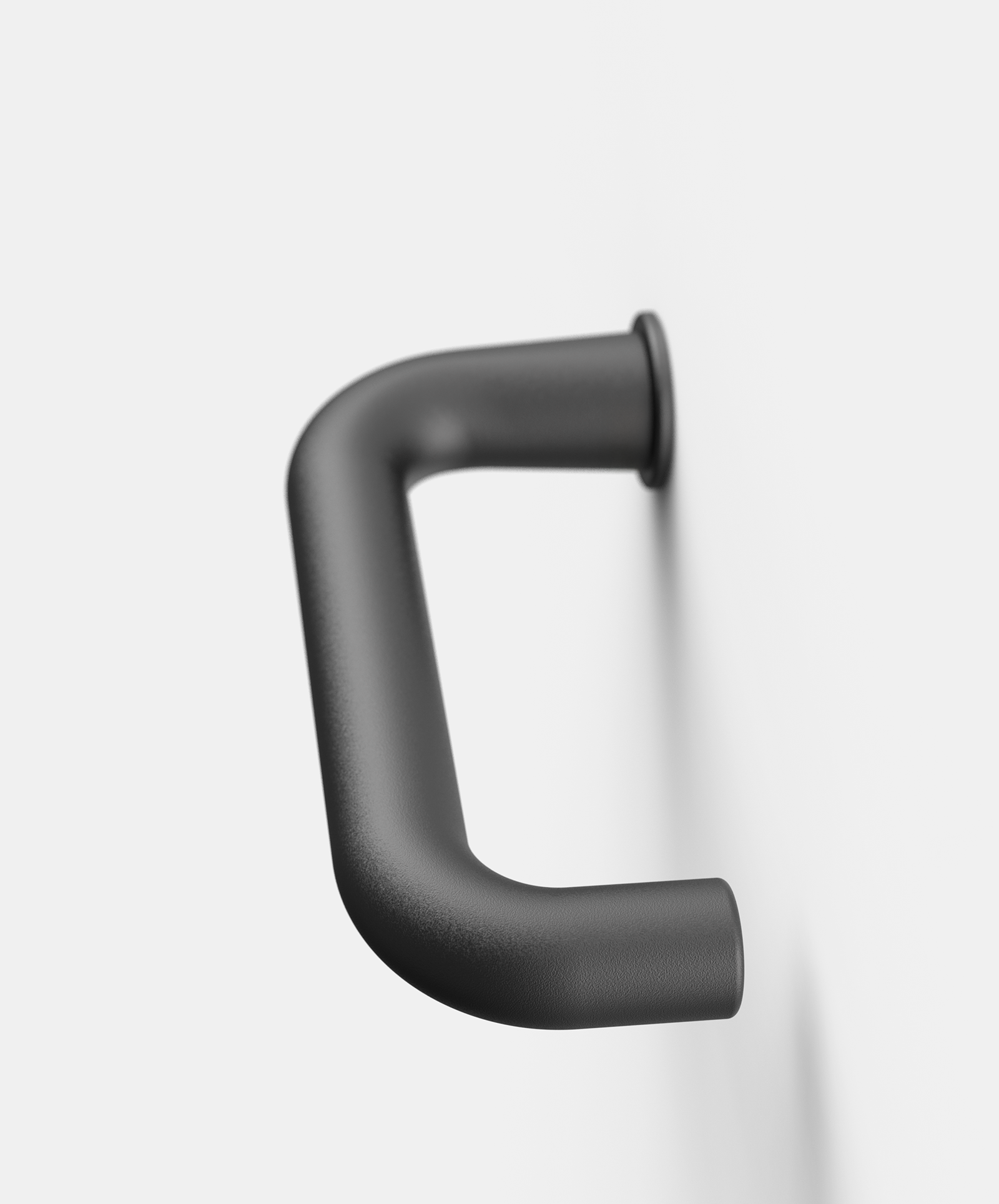

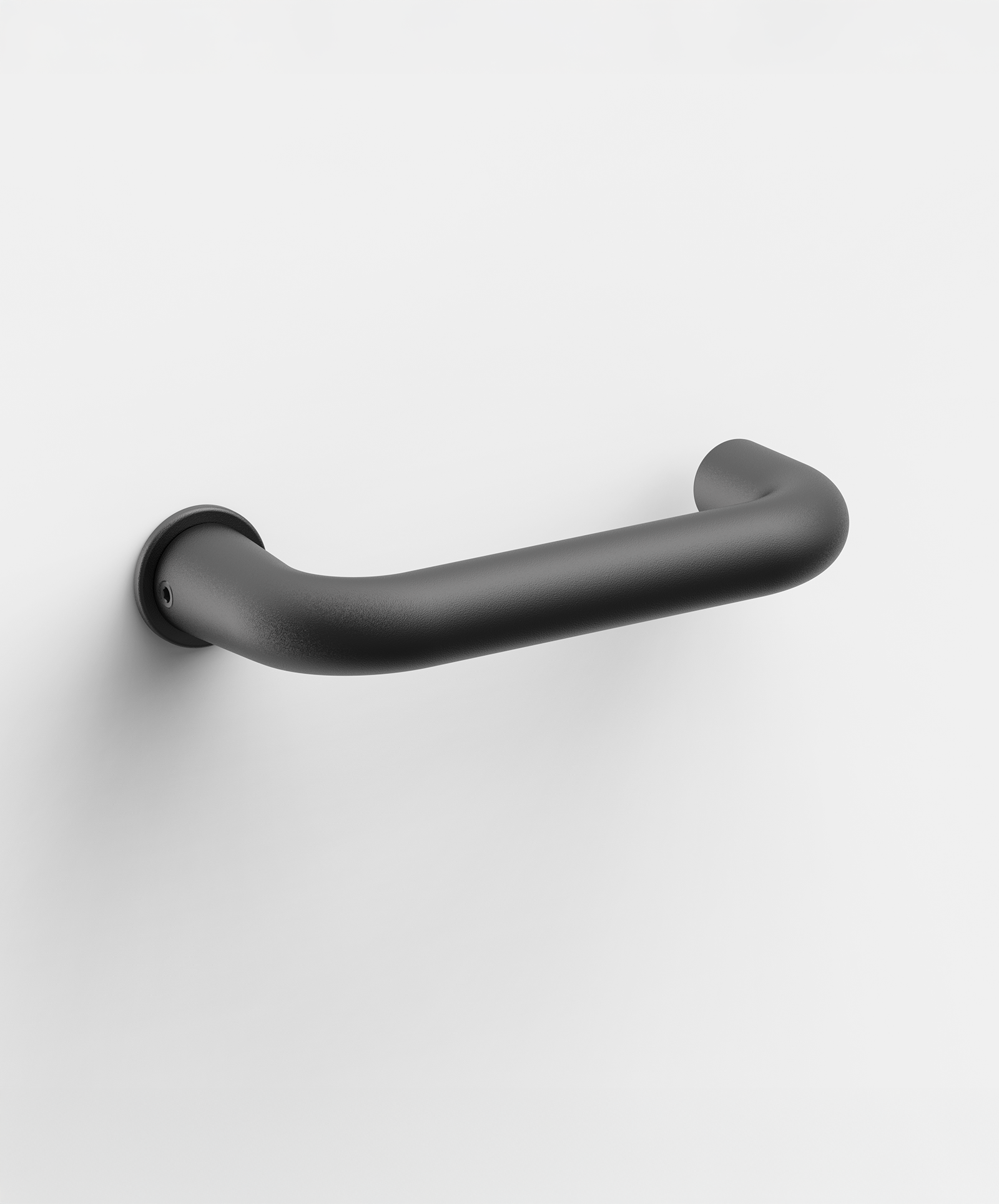

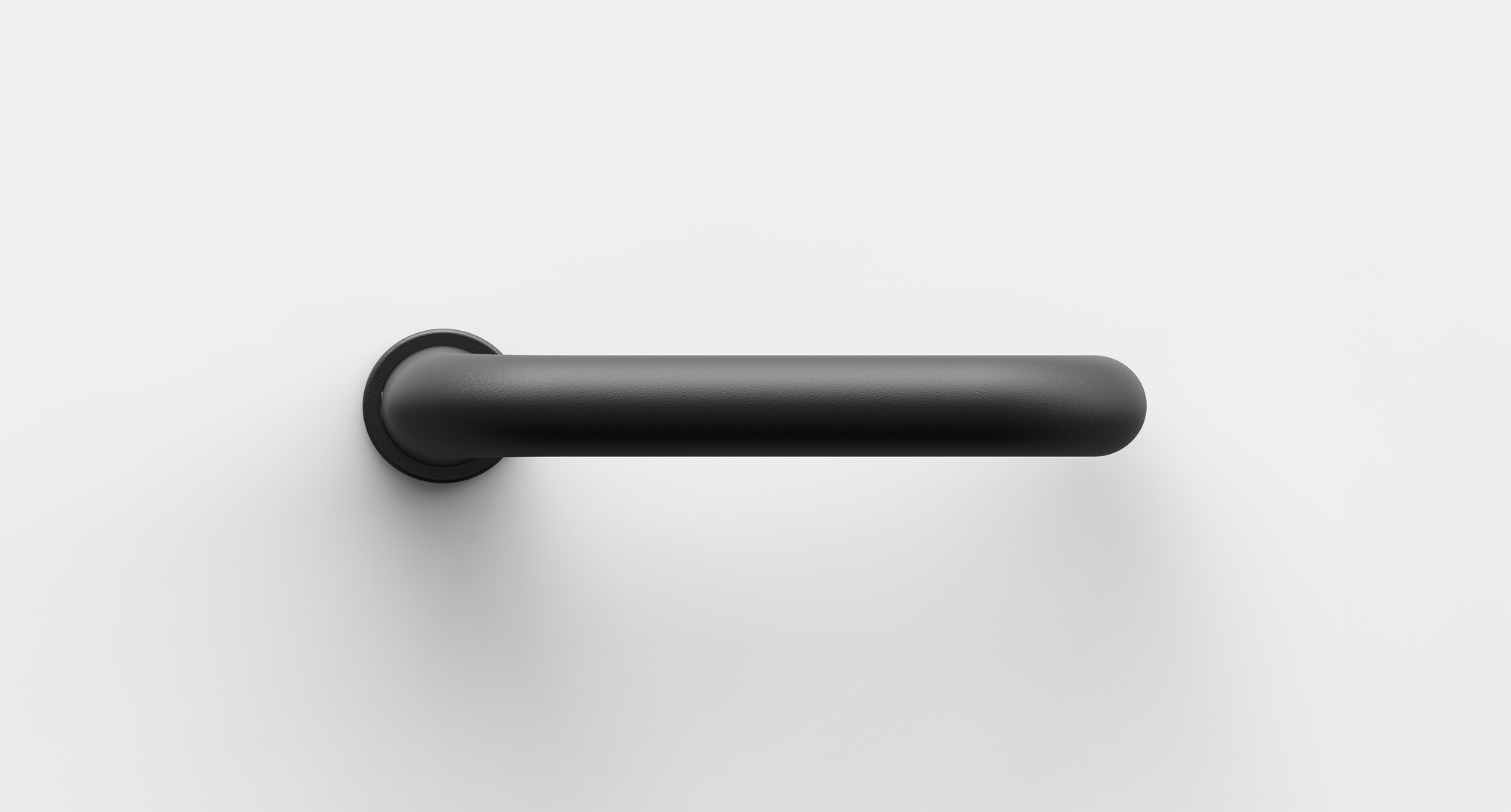

Photos show FSB 1070 in black anodized aluminum.
