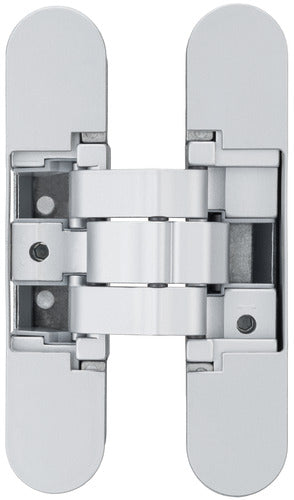

The SIMONSWERK ANSELMI AN 161 3D FVZ 14/40 is a concealed, 3D-adjustable hinge for flush residential doors with recessed frame facings, with a load capacity of 60 kg (132 lbs.). It adjusts in three directions after installation, so doors can be lined up without re-hanging them.
The number of hinges per door depends on door weight and height. Not sure what your doors need? Use Add to Quote and a hardware specialist will confirm the hinge count, finish and fixing plates before it's ordered. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Specifications
| Brand | SIMONSWERK ANSELMI |
| Model | AN 161 3D FVZ 14/40 |
| Load capacity | 60 kg (132 lbs.), per SIMONSWERK |
| Application | For flush residential doors with recessed frame facings |
| Finishes | Rustic Umber, Black, Satin Nickel Coated, RAL 9016 Traffic White, Aluminum Chrome |
| Price | Per hinge |
| Carton | Full carton is 16 hinges. SIMONSWERK adds a $50 surcharge for broken cartons. |
Part numbers
Show all 5 ANSELMI AN 161 3D FVZ 14/40 part numbers
| Rustic Umber | AN1613D1440-31 |
| Black | AN1613D1440-28 |
| Satin Nickel Coated | AN1613D1440-29 |
| RAL 9016 Traffic White | AN1613D1440-30 |
| Aluminum Chrome | AN1613D1440-27 |
Brand: SIMONSWERK. Product line: ANSELMI.
