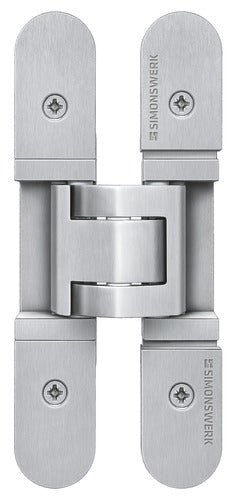

The SIMONSWERK TECTUS TE 526 3D is a completely concealed, 3D-adjustable hinge. It is made manufactured of solid stainless steel for flush commercial doors, with a load capacity of 120 kg (264 lbs.). Nothing shows on the face of the door or frame when it's closed, and the hinge adjusts in three directions after installation.
The number of hinges per door and where they go depend on door weight, height and thickness. Not sure what your doors need? Use Add to Quote and a hardware specialist will confirm the hinge count, finish and any mounting accessories before it's ordered. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Specifications
| Brand | SIMONSWERK TECTUS |
| Model | TE 526 3D |
| Load capacity | 120 kg (264 lbs.), per SIMONSWERK |
| Application | Manufactured of solid stainless steel for flush commercial doors |
| Adjustment | 3D: height, side and contact pressure |
| Finishes | Satin Stainless Steel (304 Series), Polished Stainless Steel, Marine Grade Satin Stainless Steel (316 Series). Other finishes on request. |
| Price | Per hinge |
Part numbers
Show all 3 TECTUS TE 526 3D part numbers
| Satin Stainless Steel (304 Series) | 5 400561 0 04002 |
| Polished Stainless Steel | 5 400561 0 04202 |
| Marine Grade Satin Stainless Steel (316 Series) | 5 400655 0 04302 |
Brand: SIMONSWERK. Product line: TECTUS.
