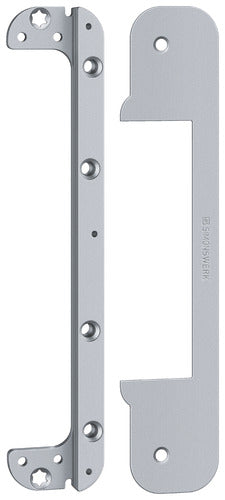

The SIMONSWERK TECTUS TE 640 3D A8 BW/1 is a set of mounting brackets that lets the TECTUS TE 640 3D A8 concealed hinge carry heavy-duty doors with claddings up to 20 mm (0.787 in.) on both sides. Cover plates are included.
Brackets, hinges and hinge count depend on the door weight, height, thickness and cladding. Not sure what your doors need? Use Add to Quote and a hardware specialist will confirm the full set before it's ordered. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Specifications
| Brand | SIMONSWERK TECTUS |
| Model | TE 640 3D A8 BW/1 |
| Use with | TECTUS TE 640 3D A8 concealed hinge |
| Application | Heavy-duty doors with claddings up to 20 mm (0.787 in.) on both sides |
| Load capacity | 120 kg (264 lbs.), per SIMONSWERK |
| Includes | Mounting brackets with cover plates |
| Finishes | Satin Chrome Look (F1), Satin Nickel Look (F2), Stainless Steel Look (SSL), Traffic White (RAL 9016), Matte Deep Black (RAL 9005), Rustic Umber, Bronze Metallic, Satin Brass, Polished Brass, Polished Nickel, Satin Nickel, Satin Chrome, Bronze Finish, Bronze Finish Light, Bronze Finish Dark |
| Price | Per bracket set |
Part numbers
Show all 15 TECTUS TE 640 3D A8 BW/1 part numbers
| Satin Chrome Look (F1) | 5 401952 0 12405 |
| Satin Nickel Look (F2) | 5 401952 0 12505 |
| Stainless Steel Look (SSL) | 5 401952 0 12605 |
| Traffic White (RAL 9016) | 5 401952 0 07005 |
| Matte Deep Black (RAL 9005) | 5 401952 0 10705 |
| Rustic Umber | 5 401952 0 15605 |
| Bronze Metallic | 5 401952 0 16805 |
| Satin Brass | 5 401952 0 04705 |
| Polished Brass | 5 401952 0 03005 |
| Polished Nickel | 5 401952 0 03805 |
| Satin Nickel | 5 401952 0 14405 |
| Satin Chrome | 5 401952 0 14605 |
| Bronze Finish | 5 401952 0 17405 |
| Bronze Finish Light | 5 401952 0 17505 |
| Bronze Finish Dark | 5 401952 0 17605 |
Brand: SIMONSWERK. Product line: TECTUS.
