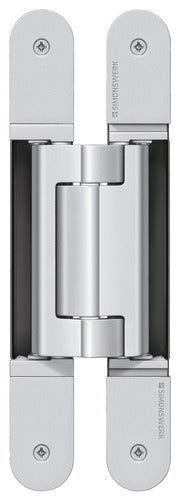

The SIMONSWERK TECTUS TE 640 3D Energy Kit pairs a concealed TECTUS Energy hinge with the cables to carry power through the hinge to the door, for electric locks, access control or lighting. Energy Kits include (1) Energy Hinge, 200 kg (440 lbs.), and (2) 3 m (118.110") Round Cables. Nothing shows on the face of the door or frame when it's closed, and the hinge adjusts in three directions after installation.
The number of hinges per door and where they go depend on door weight, height and thickness. Not sure what your doors need? Use Add to Quote and a hardware specialist will confirm the hinge count, finish and any mounting accessories before it's ordered. Call 1-800-257-9085, 9 am to 5 pm Central, Monday to Friday.
Specifications
| Brand | SIMONSWERK TECTUS |
| Model | TE 640 3D Energy Kit |
| Load capacity | 200 kg (440 lbs.), per SIMONSWERK |
| Adjustment | 3D: height, side and contact pressure |
| Finishes | Satin Chrome Look (F1), Satin Nickel Look (F2), Stainless Steel Look (SSL), Traffic White (RAL 9016), Matte Deep Black (RAL 9005), Rustic Umber, Bronze Metallic, Satin Brass, Polished Brass, Polished Nickel, Satin Nickel, Satin Chrome, Bronze Finish, Bronze Finish Light, Bronze Finish Dark. Other finishes on request. |
| Price | Per kit |
Part numbers
Show all 15 TECTUS TE 640 3D Energy Kit part numbers
| Satin Chrome Look (F1) | 7 400706 0 12401 |
| Satin Nickel Look (F2) | 7 400706 0 12501 |
| Stainless Steel Look (SSL) | 7 400706 0 12601 |
| Traffic White (RAL 9016) | 7 400706 0 07001 |
| Matte Deep Black (RAL 9005) | 7 400706 0 10701 |
| Rustic Umber | 7 400706 0 15601 |
| Bronze Metallic | 7 400706 0 16801 |
| Satin Brass | 7 400706 0 04701 |
| Polished Brass | 7 400706 0 03001 |
| Polished Nickel | 7 400706 0 03801 |
| Satin Nickel | 7 400706 0 14401 |
| Satin Chrome | 7 400706 0 14601 |
| Bronze Finish | 7 400706 0 17401 |
| Bronze Finish Light | 7 400706 0 17501 |
| Bronze Finish Dark | 7 400706 0 17601 |
Brand: SIMONSWERK. Product line: TECTUS.
